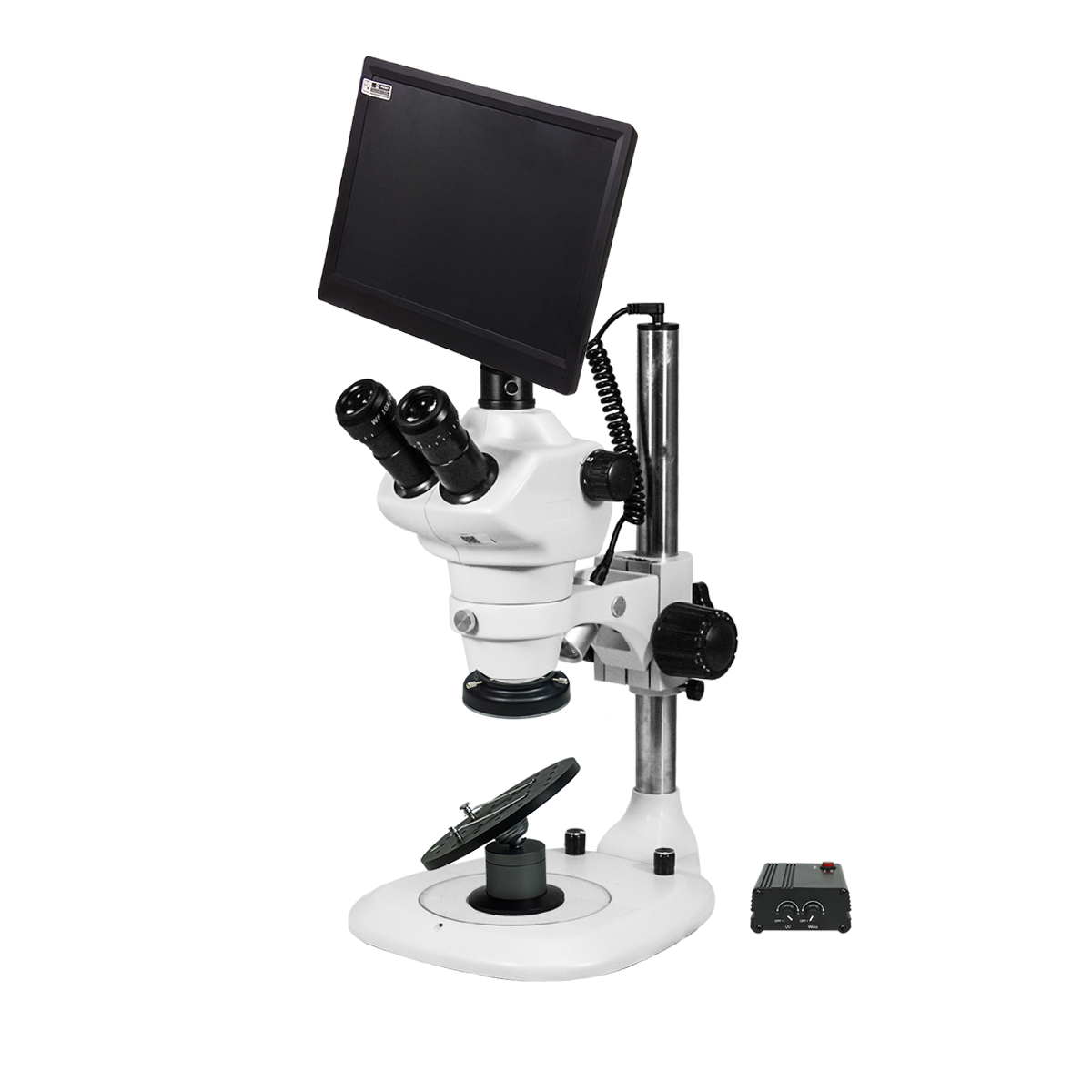

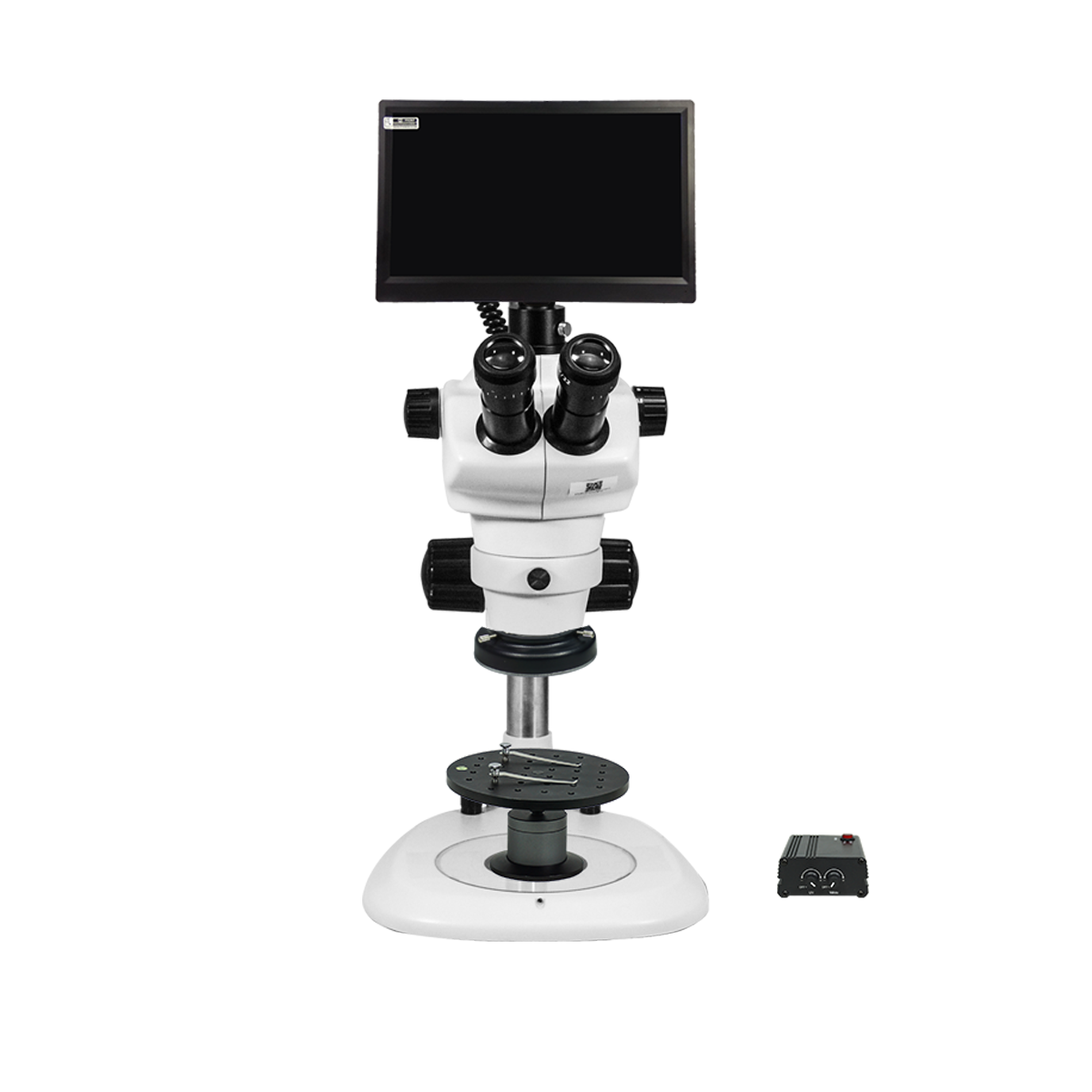

4-200X 5.0 Megapixels CMOS LED Light Post Stand LED Dual Illuminated Light Trinocular Zoom Stereo Microscope, SKU SZ02030234, three quarter front view

4-200X 5.0 Megapixels CMOS LED Light Post Stand LED Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02030234

Name: 4-200X 5.0 Megapixels CMOS LED Light Post Stand LED Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02030234
Brand: BoliOptics
SKU: SZ02030234
Price: 4848.72 USD
Availability: InStock

$4,848.72

Shipping calculated at checkout.

SKU: SZ02030234

Condition: New
Warranty: 5/1 Years
Certification:

Technical Overview
Finite. Total Magnification: 4-200X. 10/15/20X Adjustable Eyepiece, 10/15/20X Reticle Adjustable Eyepiece. 0.5/0.7/2X Objective. Standard Coupler: 0.4X. Zoom Ratio: 1:6.3. Trinocular. Body Mounting Size for Stand: Dia. 76mm. Magnification Detent : 1X per pre-set stop. Eye Tube Angle: 45°. Eyepiece Field of View: Dia. 12.5mm. Eyepiece Field of View: Dia. 16mm. Eyepiece Field of View: Dia. 22mm. Post Stand. Illumination Type: LED Dual Illuminated Light . Top Illumination: Oblique Top Light. LED Light. Light Adjustable. CMOS. 5.0 Megapixels. HDMI / USB 2.0 / Wi-Fi. Windows XP/Vista/7/8/10/11/OSX/Linux 2.6 and above. Screen Size: 11.6in. Input Voltage: AC 100-240V 50/60Hz. Input Voltage: AC 90-260V 47-63Hz. Input Voltage: DC 12V. 39pcs@UV-LED+39pcs@White.

Low Stock (4)

Product variants

4-200X 5.0 Megapixels CMOS LED Light Post Stand LED Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02030234

$4,848.72

Order before 12pm PT for same day shipping

5/1 Years Warranty Policy

Return Policy

*Same day shipping is only for items that are in stock

BoliOptics offers World Wide Shipping (We are Based in California, USA)

Shipping Methods
We ship packages using UPS and FedEx. Your order will be shipped per your specified shipping method at check out.

Expedited Shipping
For all expedited shipping services, such as Overnight, Next Day, etc - While we will do our part to ensure the packages are received by the shipping carriers to meet the shipping cut off times, please note that once the package leaves our warehouse, we are no longer responsible for the package. The shipping carrier will be responsible for delivering your package.

Shipping Costs
Your order will be shipped per your selected shipping method, and the shipping fee will be added to your order/invoice. Shipping costs are provided by the shipping carriers and calculated based on shipping location, product dimensions and weight.

Using Your Own Shipping Account
Please input your shipping account number at checkout, if you wish for us to charge the shipping fee to your shipping account. Otherwise, we will ship the product using our shipping account and charge the shipping fee to your invoice.

You may require us to insure packages when shipping under your shipping account. Please note this on your Purchase Order. If packages are shipped using your Shipping Account, and you choose to not insure the packages, or there are no insurance instructions stated on the PO, it is not the responsibility of BoliOptics to pay for any packages that are stolen, or lost/delivered wrong/damaged in transit by the Shipping Carrier.

International Shipping
We offer world wide international shipping. Please specify your desired shipping service at checkout.

SHIPPING & DELIVERY FAQs

When will my order ship?
If the product you purchased is in stock, orders placed online before 12PM (Noon) PST will be shipped on the same business day. Orders placed after 12PM (Noon) will be shipped the following business day.

To ensure your order is shipped as soon as possible and successfully, please check that your shipping address is correct.

Orders placed on the weekend (Saturday and Sunday) and Federal Holidays will be processed on the following business day.

When will Pre-Orders ship?
To get an expected shipping date for pre-orders, please send an email to sales@bolioptics.com

How can I track my order?
We will e-mail you an Order Confirmation once the order has been processed, along with your tracking number.
You can also log into 'My Account' to check the status of orders placed online.

How can I cancel my order before it ships?
If you need to cancel your order, please send an email to sales@bolioptics.com as soon as possible with the Subject Line: CANCEL ORDER # (Your Order #).

Once your order has shipped, meaning you will have received an email with a Status Update that your order has Shipped along with your tracking number, we are unable to cancel your order. You may start a Return once you receive the package.

BoliOptics is not responsible for any damages or delays that may occur while packages are in transit with the shipping carriers. We are not responsible for packages that are lost or delivered to the wrong address by the shipping carrier. We are not responsible for stolen packages.

You are responsible for filing any claims with Shipping Carriers if the order was shipped using your account.

Industry Leading Warranties

BoliOptics microscopes and accessories are manufactured under the strict guidelines established by ISO 9001, ISO13485, ISO14001, or CE (marked per product).

Warranty is only offered for products purchased directly from BoliOptics.

BoliOptics products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:

Lifetime Warranty
Designated products marked lifetime warranty.

5 Year Warranty
Microscopes (except video and digital microscopes) come with a five (5) year factory warranty against manufacturing defects.

5/1 Year Warranty
Products with 5/1 Year Warranty means that the hardware of the microscope is under 5 year warranty, and the electrical and lighting components are under 1 year warranty.

1 Year Warranty
Includes video microscopes, digital microscopes, electrical and electronic products such as light sources, cameras, software, monitors, and electronic components.
Microscope accessories (such as microscope cameras and illuminators) come with a one (1) year warranty, except when specified in the description.

Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc.

Warranty does not cover ordinary wear and tear or damage caused by improper use or accidents (drops).
Warranty does not cover products that have become inoperable due to lack of maintenance.
Warranty is void when products are disassembled, structural parts were opened up, removed, unscrewed, tampered with, or broken during use or in the user's possession.
Warranty is void when product QR Codes or Barcode Stickers containing the Product's Serial Number are removed from the product.

Customers are responsible for round-way shipping for warranty services.

*Please note that we do not perform repairs. If you would like a repair, we can recommend you to third party microscope service and repair companies.*

Warranty Instructions

Please see the Reasons for Warranty:

A. If the reason is due to ordinary wear and tear, damage caused by improper use or accidents (drops), damage due to lack of maintenance, or that the product was disassembled, structural parts were opened up, removed, unscrewed, tampered with, or that the product was broken during use or in the user's possession, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

B. If the time frame is outside of the warranty period, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

C. If the reason is due to manufacturing defects, and the product is within the warranty period,
Email us at sales@bolioptics.com with the following details:
- Your name
- The SKU # of the product
- Photos of the product from the front, sides, and back
- Photo of the serial number on the product, if present

BoliOptics offers a thirty (30) day return window beginning on the date of your purchase.

To receive a 100% refund, items must be returned in New and Original Condition, with all parts, accessories, and original product packaging included.

Products missing the original packaging or instruction manuals are subject to a 20% restocking fee.
Products missing parts or accessories are subject to a higher restocking fee.
Products damaged during use (scratched, chipped, parts broken), disassembled from the original manufacturing or tampered with, are not accepted for returns or refunds. Our return policy does not cover ordinary wear and tear or damage caused by improper use or accidents.
Microscope slides, coverslips, and eye guards are non-returnable.
Items marked "Final Sale" are not eligible for return or refund due to change of mind. We are committed to ensuring the quality of all our products. If you receive a final sale item that has an issue, please contact us as soon as possible, and we will resolve any issue on a case by case basis.

When packaging the return, protect the item and original packaging.

We recommend using the original packaging materials to ensure the product is safe during return shipping.
If you do not have the original packaging materials, and there is extra room in the box, fill the extra space with padding (paper or shipping peanuts) so the product won't move around during transportation.

Customers are responsible for the return shipping label cost, if the product was not defective.

It can take up to 7 business days for an item to reach us once you ship it. Once we receive the item, it takes 5-7 business days to process the return and refund.

If you have any questions, please an email us at sales@bolioptics.com

To Start a Return

1. Sign in to your account or Create An Account.

2. Once you are signed in to your account, click the "Start a Return" link below to submit your return request.

3. Once your return request is approved, we will email you with your Return Merchandise Authorization Number (RMA#) and return instructions.

Optional Accessories

Compatible with this product

WF 15X Widefield Focusable Microscope Eyepieces, High Eyepoint, 30mm, FOV 16mm, Adjustable Diopter (Pair), SKU SZ17013421, three quarter front view

WF 15X Widefield Focusable Microscope Eyepieces, High Eyepoint, 30mm, FOV 16mm, Adjustable Diopter (Pair) SZ17013421 $112.98

In stock

Optical System	Finite
System Optical Magnification	4-200X
Trinocular Optical Magnification	0.16-4X
Total Magnification	4-200X
Standard Eyepiece	10/15/20X Adjustable Eyepiece, 10/15/20X Reticle Adjustable Eyepiece
Standard Objective	0.5/0.7/2X Objective
Standard Coupler	0.4X
System Field of View	Dia. 1-50mm
System Working Distance	45mm/115mm/150mm/220mm

20/80 True-Trinocular Zoom Body
Body Optical System	Finite
Body Magnification	8-50X
Zoom Range	0.8-5X
Zoom Ratio	1:6.3
Zoom Operating Mode	With Two Horizontal Knobs
Observation Method	Trinocular
Body Mounting Size for Stand	Dia. 76mm
Magnification Detent	1X per pre-set stop
Body Mount Type for Coupler	Thread Screw
Body Mount Size for Coupler	Dia. 26mm
Nosepiece Adapter Size for Ring Light	Dia. 60mm
Eye Tube Adjustment Mode	Compensating
Eye Tube Angle	45°
Erect/Inverted Image	Erect image
Eye Tube Rotatable	360° Degree Rotatable
Interpupillary Adjustment	52-75mm
Eye Tube Inner Diameter	Dia. 30mm
Eye Tube Fixing Mode	Elastic Tube locking
Image Port Switch Mode	20/80 True-Trinocular
Eyepiece Type	Adjustable Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 22mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 27mm
Eyepiece Diopter Correction	±5°
Built-in Objective Magnification	1X
Objective Working Distance	115mm
Objective Screw Thread	M55x0.75mm
Surface Treatment	Spray Paint
Material	Metal
Color	White
Net Weight	1.72kg (3.79lbs)

10X Reticle Adjustable Eyepiece ( Dia. 30/FN22)
Eyepiece Type	Reticle Adjustable Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 22mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 27mm
Eyepiece Diopter Correction	±5°
Reticle Type	Crosshair Scale
Reticle Dimensions	Dia. 27x1.5mm
Scale Range	10mm/100 Div
Division Value	0.1mm
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.07kg (0.15lbs)
Applied Field	For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes
15X Adjustable Eyepiece (Pair Dia. 30/FN16)
Eyepiece Type	Adjustable Eyepiece
Eyepiece Optical Magnification	15X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 16mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 19mm
Eyepiece Diopter Correction	±5°
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.11kg (0.24lbs)
Applied Field	For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes
15X Reticle Adjustable Eyepiece ( Dia. 30/FN16)
Eyepiece Type	Reticle Adjustable Eyepiece
Eyepiece Optical Magnification	15X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 16mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 19mm
Eyepiece Diopter Correction	±5°
Reticle Type	X-Axis Crosshair Scale
Reticle Dimensions	Dia. 19x1.5mm
Scale Range	10mm/100 Div
Division Value	0.1mm
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.05kg (0.11lbs)
Applied Field	For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes
20X Adjustable Eyepiece (Pair Dia. 30/FN12.5)
Eyepiece Type	Adjustable Eyepiece
Eyepiece Optical Magnification	20X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 12.5mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 19mm
Eyepiece Diopter Correction	±5°
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.11kg (0.24lbs)
Applied Field	For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes
20X Reticle Adjustable Eyepiece ( Dia. 30/FN12.5)
Eyepiece Type	Reticle Adjustable Eyepiece
Eyepiece Optical Magnification	20X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 12.5mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 19mm
Eyepiece Diopter Correction	±5°
Reticle Type	X-Axis Crosshair Scale
Reticle Dimensions	Dia. 19x1.5mm
Scale Range	10mm/100 Div
Division Value	0.1mm
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.11kg (0.24lbs)
Applied Field	For SZ1701, Nkon SMZ645 Series, Olympus SZ61 Stereo Microscopes

0.5X Auxiliary Objective
Objective Optical System	Finite
Objective Optical Magnification	0.5X
Objective Type	Achromatic Objective
Objective Working Distance	220mm
Objective Screw Thread	M55x0.75mm
Objective Outer Diameter	Dia. 60mm
Barlow Lens	Yes
Surface Treatment	Polished Chrome
Material	Metal
Color	Silver
Net Weight	0.10kg (0.22lbs)
Applied Field	For SZ1701, Nkon SMZ745, SMZ645 Series Stereo Microscopes
0.7X Auxiliary Objective
Objective Optical System	Finite
Objective Optical Magnification	0.7X
Objective Type	Achromatic Objective
Objective Working Distance	150mm
Objective Screw Thread	M55x0.75mm
Objective Outer Diameter	Dia. 60mm
Barlow Lens	Yes
Surface Treatment	Black Oxide Finish
Material	Metal
Color	White
Applied Field	For SZ1701, Nkon SMZ745, SMZ645 Series Stereo Microscopes
2X Auxiliary Objective
Objective Optical System	Finite
Objective Optical Magnification	2X
Objective Type	Achromatic Objective
Objective Working Distance	45mm
Objective Screw Thread	M55x0.75mm
Objective Outer Diameter	Dia. 60mm
Barlow Lens	Yes
Surface Treatment	Polished Chrome
Material	Metal
Color	Silver
Net Weight	0.10kg (0.22lbs)
Applied Field	For SZ1701, Nkon SMZ745, SMZ645 Series Stereo Microscopes

76mm LED Illuminated Post Stand
Stand Type	Post Stand
Holder Adapter Type	Dia. 76mm Scope Holder
Vertical Post Height	385mm
Vertical Post Diameter	Dia. 32mm
Base Type	Illumination Base
Base Shape	Fan-Shape
Base Dimensions	240x285x30mm
Focus Mode	Manual
Coarse/Fine Focus Type	Coarse Focus
Focus Distance	50mm
Coarse Focus Distance per Rotation	22mm
Focusing Knob Tightness Adjustable	Tightness Adjustable
Center Distance from Hole to Scope Holder	170mm
Illumination Type	LED Dual Illuminated Light
Top Illumination	Oblique Top Light
Top Illumination Type	LED
Bottom Illumination Type	LED
Input Voltage	AC 90-260V 47-63Hz
Power Cord Connector Type	USA 3 Pins
Power Cable Length	1.8m
Surface Treatment	Spray Paint
Material	Metal
Color	White
Net Weight	3.05kg (6.72lbs)
Dimensions	240x285x425mm (9.449x11.22x16.732 in. )

140x6mm Clear Glass Plate
Plate Type	Clear Glass Plate
Plate Size	Dia. 140x6mm
Material	Clear Float Glass
Net Weight	0.12kg (0.26lbs)
Applied Field	For ST1703 Series Track Stand

Level Adjustable Stage
Mounting Holes Position	25x25mm
Mounting Hole Dimensions	M6
Stage Height	100mm
Tilt Stage Diameter	180mm
Tilt Stage Bottom Mount Size	Dia. 95mm
Stage Inclination Range	0-45° Inclined within the Range of 360°
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	1.68kg (3.70lbs)

UV LED Ring Light (5W ID70mm 78Bulbs)
Light Source Type	LED Light
Ring I.D. Size	Dia. 70mm
LED Quantity	78
Power Supply Adjustable	Light Adjustable
Power Box Panel Meter Display	Pointer Panel Meter/Scale
Power Box Cooling System	Heat Sink
Power Box Dimensions	122x96x43mm
Bulb Color Temperature	6400K
Bulb Color (Wavelength)	UV (365nm)+White
Output Power	2.5Wx2
Input Voltage	AC 100-240V 50/60Hz
Output Voltage	DC 5V
Power Cord Connector Type	USA 2 Pins
Power Cable Length	1.5m
Material	Plastic
Color	Black
Net Weight	0.54kg (1.19lbs)
Screw Model	M4x24mm
Notes	39pcs@UV-LED+39pcs@White

0.4X Coupler
Coupler Mount Type for Trinocular	Thread Screw
Coupler Mount Size for Trinocular	Dia. 26mm
Adjustable Coupler	Adjustable
Coupler for Microscope Type	Stereo Compatible
Coupler Magnification	0.4X
For Camera Sensor Size	Under 2/3 in.
C/CS-Mount Coupler	C-Mount
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.06kg (0.13lbs)
Applied Field	For SZ17011141, SZ17011142 Trinocular Zoom Body

11.6 in. LCD Display Digital Camera
Image Sensor	CMOS
Image Sensor Size	1/1.8 in.
Image Sensor Diagonal size	8.933mm (0.352 in. )
Pixel Size	2.4x2.4μm
Camera Maximum Pixels	5.0 Megapixels
Camera Resolution	2592x1944
Camera Signal Output Port	HDMI / USB 2.0 / Wi-Fi
Camera Lens Mount	C-Mount
Transmission Frame Rate	60fps@1920x1080(HDMI), 25fps@1920x1080(WIFI)
White Balance	Auto
Sensitivity	1.12V/lux-sec@550nm
Gain Control	Adjustable
Exposure Control	Manual/Auto
Image Freeze Function	Image Freeze
Digital Zoom Function	4X
Camera Crosshairs	Cross Line
Number of Crosshairs	10 Movable Crosshairs
Line Color	User Defined
Capture Function	Yes
Image Capture Output Format	JPEG
Video Output Format	ASF
Language	English/French/Spanish/German/Italian/Simplified Chinese/Traditional Chinese/Japanese/Korean/Russian/Thai/Hebrew/Portuguese/Turkish/Czech/Polish
System Requirement	Windows XP/Vista/7/8/10/11/OSX/Linux 2.6 and above
Driver Installation	Manual
Camera Operation Temperature	-10~50°C (14~122°F)
Camera Operation Humidity	30-80%
Camera Housing Material	Metal
Camera Housing Size	78x70x92mm
Camera Housing Color	Blue
Screen Size	11.6in
Screen Aspect Ratio	16:9
Input Voltage	DC 12V
Power Cord Connector Type	EU 2 Pins
Power Cable Length	2.6m
Parts Certification	Power Supply with CE Certification
Material	Plastic
Color	Black
Net Weight	1.30kg (2.866lbs)

Packing
Packaging Type	Carton Packaging
Packaging Material	Corrugated Carton
Packaging Dimensions(1)	34x31x44cm (13.386x12.205x17.323″)
Packaging Dimensions(2)	26x25x24cm (10.236x9.843x9.449″)
Packaging Dimensions(3)	26x17.5x9.5cm (10.236x6.889x3.740″)
Packaging Dimensions(4)	33.5x22x7cm (13.188x8.661x2.755″)
Packaging Dimensions(5)	24x17x5.5cm (9.449x6.693x2.165″)
Packaging Dimensions(6)	24x23x26cm (9.449x9.055x10.236″)
Packaging Dimensions(7)	15.2x15.2x15.2cm (6x6x6″)
Inner Packing Material	Plastic Bag
Ancillary Packaging Materials	Expanded Polystyrene
Gross Weight	11.70kg (25.79lbs)
Minimum Packaging Quantity	1pc
Transportation Carton	Carton Packaging
Transportation Carton Material	Corrugated Carton
Transportation Carton Dimensions(1)	34x31x44cm (13.386x12.205x17.323″)
Transportation Carton Dimensions(2)	26x25x24cm (10.236x9.843x9.449″)
Transportation Carton Dimensions(3)	26x17.5x9.5cm (10.236x6.889x3.740″)
Transportation Carton Dimensions(4)	33.5x22x7cm (13.188x8.661x2.755″)
Transportation Carton Dimensions(5)	24x17x5.5cm (9.449x6.693x2.165″)
Transportation Carton Dimensions(6)	24x23x26cm (9.449x9.055x10.236″)
Transportation Carton Dimensions(7)	15.2x15.2x15.2cm (6x6x6″)
Total Gross Weight of Transportation(kilogram)	11.70
Total Gross Weight of Transportation(pound)	25.79
Quantity of One Transportation Carton	7pc

Video Microscope Optical Data Sheet
P/N	Objective	Coupler
		SZ17016121 (0.4X)	SZ17016151 (1X)
		Magnification	Magnification
SZ17014211	0.5X	0.16-1X	0.4-2.5X
SZ17014311	0.7X	0.22-1.4X	0.56-3.5X
SZ17011141	1X	0.32-2X	0.8-5X
SZ17014611	2X	0.64-4X	1.6-10X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification

Camera Image Sensor Specifications
No.	Camera Image Sensor Size	Camera image Sensor Diagonal
No.	Camera Image Sensor Size	（mm）	（inch）
1	1/4 in.	4mm	0.157"
2	1/3 in.	6mm	0.236"
3	1/2.8 in.	6.592mm	0.260"
4	1/2.86 in.	6.592mm	0.260"
5	1/2.7 in.	6.718mm	0.264"
6	1/2.5 in.	7.182mm	0.283"
7	1/2.3 in.	7.7mm	0.303"
8	1/2.33 in.	7.7mm	0.303"
9	1/2 in.	8mm	0.315"
10	1/1.9 in.	8.933mm	0.352"
11	1/1.8 in.	8.933mm	0.352"
12	1/1.7 in.	9.5mm	0.374"
13	2/3 in.	11mm	0.433"
14	1/1.2 in.	12.778mm	0.503"
15	1 in.	16mm	0.629"
16	1/1.1 in.	17.475mm	0.688"

11.6 in. LCD Display Digital Camera
Mouse Operation	Yes
Memory Type	SD
Memory Capacity	16G

Digital Magnification Data Sheet
Image Sensor Size	Image Sensor Diagonal size	Monitor
		Screen Size (11.6in)
		Digital Zoom Function
1/1.8 in.	8.933mm	33
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size

Microscope Optical and Digital Magnifications Data Sheet
Objective		Coupler		Camera		Monitor	Video Microscope Optical Magnifications	Digital Zoom Function	Total Magnification	Field of View (mm)
PN	Magnification	PN	Magnification	Image Sensor Size	Image Sensor Diagonal size	Screen Size	Video Microscope Optical Magnifications	Digital Zoom Function	Total Magnification	Field of View (mm)
SZ17014211	0.5X	SZ17016121	0.4X	1/1.8 in.	8.933mm	11.6in	0.16-1X	33	5.28-33X	8.93-55.83mm
SZ17014211	0.5X	SZ17016151	1X	1/1.8 in.	8.933mm	11.6in	0.4-2.5X	33	13.2-82.5X	3.57-22.33mm
SZ17014311	0.7X	SZ17016121	0.4X	1/1.8 in.	8.933mm	11.6in	0.22-1.4X	33	7.26-46.2X	6.38-40.6mm
SZ17014311	0.7X	SZ17016151	1X	1/1.8 in.	8.933mm	11.6in	0.56-3.5X	33	18.48-115.5X	2.55-15.95mm
SZ17011141	1X	SZ17016121	0.4X	1/1.8 in.	8.933mm	11.6in	0.32-2X	33	10.56-66X	4.47-27.92mm
SZ17011141	1X	SZ17016151	1X	1/1.8 in.	8.933mm	11.6in	0.8-5X	33	26.4-165X	1.79-11.17mm
SZ17014611	2X	SZ17016121	0.4X	1/1.8 in.	8.933mm	11.6in	0.64-4X	33	21.12-132X	2.23-13.96mm
SZ17014611	2X	SZ17016151	1X	1/1.8 in.	8.933mm	11.6in	1.6-10X	33	52.8-330X	0.89-5.58mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

4-200X 5.0 Megapixels CMOS LED Light Post Stand LED Dual Illuminated Light Trinocular Zoom Stereo Microscope SZ02030234

Optional Accessories

Recently viewed products
