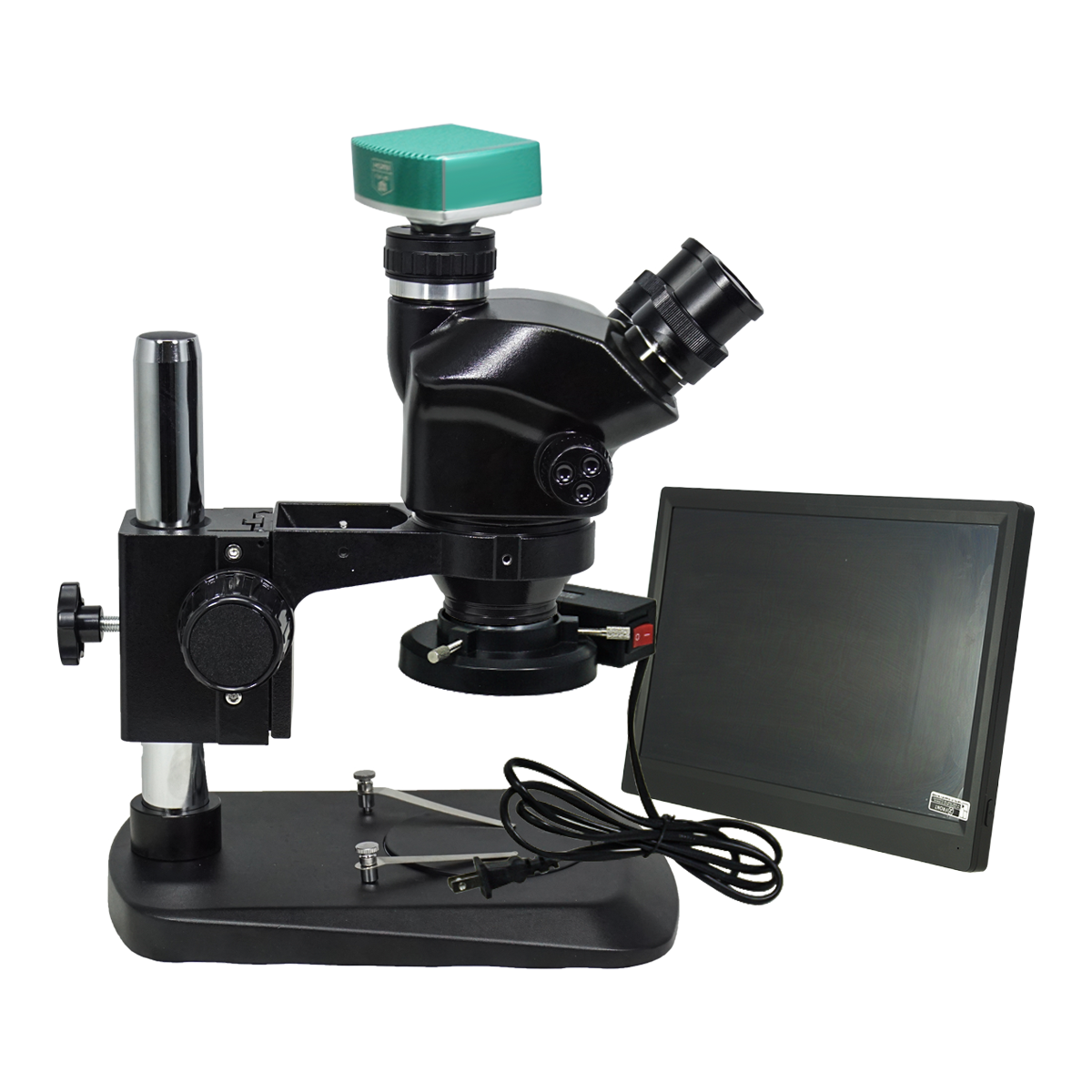

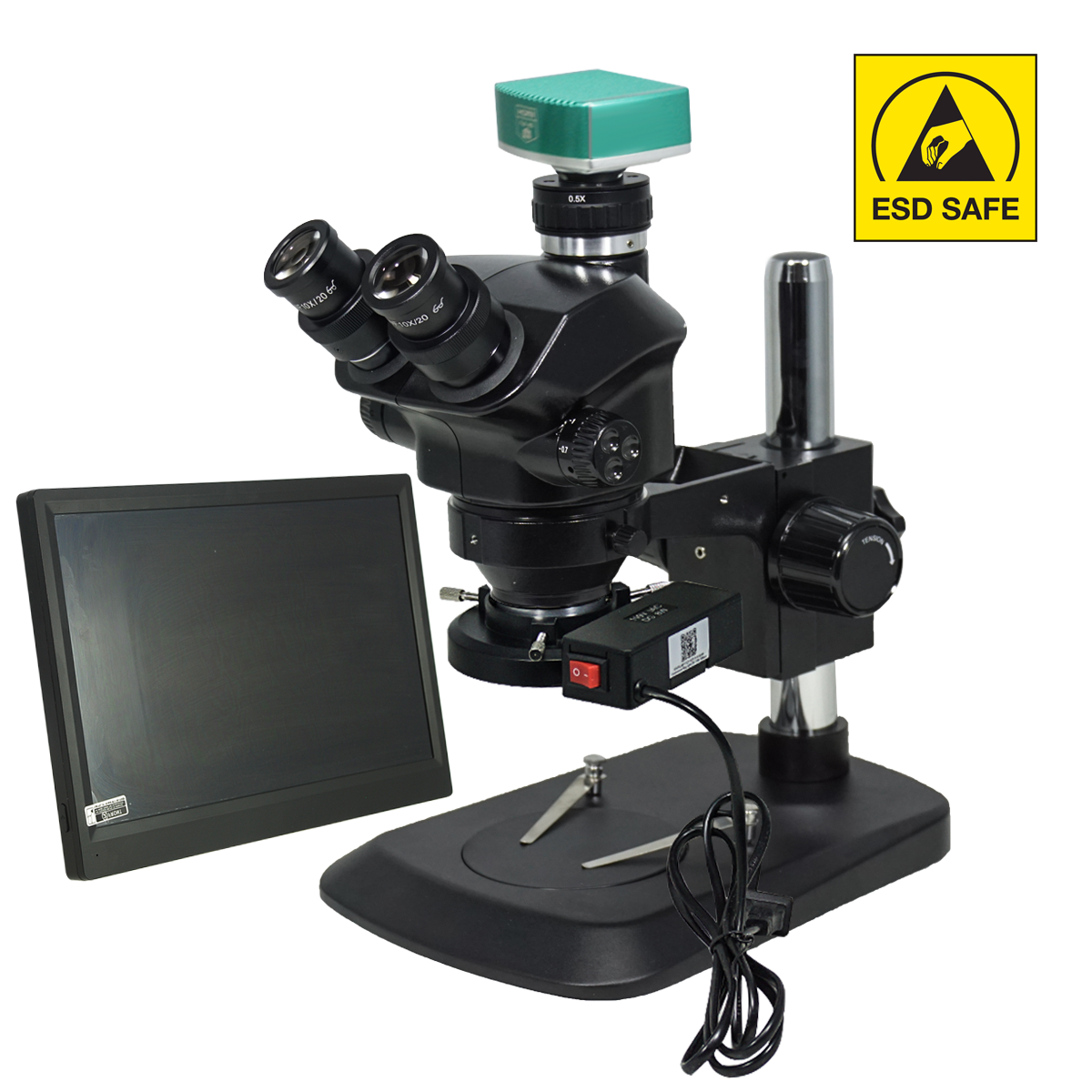

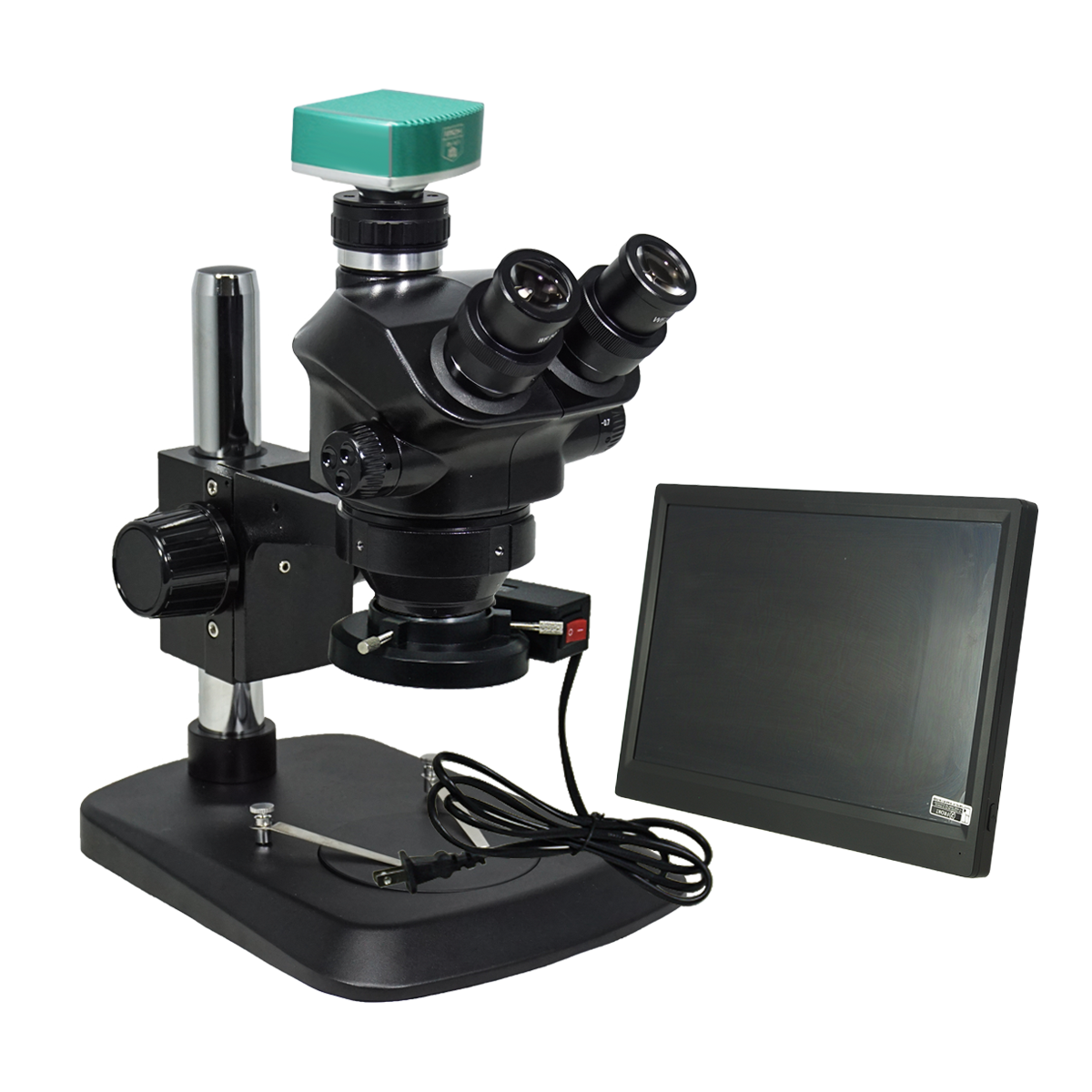

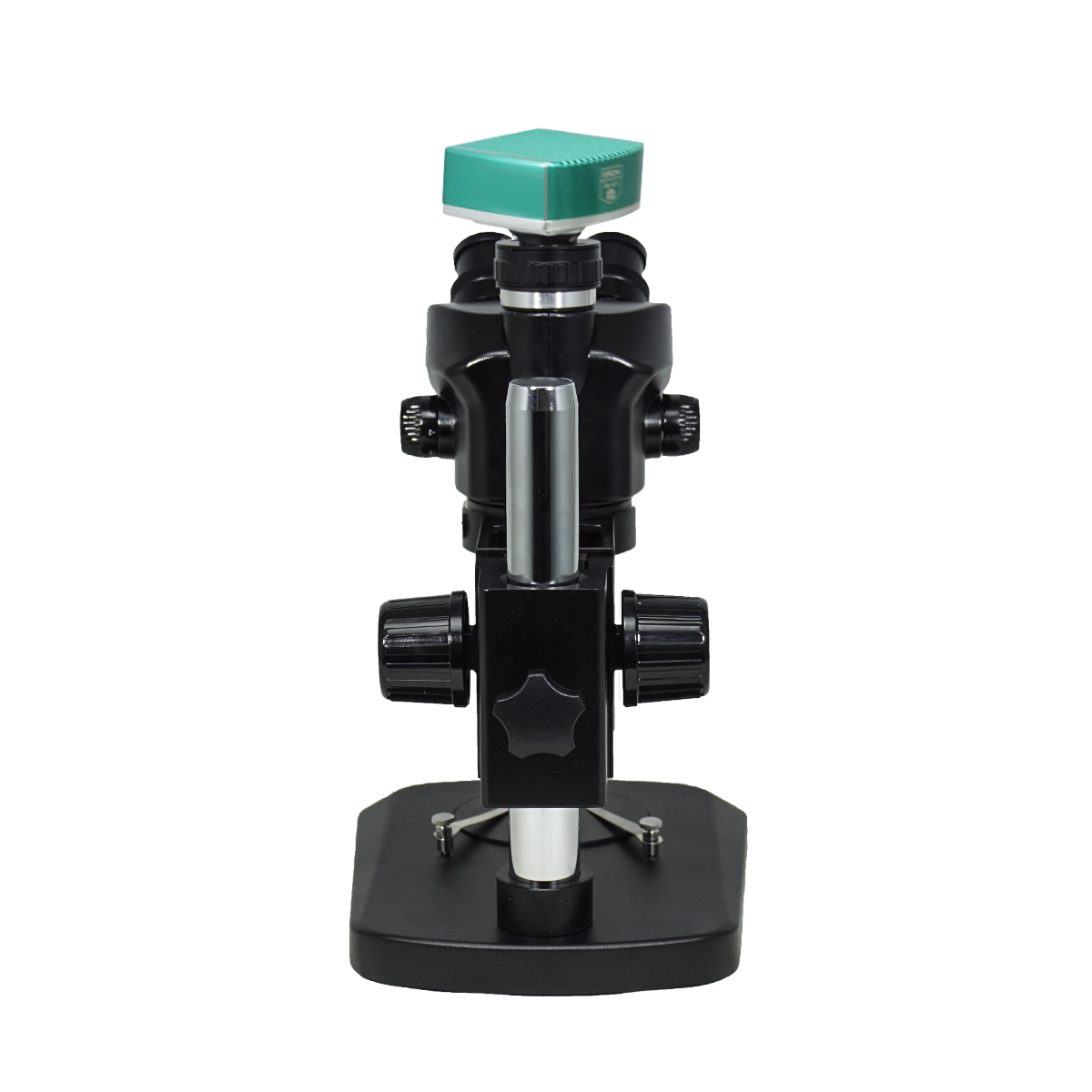

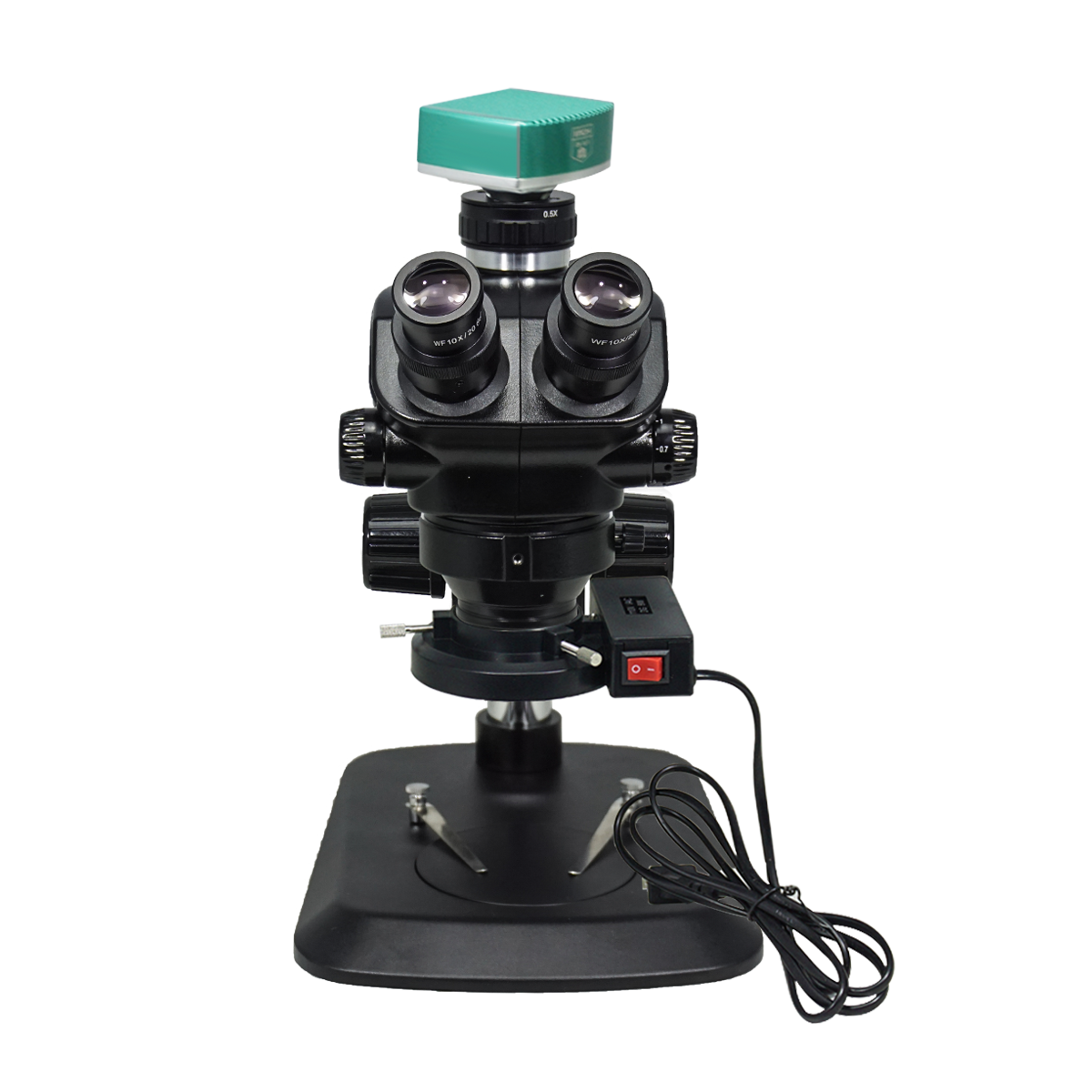

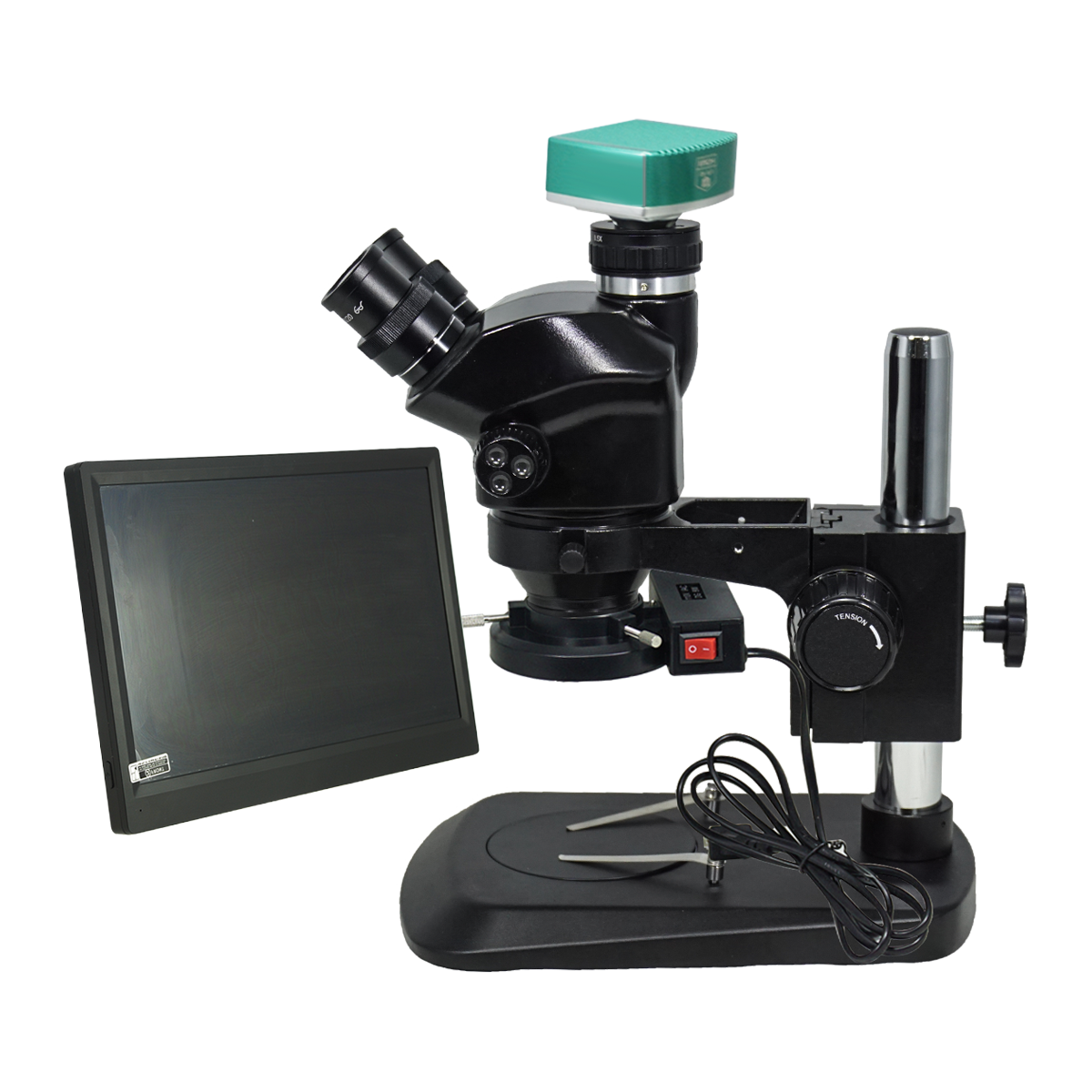

2.0 Megapixels 7-50X CMOS ESD Safe Post Stand Fluorescence Light ESD Trinocular Zoom Stereo Microscope, SKU SZ02090133, three quarter front view

2.0 Megapixels 7-50X CMOS ESD Safe Post Stand Fluorescence Light ESD Trinocular Zoom Stereo Microscope SZ02090133

Name: 2.0 Megapixels 7-50X CMOS ESD Safe Post Stand Fluorescence Light ESD Trinocular Zoom Stereo Microscope SZ02090133
Brand: BoliOptics
SKU: SZ02090133
Price: 1765.86 USD
Availability: InStock

$1,765.86

Shipping calculated at checkout.

SKU: SZ02090133

Condition: New
Warranty: 5/1 Years
Certification:

Technical Overview
Finite. Total Magnification: 7-50X. 10X High Eyepoint Eyepiece. 1X Built-in Objective. Standard Coupler: 0.5X. Zoom Ratio: 1:7.1. Trinocular. Body Mounting Size for Stand: Dia. 76mm. Eye Tube Angle: 45°. Eyepiece Field of View: Dia. 20mm. Post Stand. Fluorescence Light. CMOS. 2.0 Megapixels. HDMI / USB 2.0. Windows XP/7/8/10/11. Screen Size: 11.6in. Input Voltage: AC 100-240V 50/60Hz. Input Voltage: AC 110V 60Hz. Input Voltage: DC 12V. ESD Safe.

In stock

Product variants

2.0 Megapixels 7-50X CMOS ESD Safe Post Stand Fluorescence Light ESD Trinocular Zoom Stereo Microscope SZ02090133

$1,765.86

Order before 12pm PT for same day shipping

5/1 Years Warranty Policy

Return Policy

*Same day shipping is only for items that are in stock

BoliOptics offers World Wide Shipping (We are Based in California, USA)

Shipping Methods
We ship packages using UPS and FedEx. Your order will be shipped per your specified shipping method at check out.

Expedited Shipping
For all expedited shipping services, such as Overnight, Next Day, etc - While we will do our part to ensure the packages are received by the shipping carriers to meet the shipping cut off times, please note that once the package leaves our warehouse, we are no longer responsible for the package. The shipping carrier will be responsible for delivering your package.

Shipping Costs
Your order will be shipped per your selected shipping method, and the shipping fee will be added to your order/invoice. Shipping costs are provided by the shipping carriers and calculated based on shipping location, product dimensions and weight.

Using Your Own Shipping Account
Please input your shipping account number at checkout, if you wish for us to charge the shipping fee to your shipping account. Otherwise, we will ship the product using our shipping account and charge the shipping fee to your invoice.

You may require us to insure packages when shipping under your shipping account. Please note this on your Purchase Order. If packages are shipped using your Shipping Account, and you choose to not insure the packages, or there are no insurance instructions stated on the PO, it is not the responsibility of BoliOptics to pay for any packages that are stolen, or lost/delivered wrong/damaged in transit by the Shipping Carrier.

International Shipping
We offer world wide international shipping. Please specify your desired shipping service at checkout.

SHIPPING & DELIVERY FAQs

When will my order ship?
If the product you purchased is in stock, orders placed online before 12PM (Noon) PST will be shipped on the same business day. Orders placed after 12PM (Noon) will be shipped the following business day.

To ensure your order is shipped as soon as possible and successfully, please check that your shipping address is correct.

Orders placed on the weekend (Saturday and Sunday) and Federal Holidays will be processed on the following business day.

When will Pre-Orders ship?
To get an expected shipping date for pre-orders, please send an email to sales@bolioptics.com

How can I track my order?
We will e-mail you an Order Confirmation once the order has been processed, along with your tracking number.
You can also log into 'My Account' to check the status of orders placed online.

How can I cancel my order before it ships?
If you need to cancel your order, please send an email to sales@bolioptics.com as soon as possible with the Subject Line: CANCEL ORDER # (Your Order #).

Once your order has shipped, meaning you will have received an email with a Status Update that your order has Shipped along with your tracking number, we are unable to cancel your order. You may start a Return once you receive the package.

BoliOptics is not responsible for any damages or delays that may occur while packages are in transit with the shipping carriers. We are not responsible for packages that are lost or delivered to the wrong address by the shipping carrier. We are not responsible for stolen packages.

You are responsible for filing any claims with Shipping Carriers if the order was shipped using your account.

Industry Leading Warranties

BoliOptics microscopes and accessories are manufactured under the strict guidelines established by ISO 9001, ISO13485, ISO14001, or CE (marked per product).

Warranty is only offered for products purchased directly from BoliOptics.

BoliOptics products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:

Lifetime Warranty
Designated products marked lifetime warranty.

5 Year Warranty
Microscopes (except video and digital microscopes) come with a five (5) year factory warranty against manufacturing defects.

5/1 Year Warranty
Products with 5/1 Year Warranty means that the hardware of the microscope is under 5 year warranty, and the electrical and lighting components are under 1 year warranty.

1 Year Warranty
Includes video microscopes, digital microscopes, electrical and electronic products such as light sources, cameras, software, monitors, and electronic components.
Microscope accessories (such as microscope cameras and illuminators) come with a one (1) year warranty, except when specified in the description.

Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc.

Warranty does not cover ordinary wear and tear or damage caused by improper use or accidents (drops).
Warranty does not cover products that have become inoperable due to lack of maintenance.
Warranty is void when products are disassembled, structural parts were opened up, removed, unscrewed, tampered with, or broken during use or in the user's possession.
Warranty is void when product QR Codes or Barcode Stickers containing the Product's Serial Number are removed from the product.

Customers are responsible for round-way shipping for warranty services.

*Please note that we do not perform repairs. If you would like a repair, we can recommend you to third party microscope service and repair companies.*

Warranty Instructions

Please see the Reasons for Warranty:

A. If the reason is due to ordinary wear and tear, damage caused by improper use or accidents (drops), damage due to lack of maintenance, or that the product was disassembled, structural parts were opened up, removed, unscrewed, tampered with, or that the product was broken during use or in the user's possession, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

B. If the time frame is outside of the warranty period, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

C. If the reason is due to manufacturing defects, and the product is within the warranty period,
Email us at sales@bolioptics.com with the following details:
- Your name
- The SKU # of the product
- Photos of the product from the front, sides, and back
- Photo of the serial number on the product, if present

BoliOptics offers a thirty (30) day return window beginning on the date of your purchase.

To receive a 100% refund, items must be returned in New and Original Condition, with all parts, accessories, and original product packaging included.

Products missing the original packaging or instruction manuals are subject to a 20% restocking fee.
Products missing parts or accessories are subject to a higher restocking fee.
Products damaged during use (scratched, chipped, parts broken), disassembled from the original manufacturing or tampered with, are not accepted for returns or refunds. Our return policy does not cover ordinary wear and tear or damage caused by improper use or accidents.
Microscope slides, coverslips, and eye guards are non-returnable.
Items marked "Final Sale" are not eligible for return or refund due to change of mind. We are committed to ensuring the quality of all our products. If you receive a final sale item that has an issue, please contact us as soon as possible, and we will resolve any issue on a case by case basis.

When packaging the return, protect the item and original packaging.

We recommend using the original packaging materials to ensure the product is safe during return shipping.
If you do not have the original packaging materials, and there is extra room in the box, fill the extra space with padding (paper or shipping peanuts) so the product won't move around during transportation.

Customers are responsible for the return shipping label cost, if the product was not defective.

It can take up to 7 business days for an item to reach us once you ship it. Once we receive the item, it takes 5-7 business days to process the return and refund.

If you have any questions, please an email us at sales@bolioptics.com

To Start a Return

1. Sign in to your account or Create An Account.

2. Once you are signed in to your account, click the "Start a Return" link below to submit your return request.

3. Once your return request is approved, we will email you with your Return Merchandise Authorization Number (RMA#) and return instructions.

Optional Accessories

Compatible with this product

WF 10X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 20mm (Pair), SKU SZ05033211, three quarter front view

WF 10X Widefield Microscope Eyepieces, High Eyepoint, 30mm, FOV 20mm (Pair) $49.98

In stock

Optical System	Finite
System Optical Magnification	7-50X
Trinocular Optical Magnification	0.35-2.5X
Total Magnification	7-50X
Standard Eyepiece	10X High Eyepoint Eyepiece
Standard Objective	1X Built-in Objective
Standard Coupler	0.5X
System Field of View	Dia. 4-28.57mm
System Working Distance	103mm

ESD Trinocular Zoom Body
Body Optical System	Finite
Body Magnification	7-50X
Zoom Range	0.7-5X
Zoom Ratio	1:7.1
Zoom Operating Mode	With Two Horizontal Knobs
Observation Method	Trinocular
Body Mounting Size for Stand	Dia. 76mm
Body Mount Type for Coupler	Thread Screw
Body Mount Size for Coupler	Dia. 28mm
Nosepiece Adapter Size for Ring Light	Dia. 54mm
Eye Tube Adjustment Mode	Siedentopf
Eye Tube Angle	45°
Erect/Inverted Image	Erect image
Eye Tube Rotatable	360° Degree Rotatable
Interpupillary Adjustment	45-65mm
Eye Tube Inner Diameter	Dia. 30mm
Eye Tube Diopter Adjustable	±5°
Eyepiece Type	Standard Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 20mm
Eyepoint Type	High Eyepoint Eyepiece
Eyepiece Size for Reticle	Dia. 24mm
Eye Guard Installation	Independent Eye Guard
Eye Guard Mount Size	Dia. 36mm
Built-in Objective Magnification	1X
Objective Working Distance	103mm
Objective Screw Thread	M48x0.75mm
Surface Treatment	Spray Paint
ESD Safe	ESD Safe
Material	Metal
Color	Black
Net Weight	1.27kg (2.80lbs)

Ring Adapter Outer Diameter	Dia. 49.5mm
Ring Adapter Screw Thread	M48x0.75mm
Ring Adapter Slot	Two cut slots
Surface Treatment	Polished Aluminum
Material	Aluminum
Color	White
Net Weight	0.02kg (0.04lbs)
Applied Field	For FS0801, SZ0801, SZ0802, SZ0501, SZ0502, SZ0503, SZ0702, SZ1901, FS0503 Series Microscope

76mm ESD Post Stand
Stand Type	Post Stand
Holder Adapter Type	Dia. 76mm Scope Holder
Vertical Post Height	250mm
Vertical Post Diameter	Dia. 32mm
Base Type	Table Base
Base Shape	Fan-Shape
Base Dimensions	206x273x22mm
Focus Mode	Manual
Focus Distance	50mm
Coarse Focus Distance per Rotation	25mm
Focusing Knob Tightness Adjustable	Tightness Adjustable
Center Distance from Hole to Scope Holder	155mm
Surface Treatment	Spray Paint
ESD Safe	ESD Safe
Material	Metal
Color	Black
Net Weight	2.48kg (5.47lbs)
Dimensions	273x206x272mm (10.748x8.110x10.709 in. )

100x6mm Black White Plate
Plate Type	Black White Plate
Plate Size	Dia. 100x6mm
Material	Plastic (ABS)
Color	Black, White
Net Weight	0.05kg (0.11lbs)
Applied Field	For ST0501, ST1901 Series Post Stand. ST0503, ST2703 Series Track Stand

Fluorescence Ring Light (8W 110V ID55mm)
Light Source Type	Fluorescence Light
Ring I.D. Size	Dia. 55mm
Light Source Illuminance	4000Lux
Replacement Bulb	BU99021110
Bulb Rated Power	8W
Input Voltage	AC 110V 60Hz
Power Cord Connector Type	CN 2 Pins
Power Cable Length	1.3m
Material	Plastic
Color	Black
Net Weight	0.20kg (0.44lbs)
Screw Model	M4x20mm

8W Fluorescent Ring Light Bulb
Bulb Rated Power	8W
Bulb Rated Voltage	AC 220V 50Hz
Bulb Shape	Ring
Bulb Inner Diameter	Dia. 60mm
Bulb Outer Diameter	Dia. 84mm
Material	Glass
Net Weight	0.024kg (0.053lbs)
Applied Field	For ML461112 Fluorescence Ring Light

0.5X Coupler
Coupler Mount Type for Trinocular	Fastening Screw
Coupler Mount Size for Trinocular	Dia. 38mm
Adjustable Coupler	Adjustable
Coupler for Microscope Type	Stereo Compatible
Coupler Magnification	0.5X
C/CS-Mount Coupler	C-Mount
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.10kg (0.22lbs)
Applied Field	For SZ0502, SZ0503 Series Trinocular Zoom Body

2M HDMI Color Camera
Image Sensor	CMOS
Image Sensor Size	1/2.86 in.
Image Sensor Diagonal size	6.592mm (0.260 in. )
Camera Maximum Pixels	2.0 Megapixels
Camera Resolution	1920x1080
Camera Signal Output Port	HDMI / USB 2.0
Camera Lens Mount	C-Mount
Transmission Frame Rate	30fps@1920x1080
White Balance	Manual/Auto
Gain Control	Adjustable
Exposure Control	Manual
Image Comparison	Yes
Image Freeze Function	Image Freeze
Digital Zoom Function	10X
Camera Crosshairs	Cross Line
Number of Crosshairs	4 Movable Crosshairs
Line Color	User Defined
Capture Function	Yes
Image Capture Output Format	Bitmap
Video Output Format	AVI
Language	English
System Requirement	Windows XP/7/8/10/11
Camera Housing Material	Metal
Camera Housing Size	83x74x53mm
Camera Housing Color	Blue
Memory Type	SD
Input Voltage	DC 12V
Surface Treatment	Electroplating
Net Weight	0.60kg (1.32lbs)

2M HDMI Color Camera
Mouse Operation	Yes
Memory Type	SD
Memory Capacity	8G

Packing
Packaging Type	Carton Packaging
Packaging Material	Corrugated Carton
Packaging Dimensions(1)	39x24x36cm (15.354x9.449x14.173″)
Packaging Dimensions(2)	44.5x32.5x23cm (17.520x12.795x9.055″)
Packaging Dimensions(3)	28x23x7cm (11.024x9.055x2.756″)
Packaging Dimensions(4)	33x24.5x9cm (12.992x9.646x3.543″)
Packaging Dimensions(5)	18.5x10.8x5.2cm (7.283x4.251x2.047″)
Inner Packing Material	Plastic Bag
Ancillary Packaging Materials	Expanded Polystyrene
Gross Weight	7.25kg (15.98lbs)
Minimum Packaging Quantity	1pc
Transportation Carton	Carton Packaging
Transportation Carton Material	Cardboard Box
Transportation Carton Dimensions(1)	39x24x36cm (15.354x9.449x14.173″)
Transportation Carton Dimensions(2)	44.5x32.5x23cm (17.520x12.795x9.055″)
Transportation Carton Dimensions(3)	28x23x7cm (11.024x9.055x2.756″)
Transportation Carton Dimensions(4)	33x24.5x9cm (12.992x9.646x3.543″)
Transportation Carton Dimensions(5)	18.5x10.8x5.2cm (8x5x3″)
Total Gross Weight of Transportation(kilogram)	7.25
Total Gross Weight of Transportation(pound)	15.98
Quantity of One Transportation Carton	5pc

Microscope Optical Data Sheet
P/N	Objective	Objective Working Distance	Eyepiece
			SZ05033211 (10X Dia. 20mm)		SZ19013211 (10X Dia. 20mm)		SZ19041153 (10X Dia. 20mm)
			Magnification	Field of View(mm)	Magnification	Field of View(mm)	Magnification	Field of View(mm)
SZ19044211	0.5X	165mm	3.5-25X	8-57.14mm	3.5-25X	8-57.14mm	3.5-25X	8-57.14mm
SZ19044311	0.75X	117mm	5.25-37.5X	5.33-38.1mm	5.25-37.5X	5.33-38.1mm	5.25-37.5X	5.33-38.1mm
SZ19041153	1X	103mm	7-50X	4-28.57mm	7-50X	4-28.57mm	7-50X	4-28.57mm
SZ19044611	2X	30mm	14-100X	2-14.29mm	14-100X	2-14.29mm	14-100X	2-14.29mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification）
3. The Darker background items are Standard items, the white background items are optional items.

Camera Image Sensor Specifications
No.	Camera Image Sensor Size	Camera image Sensor Diagonal
No.	Camera Image Sensor Size	（mm）	（inch）
1	1/4 in.	4mm	0.157"
2	1/3 in.	6mm	0.236"
3	1/2.8 in.	6.592mm	0.260"
4	1/2.86 in.	6.592mm	0.260"
5	1/2.7 in.	6.718mm	0.264"
6	1/2.5 in.	7.182mm	0.283"
7	1/2.3 in.	7.7mm	0.303"
8	1/2.33 in.	7.7mm	0.303"
9	1/2 in.	8mm	0.315"
10	1/1.9 in.	8.933mm	0.352"
11	1/1.8 in.	8.933mm	0.352"
12	1/1.7 in.	9.5mm	0.374"
13	2/3 in.	11mm	0.433"
14	1/1.2 in.	12.778mm	0.503"
15	1 in.	16mm	0.629"
16	1/1.1 in.	17.475mm	0.688"

Microscope Optical and Digital Magnifications Data Sheet
Objective		Coupler		Camera		Monitor	Video Microscope Optical Magnifications	Digital Zoom Function	Total Magnification	Field of View (mm)
PN	Magnification	PN	Magnification	Image Sensor Size	Image Sensor Diagonal size	Screen Size	Video Microscope Optical Magnifications	Digital Zoom Function	Total Magnification	Field of View (mm)
SZ19044211	0.5X	SZ05036133	0.5X	1/2.86 in.	6.592mm	10in	0.18-1.25X	38.5	6.93-48.12X	5.27-36.62mm
SZ19044211	0.5X	SZ05036133	0.5X	1/2.86 in.	6.592mm	11.6in	0.18-1.25X	44.7	8.05-55.88X	5.27-36.62mm
SZ19044211	0.5X	SZ05036133	0.5X	1/2.86 in.	6.592mm	13.3in	0.18-1.25X	51.2	9.22-64X	5.27-36.62mm
SZ19044211	0.5X	SZ05036133	0.5X	1/2.86 in.	6.592mm	21.5in	0.18-1.25X	82.8	14.9-103.5X	5.27-36.62mm
SZ19044211	0.5X	SZ19046131	1X	1/2.86 in.	6.592mm	10in	0.35-2.5X	38.5	13.48-96.25X	2.64-18.83mm
SZ19044211	0.5X	SZ19046131	1X	1/2.86 in.	6.592mm	11.6in	0.35-2.5X	44.7	15.64-111.75X	2.64-18.83mm
SZ19044211	0.5X	SZ19046131	1X	1/2.86 in.	6.592mm	13.3in	0.35-2.5X	51.2	17.92-128X	2.64-18.83mm
SZ19044211	0.5X	SZ19046131	1X	1/2.86 in.	6.592mm	21.5in	0.35-2.5X	82.8	28.98-207X	2.64-18.83mm
SZ19044311	0.75X	SZ05036133	0.5X	1/2.86 in.	6.592mm	10in	0.26-1.88X	38.5	10.01-72.38X	3.51-25.35mm
SZ19044311	0.75X	SZ05036133	0.5X	1/2.86 in.	6.592mm	11.6in	0.26-1.88X	44.7	11.62-84.04X	3.51-25.35mm
SZ19044311	0.75X	SZ05036133	0.5X	1/2.86 in.	6.592mm	13.3in	0.26-1.88X	51.2	13.31-96.26X	3.51-25.35mm
SZ19044311	0.75X	SZ05036133	0.5X	1/2.86 in.	6.592mm	21.5in	0.26-1.88X	82.8	21.53-155.66X	3.51-25.35mm
SZ19044311	0.75X	SZ19046131	1X	1/2.86 in.	6.592mm	10in	0.52-3.75X	38.5	20.02-144.38X	1.76-12.68mm
SZ19044311	0.75X	SZ19046131	1X	1/2.86 in.	6.592mm	11.6in	0.52-3.75X	44.7	23.24-167.62X	1.76-12.68mm
SZ19044311	0.75X	SZ19046131	1X	1/2.86 in.	6.592mm	13.3in	0.52-3.75X	51.2	26.62-192X	1.76-12.68mm
SZ19044311	0.75X	SZ19046131	1X	1/2.86 in.	6.592mm	21.5in	0.52-3.75X	82.8	43.06-310.5X	1.76-12.68mm
SZ19041153	1X	SZ05036133	0.5X	1/2.86 in.	6.592mm	10in	0.35-2.5X	38.5	13.48-96.25X	2.64-18.83mm
SZ19041153	1X	SZ05036133	0.5X	1/2.86 in.	6.592mm	11.6in	0.35-2.5X	44.7	15.64-111.75X	2.64-18.83mm
SZ19041153	1X	SZ05036133	0.5X	1/2.86 in.	6.592mm	13.3in	0.35-2.5X	51.2	17.92-128X	2.64-18.83mm
SZ19041153	1X	SZ05036133	0.5X	1/2.86 in.	6.592mm	21.5in	0.35-2.5X	82.8	28.98-207X	2.64-18.83mm
SZ19041153	1X	SZ19046131	1X	1/2.86 in.	6.592mm	10in	0.7-5X	38.5	26.95-192.5X	1.32-9.42mm
SZ19041153	1X	SZ19046131	1X	1/2.86 in.	6.592mm	11.6in	0.7-5X	44.7	31.29-223.5X	1.32-9.42mm
SZ19041153	1X	SZ19046131	1X	1/2.86 in.	6.592mm	13.3in	0.7-5X	51.2	35.84-256X	1.32-9.42mm
SZ19041153	1X	SZ19046131	1X	1/2.86 in.	6.592mm	21.5in	0.7-5X	82.8	57.96-414X	1.32-9.42mm
SZ19044611	2X	SZ05036133	0.5X	1/2.86 in.	6.592mm	10in	0.7-5X	38.5	26.95-192.5X	1.32-9.42mm
SZ19044611	2X	SZ05036133	0.5X	1/2.86 in.	6.592mm	11.6in	0.7-5X	44.7	31.29-223.5X	1.32-9.42mm
SZ19044611	2X	SZ05036133	0.5X	1/2.86 in.	6.592mm	13.3in	0.7-5X	51.2	35.84-256X	1.32-9.42mm
SZ19044611	2X	SZ05036133	0.5X	1/2.86 in.	6.592mm	21.5in	0.7-5X	82.8	57.96-414X	1.32-9.42mm
SZ19044611	2X	SZ19046131	1X	1/2.86 in.	6.592mm	10in	1.4-10X	38.5	53.9-385X	0.66-4.71mm
SZ19044611	2X	SZ19046131	1X	1/2.86 in.	6.592mm	11.6in	1.4-10X	44.7	62.58-447X	0.66-4.71mm
SZ19044611	2X	SZ19046131	1X	1/2.86 in.	6.592mm	13.3in	1.4-10X	51.2	71.68-512X	0.66-4.71mm
SZ19044611	2X	SZ19046131	1X	1/2.86 in.	6.592mm	21.5in	1.4-10X	82.8	115.92-828X	0.66-4.71mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

11.6 in. Color Monitor
Screen Size	11.6in
Screen Aspect Ratio	16:9
Monitor Input Signal Format	HDMI
Monitor Max. Resolution	1920x1080
Screen Active Area	282x180mm (11.102x7.087 in. )
Screen Contrast	1000:1
Screen Brightness	450cd/m2
Response Time	26ms
Screen Viewing Angle	H: 80°/80° V: 80°/80°
Screen Backlight	LCD Display
Monitor Operating Temperature	10°C~40°C
Monitor Operating Humidity	10%-80%
Monitor Housing Material	Plastic
Monitor Housing Size	280x180x15mm
Monitor Housing Color	Black
Output Power	12W
Input Voltage	AC 100-240V 50/60Hz
Output Voltage	DC 12V
Power Cord Connector Type	USA 2 Pins
Power Cable Length	1.5m
Net Weight	0.42kg (0.93lbs)

Video Microscope Optical Data Sheet
P/N	Objective	Coupler
		SZ05036133 (0.5X)	SZ19046131 (1X)
		Magnification	Magnification
SZ19044211	0.5X	0.18-1.25X	0.35-2.5X
SZ19044311	0.75X	0.26-1.88X	0.52-3.75X
SZ19041153	1X	0.35-2.5X	0.7-5X
SZ19044611	2X	0.7-5X	1.4-10X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification

Digital Magnification Data Sheet
Image Sensor Size	Image Sensor Diagonal size	Monitor
		Screen Size (10in)	Screen Size (11.6in)	Screen Size (11.6in)	Screen Size (11.6in)	Screen Size (11.6in)	Screen Size (13.3in)	Screen Size (21.5in)	Screen Size (21.5in)
		Digital Zoom Function	Digital Zoom Function	Digital Zoom Function	Digital Zoom Function	Digital Zoom Function	Digital Zoom Function	Digital Zoom Function	Digital Zoom Function
1/2.86 in.	6.592mm	38.5	44.7	44.7	44.7	44.7	51.2	82.8	82.8
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size

2.0 Megapixels 7-50X CMOS ESD Safe Post Stand Fluorescence Light ESD Trinocular Zoom Stereo Microscope SZ02090133

Optional Accessories

Recently viewed products
