Product Description
Technical Specifications

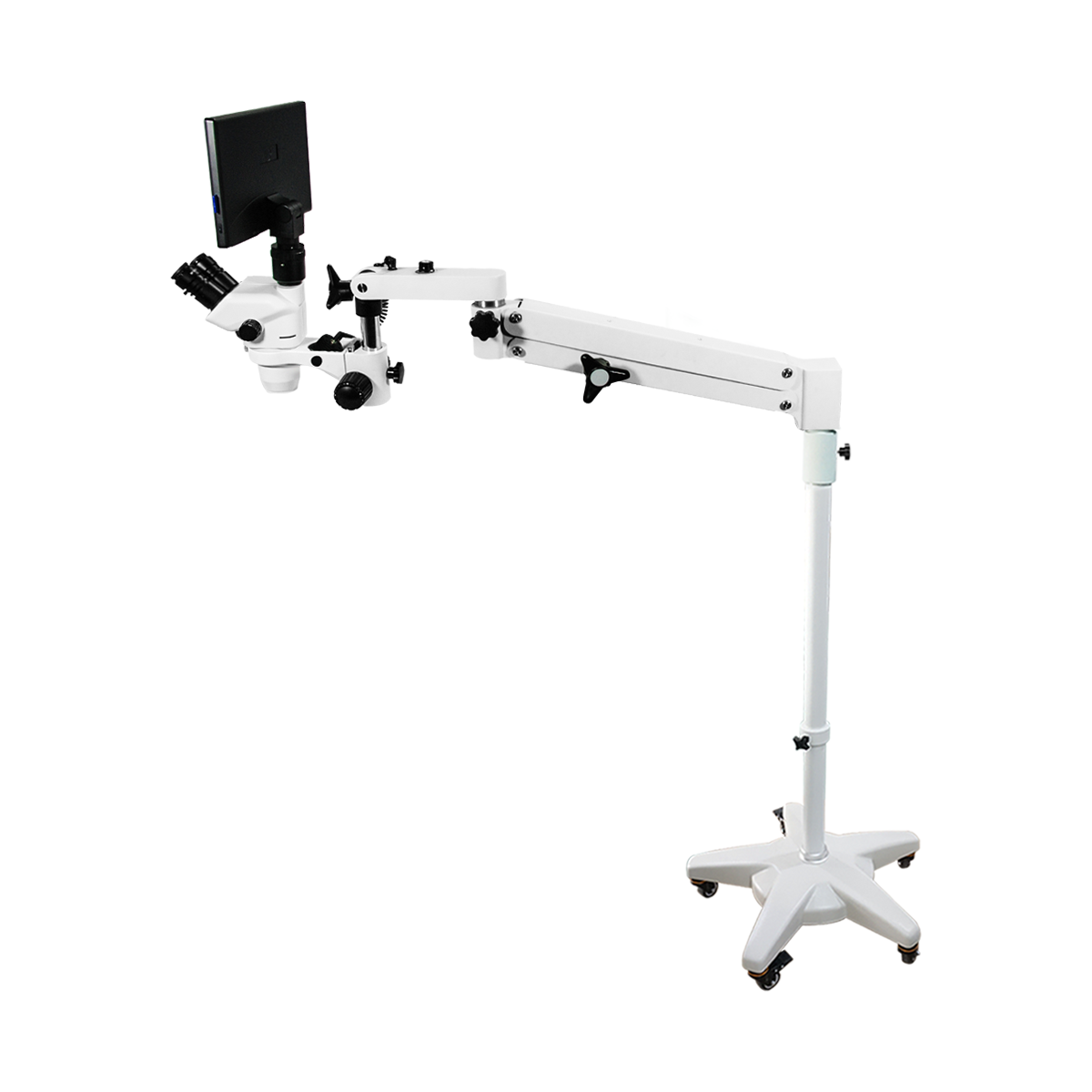

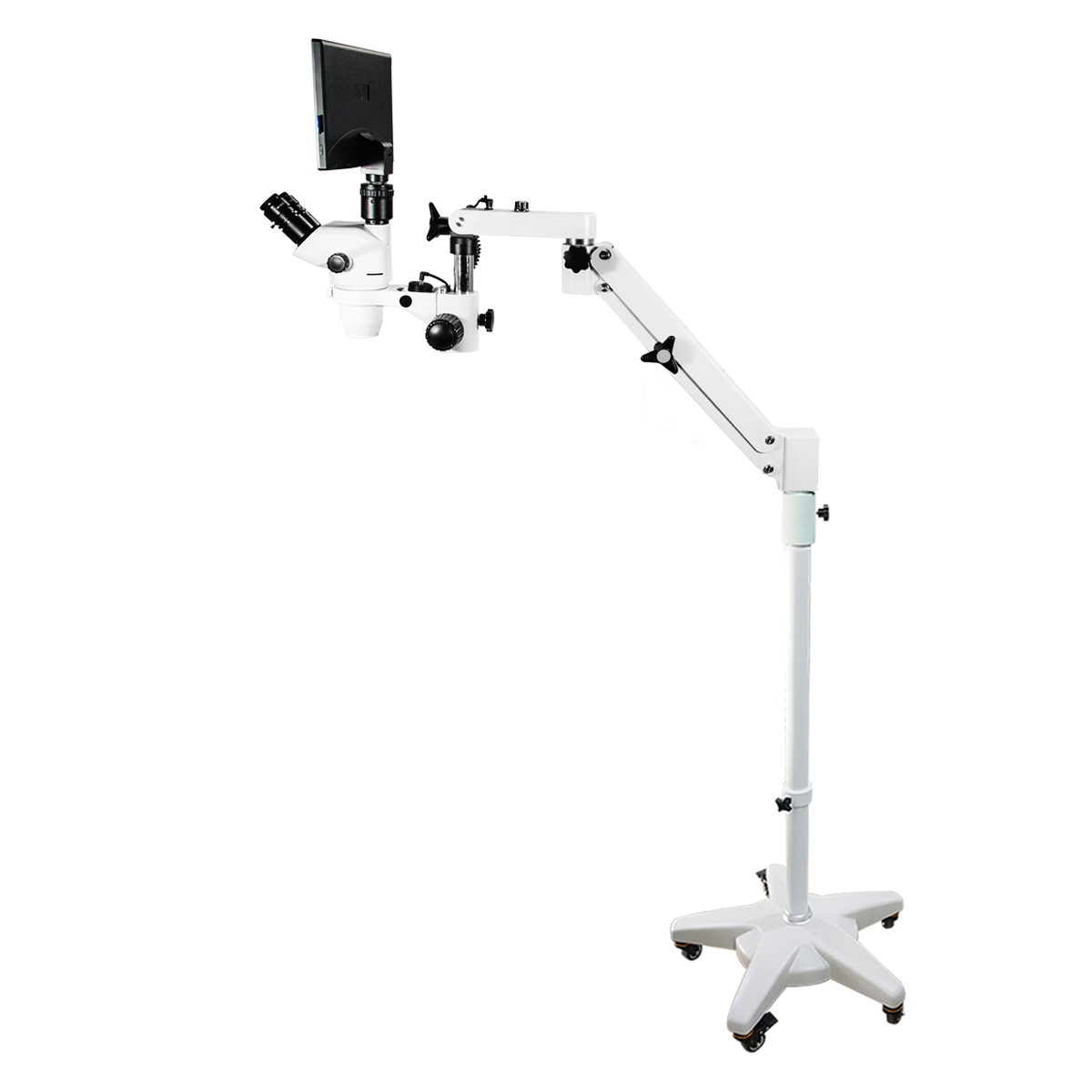

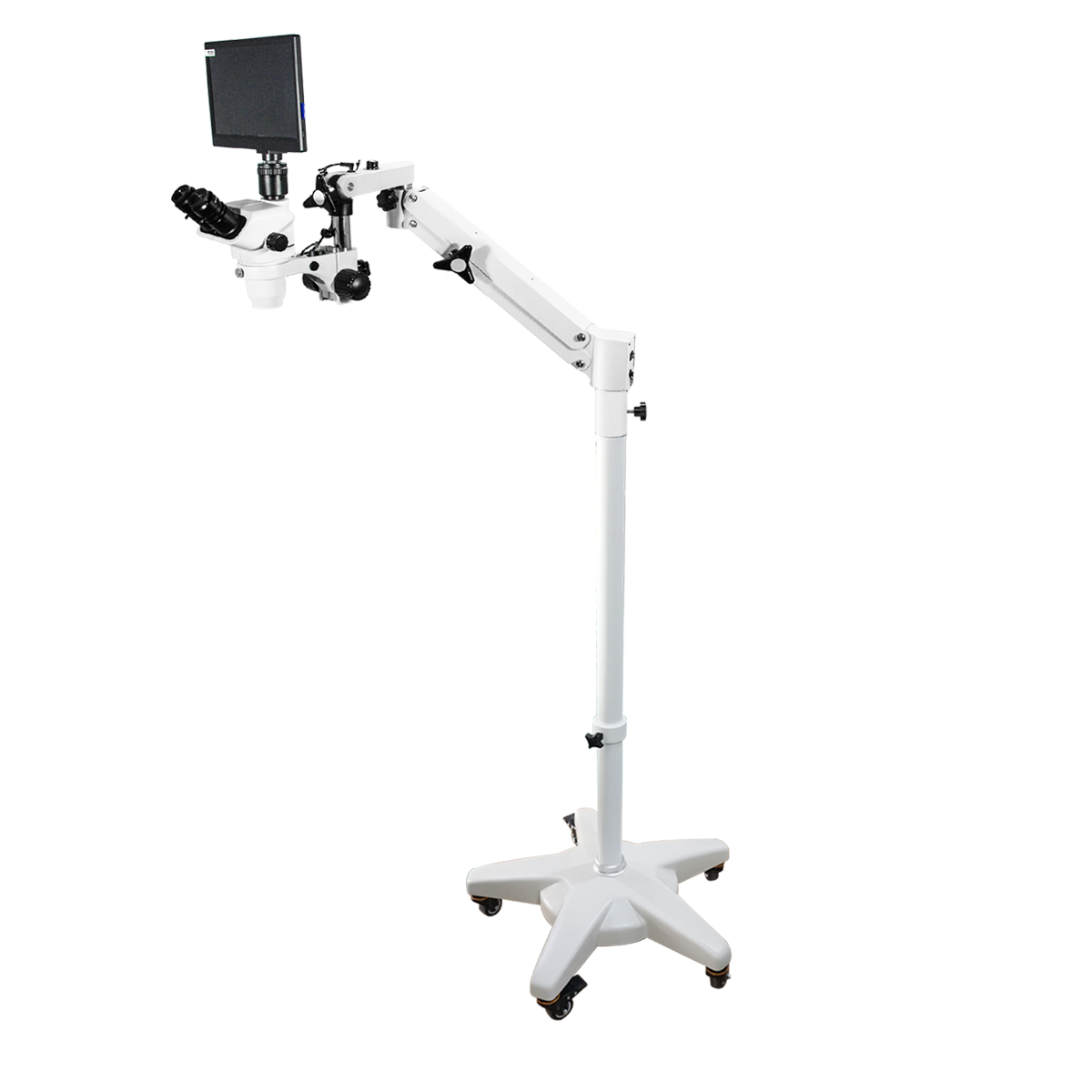

SZ02060773 Trinocular Zoom Stereo Microscope
Optical System Specifications
Optical SystemFinite
System Optical Magnification6.7-45X
Expandable System Optical Magnification (Optional Parts Required)2-180X
Trinocular Optical Magnification0.335-2.25X
Total Magnification6.7-45X
Standard Eyepiece10X High Eyepoint Eyepiece
Standard Objective1X Built-in Objective
Standard Coupler0.5X
System Field of View Dia. 4.9-32.8mm
Expandable System Field of View Dia. 1.33-109.5mm
System Working Distance100mm
Expandable System Working Distance26-287mm
50/50 True-Trinocular Zoom Body
Body Optical SystemFinite
Body Magnification6.7-45X
Zoom Range0.67-4.5X
Zoom Ratio1:6.7
Zoom Operating ModeWith Two Horizontal Knobs
Observation MethodTrinocular
Body Mounting Size for Stand Dia. 76mm
Body Mount Type for CouplerThread Screw
Body Mount Size for Coupler Dia. 38mm
Nosepiece Adapter Size for Ring Light Dia. 54mm
Eye Tube Adjustment ModeCompensating
Eye Tube Angle45°
Erect/Inverted ImageErect image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment54-75mm
Eye Tube Inner Diameter Dia. 30mm
Eye Tube Fixing ModeLocking Screw
Image Port Switch Mode50/50 True-Trinocular
Eyepiece TypeAdjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 30mm
Eyepiece Field of View Dia. 22mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Diopter Correction±5°
Built-in Objective Magnification1X
Objective Working Distance100mm
Objective Screw ThreadM48x0.75mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight1.68kg (3.70lbs)
NotesUse SZ0503 Series Coupler
76mm Surgical Pneumatic Arm
Stand TypePneumatic Arm
Holder Adapter Type Dia. 76mm Scope Holder
Horizontal Arm Length450mm
Total Arm Length940mm
Horizontal Rotation Angle360° Degree Rotatable
Horizontal Arm Maximum Load8.00kg (17.64lbs)
Horizontal Arm Travel Mode on Horizontal DirectionManual
Base TypeTable Mount
Base ShapeFan-Shape
Stand Throat Depth165mm
Base Dimensions125x105x160mm
Focus ModeManual
Focus Distance50mm
Coarse Focus Distance per Rotation22mm
Arbor Length195mm
Arbor Diameter Dia. 32mm
Arbor Rotation Range on Z Direction180°
Clamp Opening Size0-85mm
Safety Protection Against Falling ScrewWith Safety protection against falling Screw
Top IlluminationOblique Top Light
Top Illumination TypeLED
Input VoltageDC 12V
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight8.40kg (18.52lbs)
Dimensions160x600x950mm (6.299x23.622x37.402 in. )
76mm Surgical Pneumatic Arm Floor Stand
Stand TypePneumatic Arm
Holder Adapter Type Dia. 76mm Scope Holder
Total Arm Length940mm
Horizontal Rotation Angle360° Degree Rotatable
Horizontal Arm Travel Mode on Horizontal DirectionManual
Horizontal Arm Travel Mode on Z DirectionManual
Base Dimensions Dia. 73x15cm
Focus ModeManual
Focus Distance50mm
Coarse Focus Distance per Rotation22mm
Arbor Length195mm
Arbor Diameter Dia. 32mm
Arbor Rotation Range on Z Direction180°
Arbor Adapter TypeTiltable
Safety Cover Thread Size of Arbor Dia. 28x1mm
Safety Protection Against Falling ScrewWith Safety protection against falling Screw
Top IlluminationOblique Top Light
Top Illumination TypeLED
Input VoltageDC 12V
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight43.6kg (96.12lbs)
Rolling Floor Stand for Surgical Microscope (5 Spokes)
Vertical Post Height810mm
Vertical Post Diameter Dia. 51.5mm
Base Type360° Rotating Base
Base ShapeFive-Star Base
Mount Adapter Size of Stand Dia. 46mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight35.10kg (77.38lbs)
Pneumatic Arm Adapter
Mounting Holes Position27x27mm
Mounting Hole DimensionsM4
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight0.54kg (1.19lbs)
Applied FieldFor ST02072002 Pneumatic Arm
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 38mm
Adjustable CouplerAdjustable
Coupler for Microscope TypeStereo Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.10kg (0.22lbs)
Applied FieldFor SZ0502, SZ0503 Series Trinocular Zoom Body
11.6 in. LCD Display Digital Camera
Image SensorCMOS
Image Sensor Size1/2.86 in.
Image Sensor Diagonal size6.592mm (0.260 in. )
Camera Maximum Pixels2.0 Megapixels
Camera Resolution1920x1080
Camera Lens MountCS-Mount
Transmission Frame Rate36fps
White BalanceManual/Auto
Gain ControlAdjustable
Exposure ControlManual/Auto
Camera CrosshairsCross Line
Number of Crosshairs4 Movable Crosshairs
Line ColorUser Defined
Capture FunctionYes
Image Capture Output FormatTIFF/JPG/BMP/PNG
Video Output FormatMP4
System RequirementWindows XP/7/8/10/11
Driver InstallationDriver free
Camera Housing MaterialPlastic
Camera Housing Size40x40x58mm
Camera Housing ColorBlack
Max. Supported Memory Card32G
Screen Size11.6in
Screen Aspect Ratio16:9
Monitor Signal FormatNTSC/PAL Auto-Switch
Monitor Max. Resolution1920x1080
Input VoltageDC 12V
Net Weight0.65kg (1.43lbs)
Dimensions280x200x55mm (11.024x7.874x2.165 in. )
Camera Accessories
11.6 in. LCD Display Digital Camera
C/CS Spacer5mm
Mouse OperationYes
Memory TypeSD
Memory Capacity4G
Other Parameters
Surface TreatmentPlastic Spray Coating
MaterialMetal
ColorWhite
Net Weight46.05kg (101.52lbs)
Dimensions160x600x950mm (6.299x23.622x37.402 in. )
Series
SZ0502SZ02060773
Contains
Parts Including
PictureP/NProduct Name
SZ0502115150/50 True-Trinocular Zoom Body
DC4351111111.6″ LCD Display Digital Camera
SZ050361330.5X Coupler
ST0207200276mm Surgical Pneumatic Arm Floor Stand
Packing
Packaging Dimensions(1)81x76.5x26.8cm (32x30x10.5″)
Packaging Dimensions(2)80x41.4x18.3cm (32x16x7″)
Packaging Dimensions(3)40.64x40.64x25.4cm (16x16x10″)
Gross Weight48.55kg (107.05lbs)
Transportation Carton Dimensions(1)81x76.5x26.8cm (32x30x10.5″)
Transportation Carton Dimensions(2)80x41.4x18.3cm (32x16x7″)
Transportation Carton Dimensions(3)40.64x40.64x25.4cm (16x16x10″)
Total Gross Weight of Transportation(kilogram)48.55
Total Gross Weight of Transportation(pound)107.05
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
SZ05021151   (10X  Dia. 22mm) SZ05023421   (15X  Dia. 16mm) SZ17013421   (15X  Dia. 16mm) SZ05023621   (20X  Dia. 12mm) SZ17013621   (20X  Dia. 12.5mm) SZ05023821   (30X  Dia. 8mm)
Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm)
SZ05014111 0.3X 287mm 2.01-13.5X 16.3-109.45mm 3.02-20.25X 11.85-79.6mm 3.02-20.25X 11.85-79.6mm 4.02-27X 8.89-59.7mm 4.02-27X 9.26-62.19mm 6.03-40.5X 5.93-39.8mm
SZ05014121 0.4X 217mm 2.68-18X 12.22-82.09mm 4.02-27X 8.89-59.7mm 4.02-27X 8.89-59.7mm 5.36-36X 6.67-44.78mm 5.36-36X 6.94-46.64mm 8.04-54X 4.44-29.85mm
SZ19024211 0.5X 177mm 3.35-22.5X 9.78-65.67mm 5.03-33.75X 7.11-47.76mm 5.03-33.75X 7.11-47.76mm 6.7-45X 5.33-35.82mm 6.7-45X 5.56-37.31mm 10.05-67.5X 3.56-23.88mm
SZ05014311 0.7X 120mm 4.69-31.5X 6.98-46.91mm 7.03-47.25X 5.08-34.12mm 7.03-47.25X 5.08-34.12mm 9.38-63X 3.81-25.59mm 9.38-63X 3.97-26.65mm 14.07-94.5X 2.54-17.06mm
SZ05021151 1X 100mm 6.7-45X 4.89-32.84mm 10.05-67.5X 3.56-23.88mm 10.05-67.5X 3.56-23.88mm 13.4-90X 2.67-17.91mm 13.4-90X 2.78-18.66mm 20.1-135X 1.78-11.94mm
SZ05014511 1.5X 47mm 10.05-67.5X 3.26-21.89mm 15.08-101.25X 2.37-15.92mm 15.08-101.25X 2.37-15.92mm 20.1-135X 1.78-11.94mm 20.1-135X 1.85-12.44mm 30.15-202.5X 1.19-7.96mm
SZ05014611 2X 26mm 13.4-90X 2.44-16.42mm 20.1-135X 1.78-11.94mm 20.1-135X 1.78-11.94mm 26.8-180X 1.33-8.96mm 26.8-180X 1.39-9.33mm 40.2-270X 0.89-5.97mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
SZ05036111  (0.35X) SZ05036133  (0.5X)
Magnification Magnification
SZ05014111 0.3X 0.07-0.47X 0.1-0.68X
SZ05014121 0.4X 0.09-0.63X 0.13-0.9X
SZ19024211 0.5X 0.12-0.79X 0.17-1.12X
SZ05014311 0.7X 0.16-1.1X 0.23-1.58X
SZ05021151 1X 0.23-1.58X 0.34-2.25X
SZ05014511 1.5X 0.35-2.36X 0.5-3.38X
SZ05014611 2X 0.47-3.15X 0.67-4.5X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (11.6in)
Digital Zoom Function
1/2.86 in. 6.592mm 44.7
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
SZ05014111 0.3X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.07-0.47X 44.7 3.13-21.01X 14.03-94.17mm
SZ05014111 0.3X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.1-0.68X 44.7 4.47-30.4X 9.69-65.92mm
SZ05014121 0.4X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.09-0.63X 44.7 4.02-28.16X 10.46-73.24mm
SZ05014121 0.4X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.13-0.9X 44.7 5.81-40.23X 7.32-50.71mm
SZ19024211 0.5X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.12-0.79X 44.7 5.36-35.31X 8.34-54.93mm
SZ19024211 0.5X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.17-1.12X 44.7 7.6-50.06X 5.89-38.78mm
SZ05014311 0.7X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.16-1.1X 44.7 7.15-49.17X 5.99-41.2mm
SZ05014311 0.7X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.23-1.58X 44.7 10.28-70.63X 4.17-28.66mm
SZ05021151 1X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.23-1.58X 44.7 10.28-70.63X 4.17-28.66mm
SZ05021151 1X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.34-2.25X 44.7 15.2-100.58X 2.93-19.39mm
SZ05014511 1.5X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.35-2.36X 44.7 15.64-105.49X 2.79-18.83mm
SZ05014511 1.5X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.5-3.38X 44.7 22.35-151.09X 1.95-13.18mm
SZ05014611 2X SZ05036111 0.35X 1/2.86 in. 6.592mm 11.6in 0.47-3.15X 44.7 21.01-140.8X 2.09-14.03mm
SZ05014611 2X SZ05036133 0.5X 1/2.86 in. 6.592mm 11.6in 0.67-4.5X 44.7 29.95-201.15X 1.46-9.84mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
