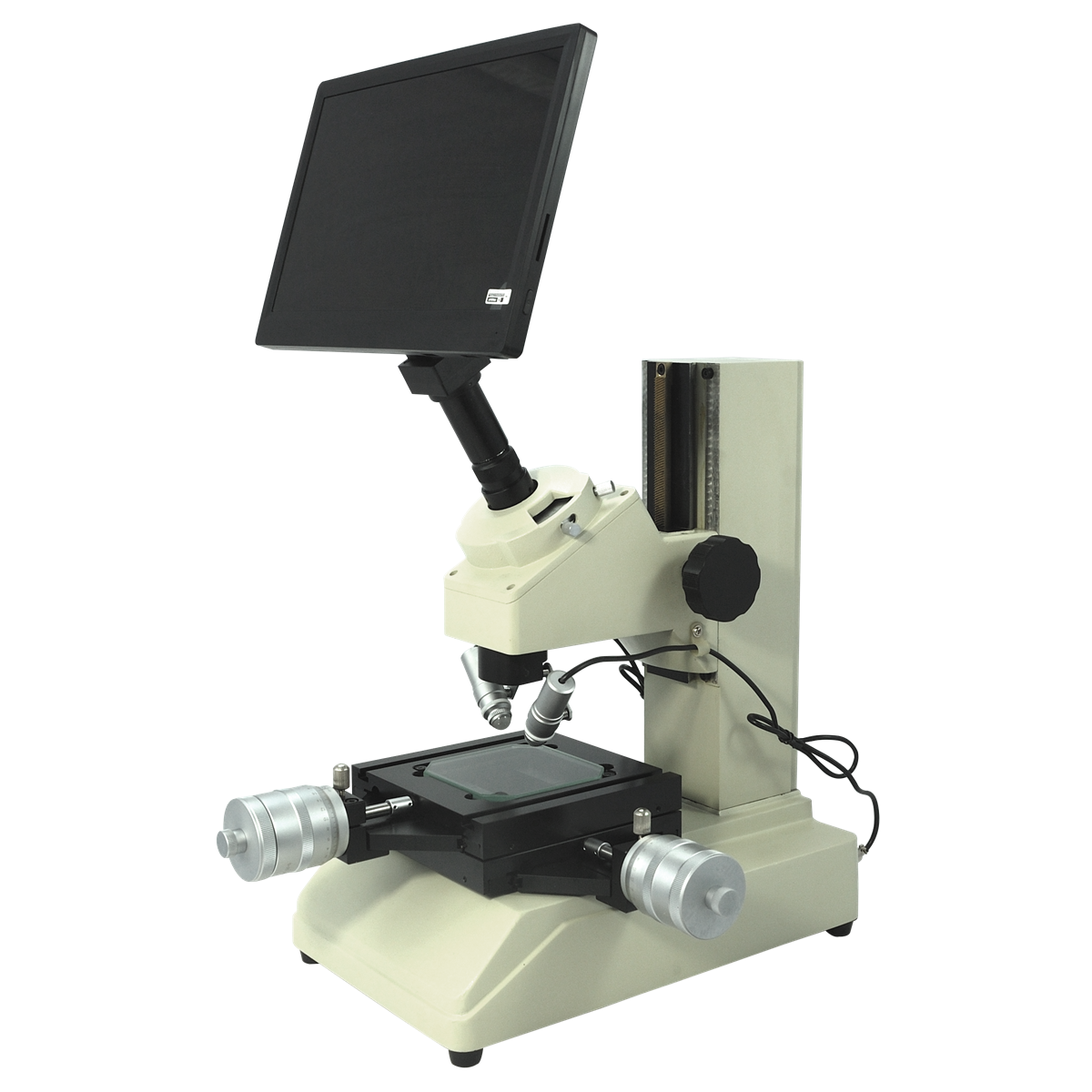

Toolmakers Microscope 30X 93.6X LED Industrial Inspection Measuring + LCD Digital Camera, SKU MS02040101, three quarter front view
Toolmakers Microscope 30X 93.6X LED Industrial Inspection Measuring + LCD Digital Camera, SKU MS02040101, three quarter front view

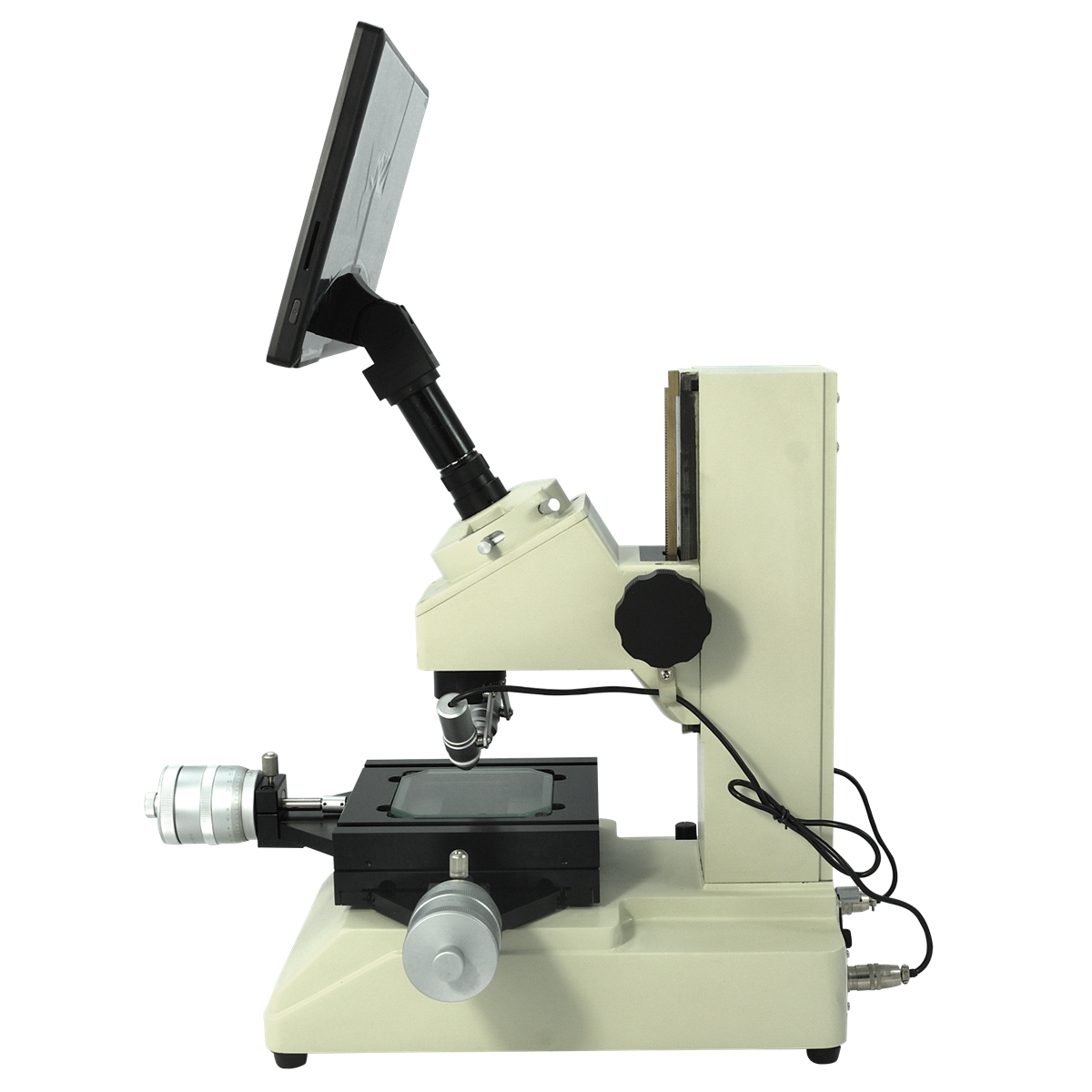

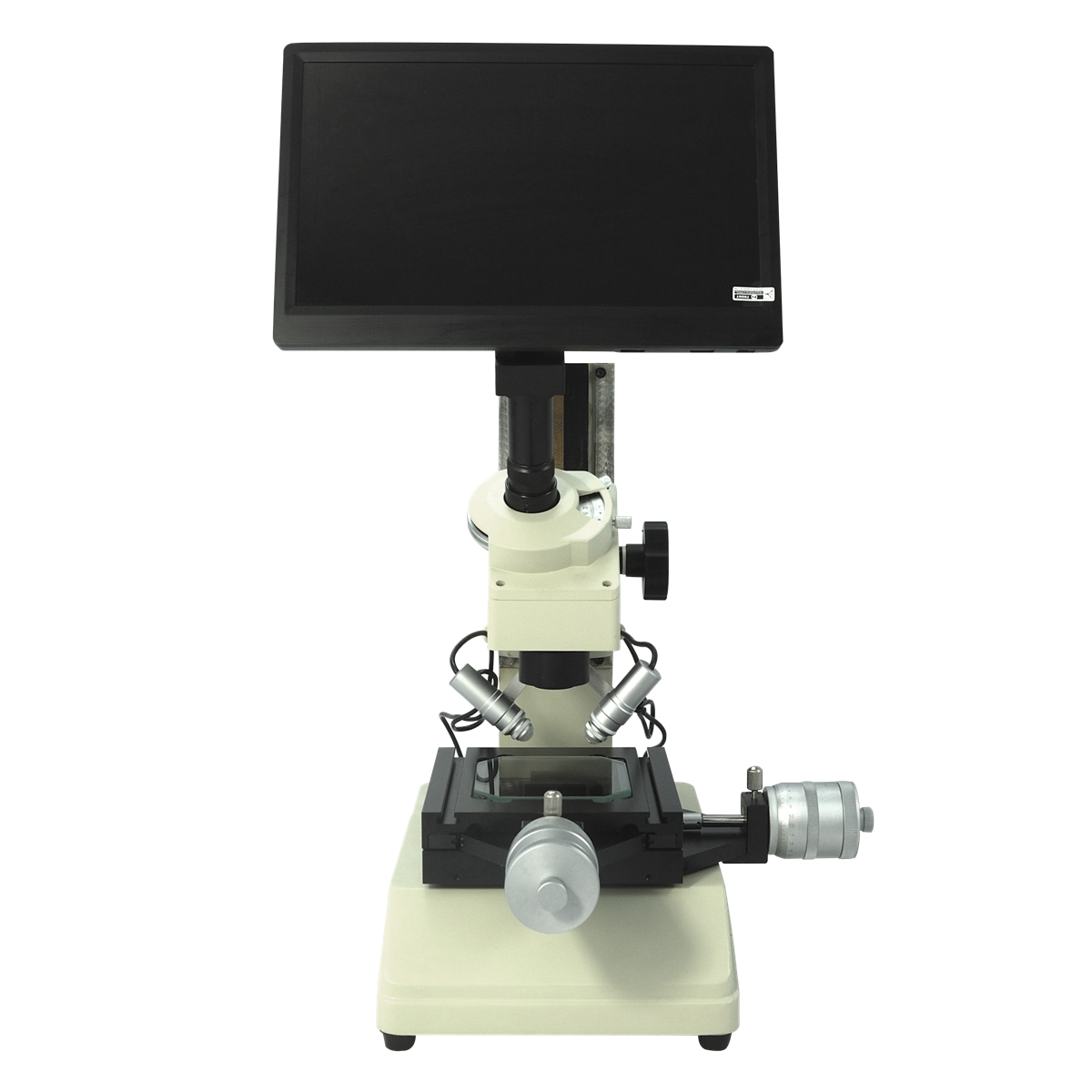

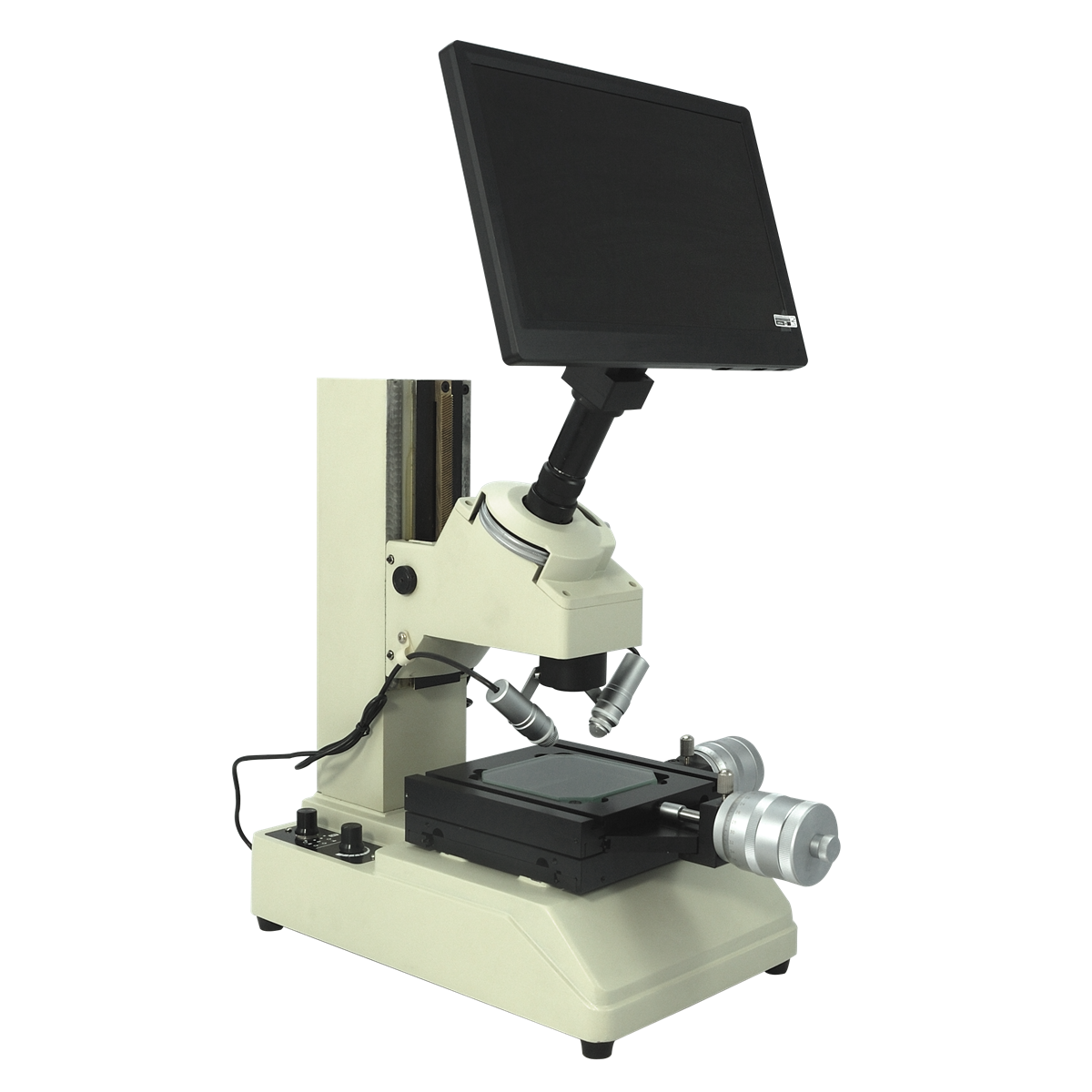

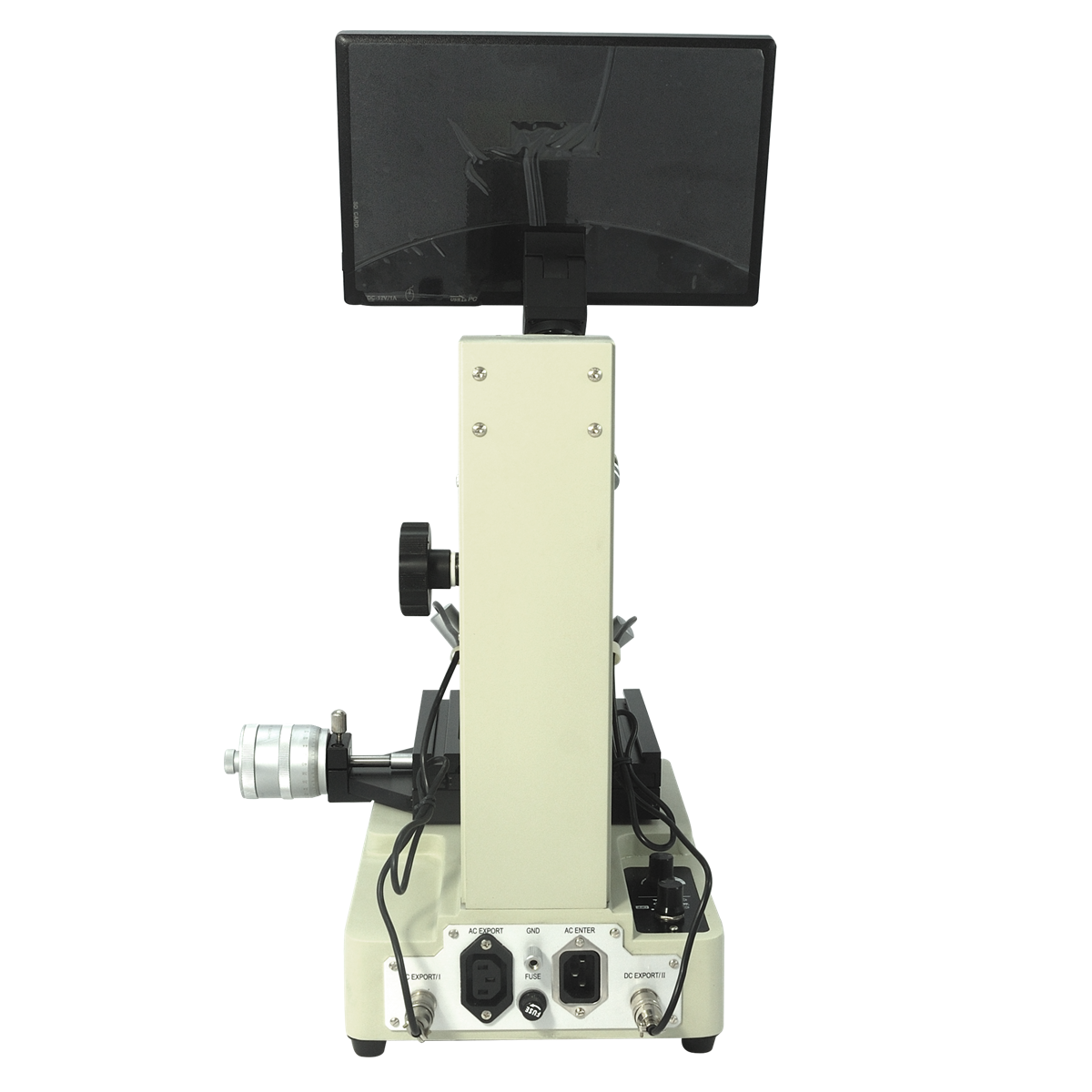

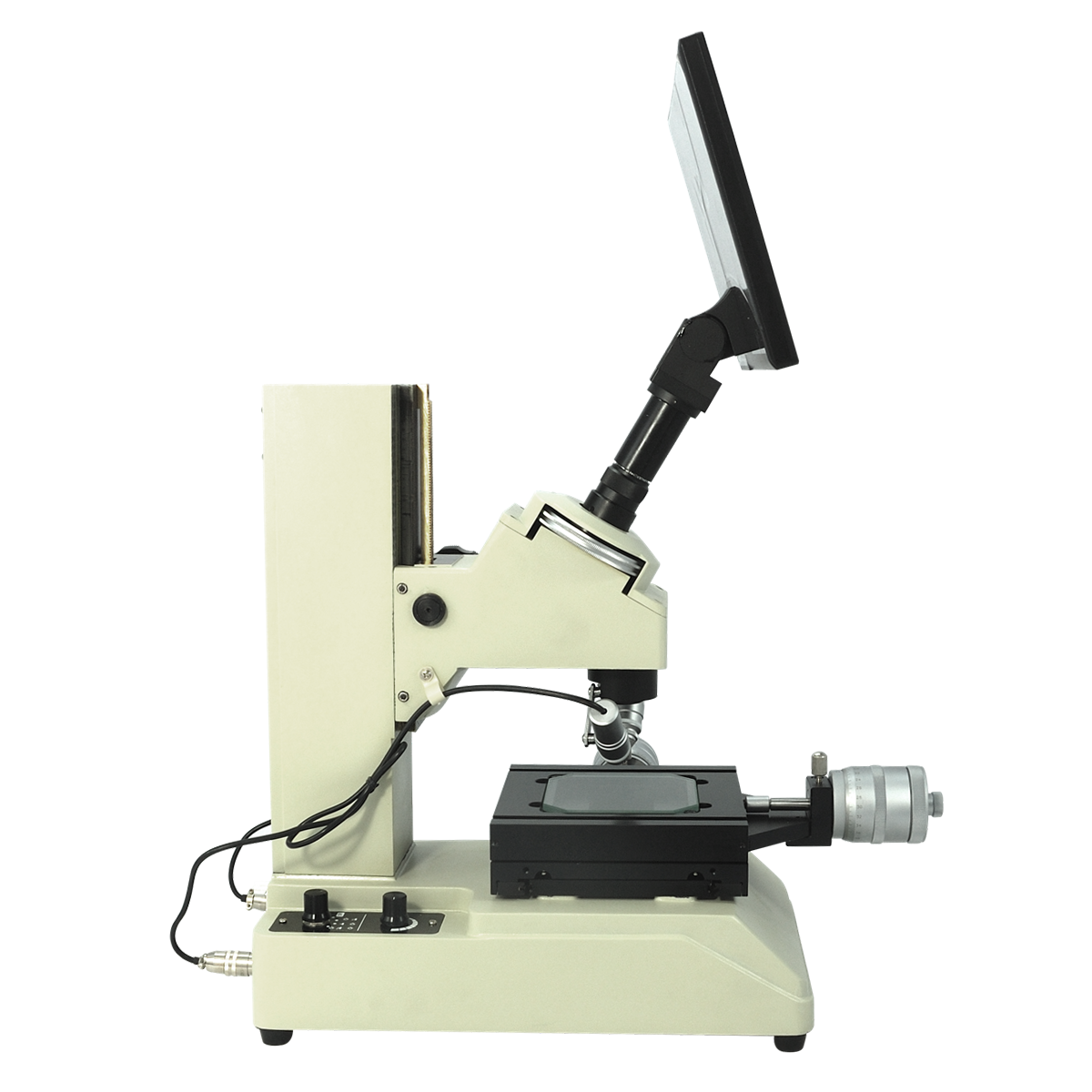

Toolmakers Microscope 30X 93.6X LED Industrial Inspection Measuring + LCD Digital Camera

$4,917.94
Shipping calculated at checkout.
SKU: MS02040101

Condition: New
Warranty: 5/1 Years
Certification:

Technical Overview
Finite. Total Magnification: 30X. 15X Eyepiece. 2X Objective. Eye Tube Angle: 45°. Eyepiece Field of View: Dia. 13mm. XY Stage Travel Distance: 2x2″. XY-Axis Measurement Mode: Micrometer. Illumination Type: LED Dual Illuminated Light . Top Illumination: Oblique Top Light. CMOS. 2.0 Megapixels. Windows XP/7/8/10/11. Screen Size: 11.6in. Input Voltage: AC 100-240V 50/60Hz. Input Voltage: DC 12V.
Low Stock (3)
Toolmakers Microscope 30X 93.6X LED Industrial Inspection Measuring + LCD Digital Camera, SKU MS02040101, three quarter front view
Toolmakers Microscope 30X 93.6X LED Industrial Inspection Measuring + LCD Digital Camera
$4,917.94
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa


Applications
Industrial, Aerospace, Tool Making, Medical & Microbiology, Medical Devices
Order before 12pm PT for same day shipping
5/1 Years Warranty Policy
Return Policy

*Same day shipping is only for items that are in stock

BoliOptics offers World Wide Shipping (We are Based in California, USA)

Shipping Methods
We ship packages using UPS and FedEx. Your order will be shipped per your specified shipping method at check out.

Expedited Shipping
For all expedited shipping services, such as Overnight, Next Day, etc - While we will do our part to ensure the packages are received by the shipping carriers to meet the shipping cut off times, please note that once the package leaves our warehouse, we are no longer responsible for the package. The shipping carrier will be responsible for delivering your package.

Shipping Costs
Your order will be shipped per your selected shipping method, and the shipping fee will be added to your order/invoice. Shipping costs are provided by the shipping carriers and calculated based on shipping location, product dimensions and weight.

Using Your Own Shipping Account
Please input your shipping account number at checkout, if you wish for us to charge the shipping fee to your shipping account. Otherwise, we will ship the product using our shipping account and charge the shipping fee to your invoice.

You may require us to insure packages when shipping under your shipping account. Please note this on your Purchase Order. If packages are shipped using your Shipping Account, and you choose to not insure the packages, or there are no insurance instructions stated on the PO, it is not the responsibility of BoliOptics to pay for any packages that are stolen, or lost/delivered wrong/damaged in transit by the Shipping Carrier.

International Shipping
We offer world wide international shipping. Please specify your desired shipping service at checkout.



SHIPPING & DELIVERY FAQs

When will my order ship?
If the product you purchased is in stock, orders placed online before 12PM (Noon) PST will be shipped on the same business day. Orders placed after 12PM (Noon) will be shipped the following business day.

To ensure your order is shipped as soon as possible and successfully, please check that your shipping address is correct.

Orders placed on the weekend (Saturday and Sunday) and Federal Holidays will be processed on the following business day.

When will Pre-Orders ship?
To get an expected shipping date for pre-orders, please send an email to sales@bolioptics.com

How can I track my order?
We will e-mail you an Order Confirmation once the order has been processed, along with your tracking number.
You can also log into 'My Account' to check the status of orders placed online.

How can I cancel my order before it ships?
If you need to cancel your order, please send an email to sales@bolioptics.com as soon as possible with the Subject Line: CANCEL ORDER # (Your Order #).

Once your order has shipped, meaning you will have received an email with a Status Update that your order has Shipped along with your tracking number, we are unable to cancel your order. You may start a Return once you receive the package.

BoliOptics is not responsible for any damages or delays that may occur while packages are in transit with the shipping carriers. We are not responsible for packages that are lost or delivered to the wrong address by the shipping carrier. We are not responsible for stolen packages.

You are responsible for filing any claims with Shipping Carriers if the order was shipped using your account.

Industry Leading Warranties

BoliOptics microscopes and accessories are manufactured under the strict guidelines established by ISO 9001, ISO13485, ISO14001, or CE (marked per product).

Warranty is only offered for products purchased directly from BoliOptics.

BoliOptics products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:

Lifetime Warranty
Designated products marked lifetime warranty.

5 Year Warranty
Microscopes (except video and digital microscopes) come with a five (5) year factory warranty against manufacturing defects.

5/1 Year Warranty
Products with 5/1 Year Warranty means that the hardware of the microscope is under 5 year warranty, and the electrical and lighting components are under 1 year warranty.

1 Year Warranty
Includes video microscopes, digital microscopes, electrical and electronic products such as light sources, cameras, software, monitors, and electronic components.
Microscope accessories (such as microscope cameras and illuminators) come with a one (1) year warranty, except when specified in the description.

Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc.

Warranty does not cover ordinary wear and tear or damage caused by improper use or accidents (drops).
Warranty does not cover products that have become inoperable due to lack of maintenance.
Warranty is void when products are disassembled, structural parts were opened up, removed, unscrewed, tampered with, or broken during use or in the user's possession.
Warranty is void when product QR Codes or Barcode Stickers containing the Product's Serial Number are removed from the product.

Customers are responsible for round-way shipping for warranty services.



*Please note that we do not perform repairs. If you would like a repair, we can recommend you to third party microscope service and repair companies.*



Warranty Instructions

Please see the Reasons for Warranty:

A. If the reason is due to ordinary wear and tear, damage caused by improper use or accidents (drops), damage due to lack of maintenance, or that the product was disassembled, structural parts were opened up, removed, unscrewed, tampered with, or that the product was broken during use or in the user's possession, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

B. If the time frame is outside of the warranty period, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

C. If the reason is due to manufacturing defects, and the product is within the warranty period,
Email us at sales@bolioptics.com with the following details:
- Your name
- The SKU # of the product
- Photos of the product from the front, sides, and back
- Photo of the serial number on the product, if present

BoliOptics offers a thirty (30) day return window beginning on the date of your purchase.

To receive a 100% refund, items must be returned in New and Original Condition, with all parts, accessories, and original product packaging included.

  • Products missing the original packaging or instruction manuals are subject to a 20% restocking fee.
  • Products missing parts or accessories are subject to a higher restocking fee.
  • Products damaged during use (scratched, chipped, parts broken), disassembled from the original manufacturing or tampered with, are not accepted for returns or refunds. Our return policy does not cover ordinary wear and tear or damage caused by improper use or accidents.
  • Microscope slides, coverslips, and eye guards are non-returnable.
  • Items marked "Final Sale" are not eligible for return or refund due to change of mind. We are committed to ensuring the quality of all our products. If you receive a final sale item that has an issue, please contact us as soon as possible, and we will resolve any issue on a case by case basis.

When packaging the return, protect the item and original packaging.

  • We recommend using the original packaging materials to ensure the product is safe during return shipping.
  • If you do not have the original packaging materials, and there is extra room in the box, fill the extra space with padding (paper or shipping peanuts) so the product won't move around during transportation.

Customers are responsible for the return shipping label cost, if the product was not defective.

It can take up to 7 business days for an item to reach us once you ship it. Once we receive the item, it takes 5-7 business days to process the return and refund.

If you have any questions, please an email us at sales@bolioptics.com



To Start a Return

1. Sign in to your account or Create An Account.

2. Once you are signed in to your account, click the "Start a Return" link below to submit your return request.

3. Once your return request is approved, we will email you with your Return Merchandise Authorization Number (RMA#) and return instructions.

Product Description
Technical Specifications
MS02040101 2x2" Tool Maker Screen Display Measurement Microscope
Optical System Specifications
2x2" Tool Maker Measurement Microscope
Optical SystemFinite
System Optical Magnification30X
Total Magnification30X
Standard Eyepiece15X Eyepiece
Standard Objective2X Objective
System Field of View Dia. 6.5
System Working Distance67mm

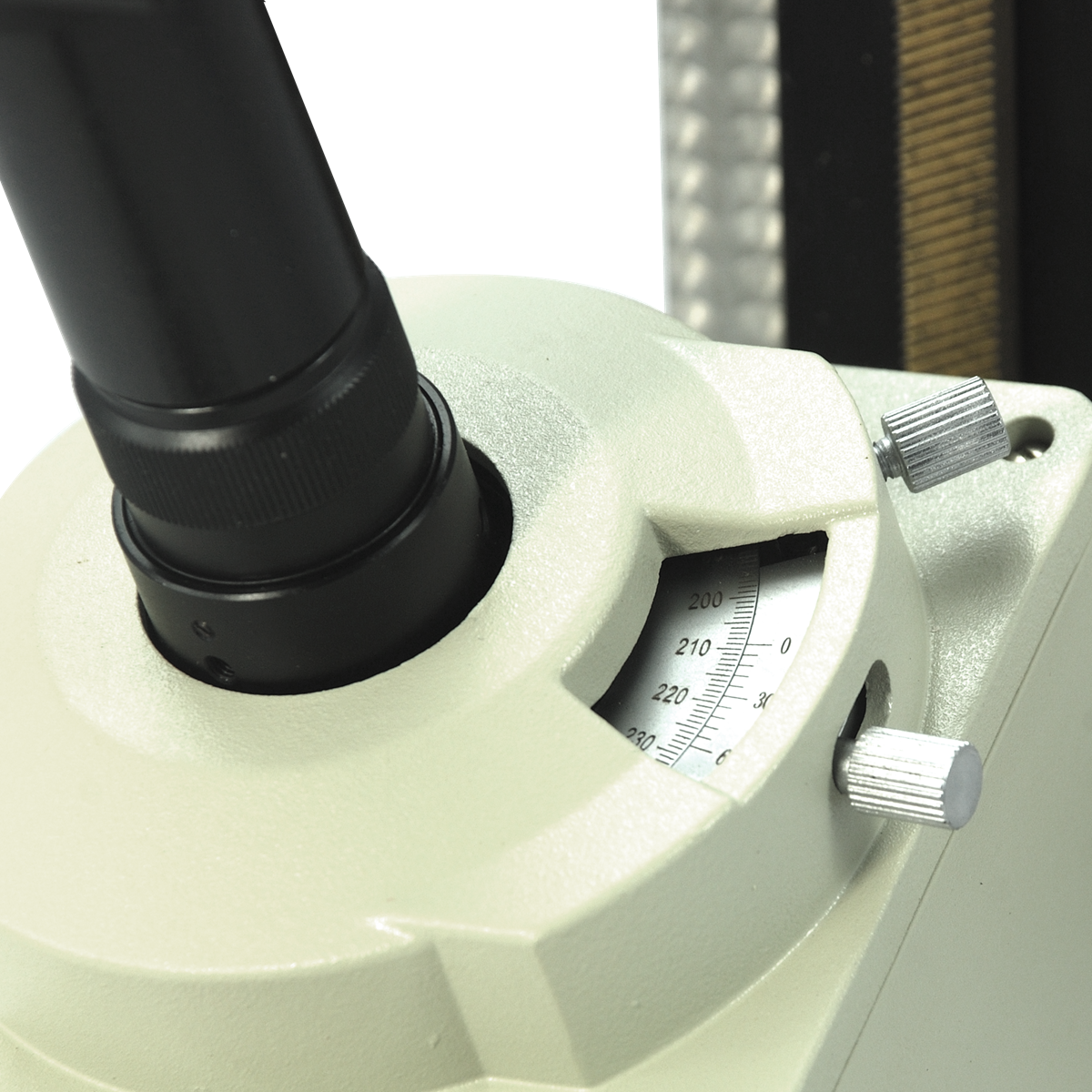

Microscope Eyepiece Tube
2x2" Tool Maker Measurement Microscope
Eye Tube Optical SystemFinite
Eye Tube TypeFor Compound Microscope
Eye Tube Angle45°
Eye Tube RotatableFixed
Eye Tube Inner Diameter Dia. 23mm
Eye Tube Diopter Adjustable±5°
Eye Tube Fixing ModeElastic Tube locking
Eyepiece
15X Eyepiece ( Dia. 23/FN13)
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification15X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 23mm
Eyepiece Field of View Dia. 13mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.02kg (0.04lbs)
Monocular Video Microscope Objective
2X Objective
Objective Optical SystemFinite
Objective Optical Magnification2X
Objective TypeAchromatic Objective
Objective Working Distance67mm
Numerical Aperture (N.A.)N.A. 0.07
Objective Screw ThreadM25x0.5mm
Objective Outer Diameter Dia. 27mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.10kg (0.22lbs)
Applied FieldFor MS2401 Series Microscope
Microscope Stand
2x2" Tool Maker Measurement Microscope
Stand Height320mm
Base TypeTable Base
Base ShapeRectangle
Base Dimensions330x200x70mm

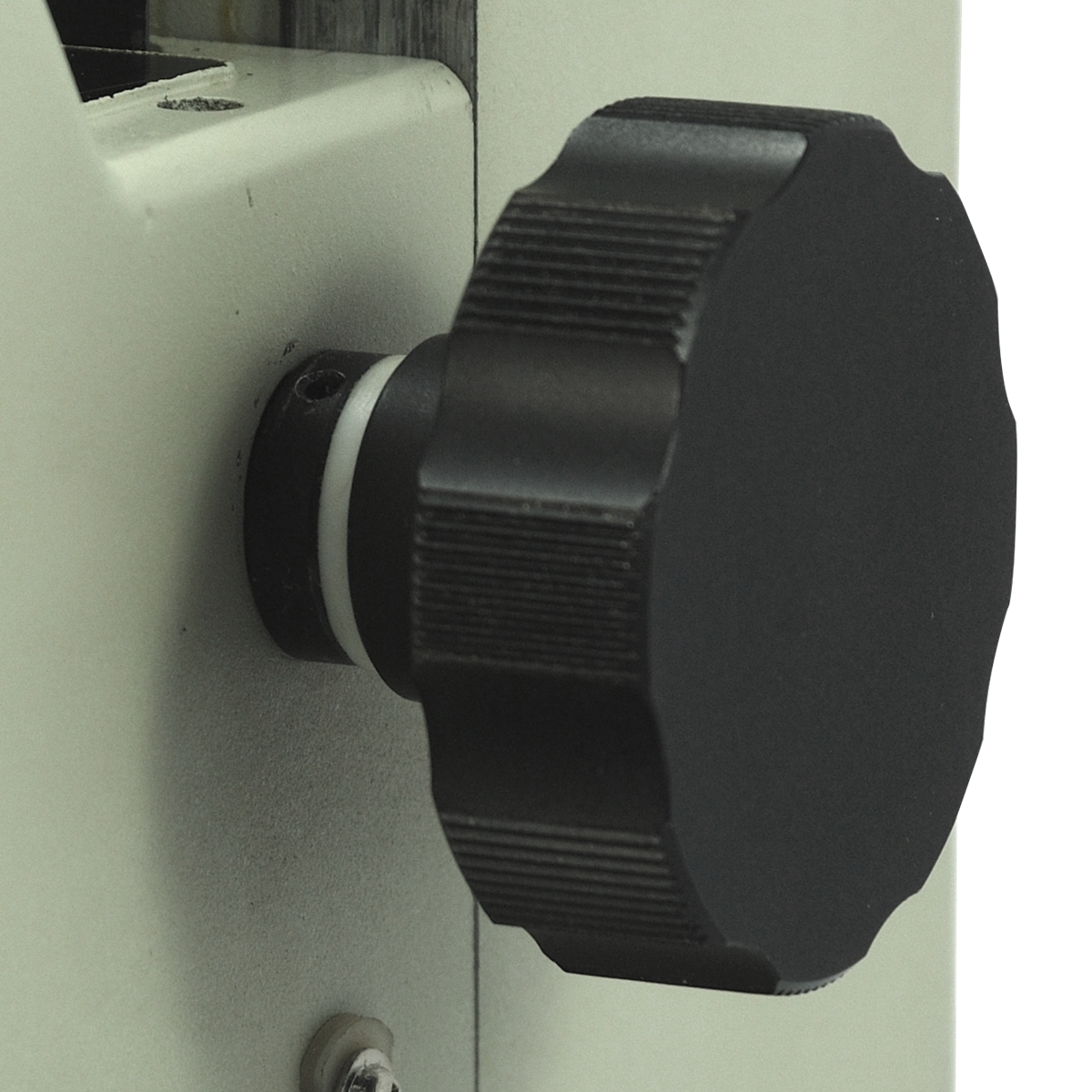

Focus ModeManual
Focus Distance100mm
Coarse Focus Distance per Rotation26mm
XY Measurement Stage
2x2" Measurement Manual Stage
Mounting Holes Position140x70mm
Mounting Hole DimensionsM4
XY Stage Travel Distance2x2 in.
XY-Axis Drive ModeManual
Stage Platform Dimensions150x150mm
Stage Height44mm
Stage Backlight Window Size82x40mm
XY-Axis Measurement ModeMicrometer
Micrometer Head Mount Size Dia. 18mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight2.90kg (6.39lbs)
Mechanical Micrometer Head
25mm/1" Mechanical Micrometer Head
Digital Micrometer Head Measurement Range0-25mm (0-0.984 in. )
Digital Micrometer Head Resolution2μm
Digital Micrometer Head Accuracy1μm
Digital Micrometer Head Spindle Diameter Dia. 8mm
Mechanical Micrometer Head Graduation2μm
Surface TreatmentPolished Chrome
MaterialMetal
ColorBlack
Net Weight0.65kg (1.43lbs)

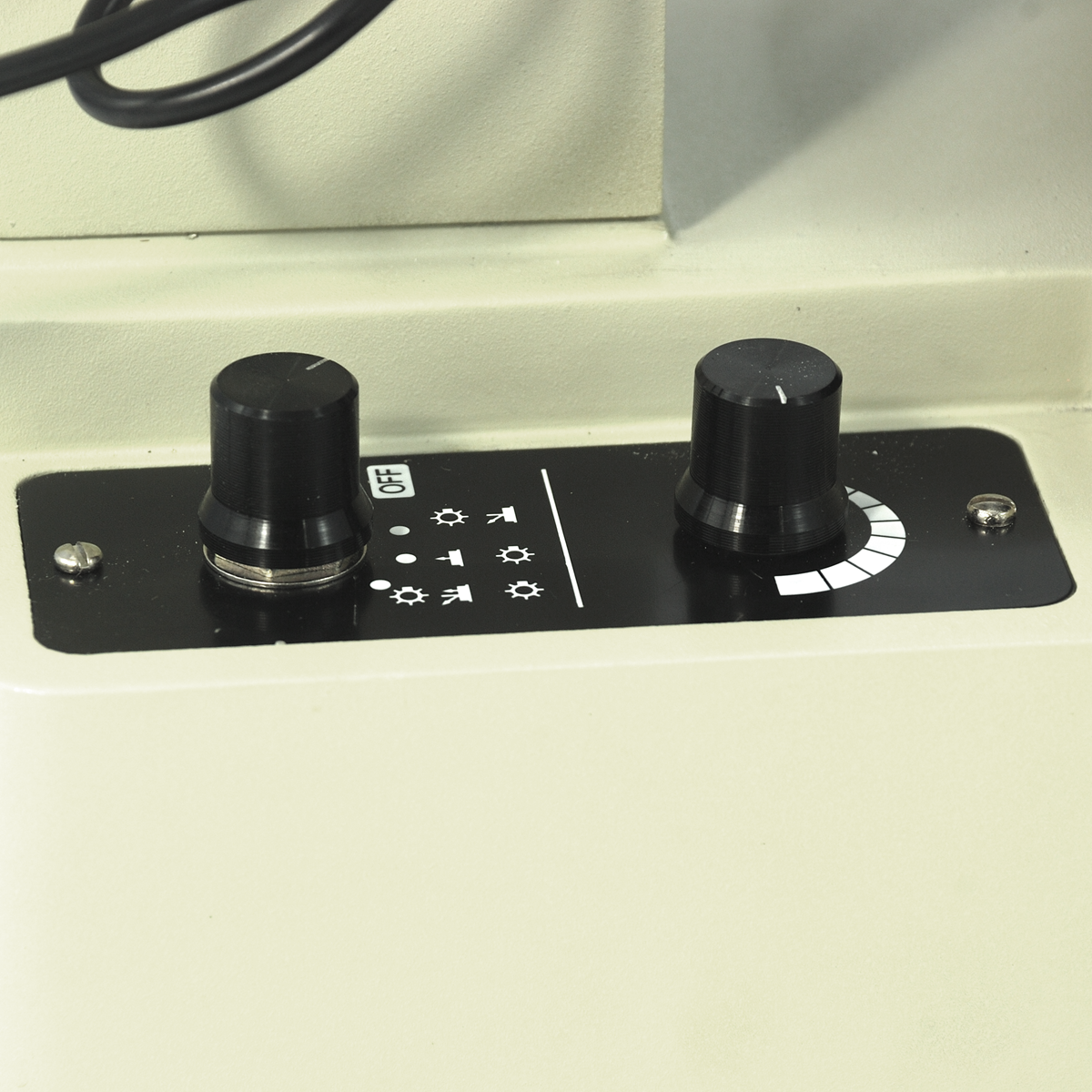

Microscope Illuminator
2x2" Tool Maker Measurement Microscope

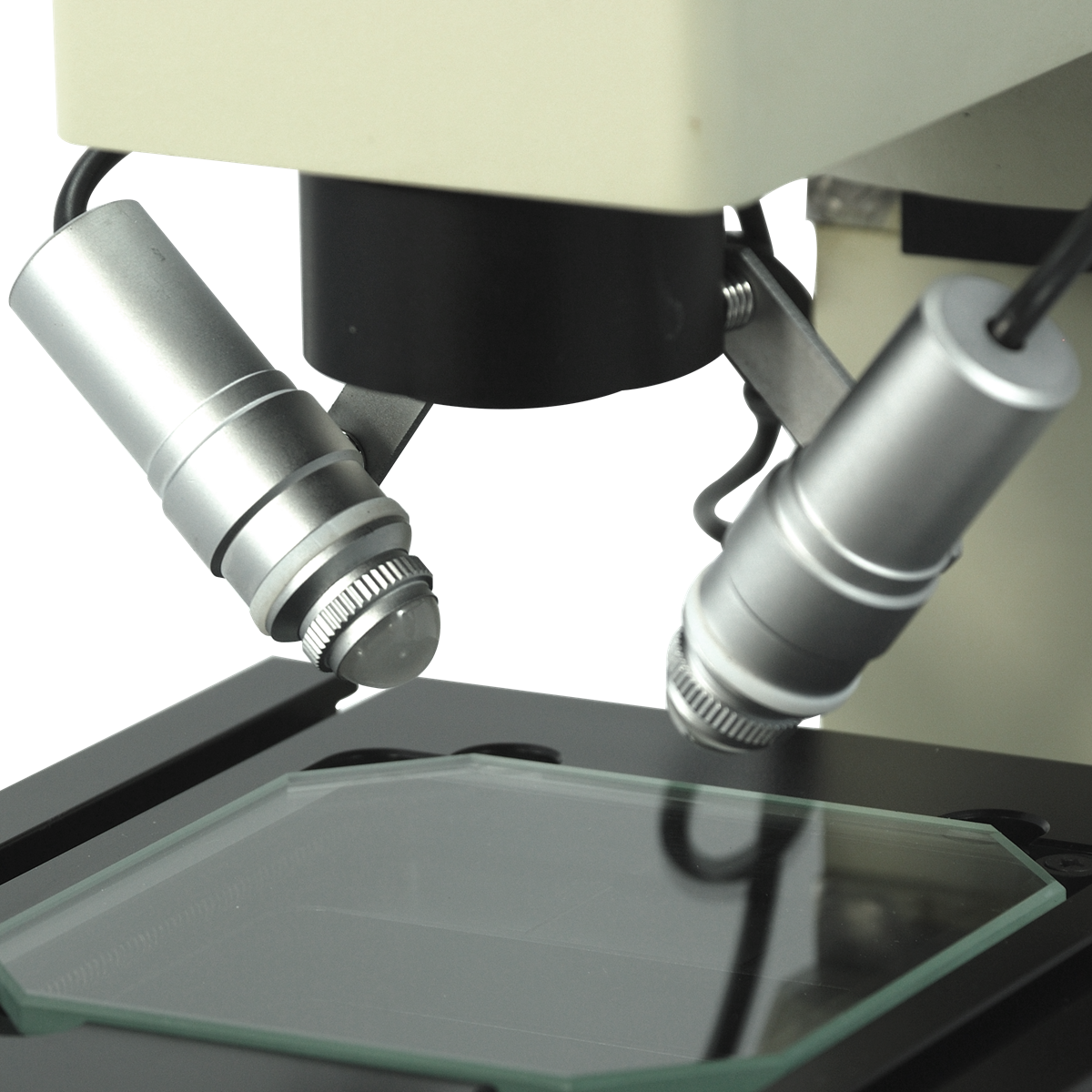

Illumination TypeLED Dual Illuminated Light
Top IlluminationOblique Top Light
Top Illumination TypeLED
Bottom Illumination TypeLED
Coupler/C-mount Adapter
0.3X Coupler for Tool Maker Measurement Microscope
Coupler Mount Type for Eye TubeFastening Screw
Coupler Mount Size for Eye Tube Dia. 23mm
Coupler for Microscope TypeCompound Compatible
Coupler Magnification0.3X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.078kg (0.172lbs)
Applied FieldFor MS2401 Series Microscope
LCD Display Digital Camera
11.6 in. LCD Display Digital Camera
Image SensorCMOS
Image Sensor Size1/2.86 in.
Image Sensor Diagonal size6.592mm (0.260 in. )
Camera Maximum Pixels2.0 Megapixels
Camera Resolution1920x1080
Camera Lens MountCS-Mount
Transmission Frame Rate36fps
White BalanceManual/Auto
Gain ControlAdjustable
Exposure ControlManual/Auto
Camera CrosshairsCross Line
Number of Crosshairs4 Movable Crosshairs
Line ColorUser Defined
Capture FunctionYes
Image Capture Output FormatTIFF/JPG/BMP/PNG
Video Output FormatMP4
System RequirementWindows XP/7/8/10/11
Driver InstallationDriver free
Camera Housing MaterialPlastic
Camera Housing Size40x40x58mm
Camera Housing ColorBlack
Max. Supported Memory Card32G
Screen Size11.6in
Screen Aspect Ratio16:9
Monitor Signal FormatNTSC/PAL Auto-Switch
Monitor Max. Resolution1920x1080
Input VoltageDC 12V
Net Weight0.65kg (1.43lbs)
Dimensions280x200x55mm (11.024x7.874x2.165 in. )
Camera Accessories
11.6 in. LCD Display Digital Camera
C/CS Spacer5mm
Mouse OperationYes
Memory TypeSD
Memory Capacity4G

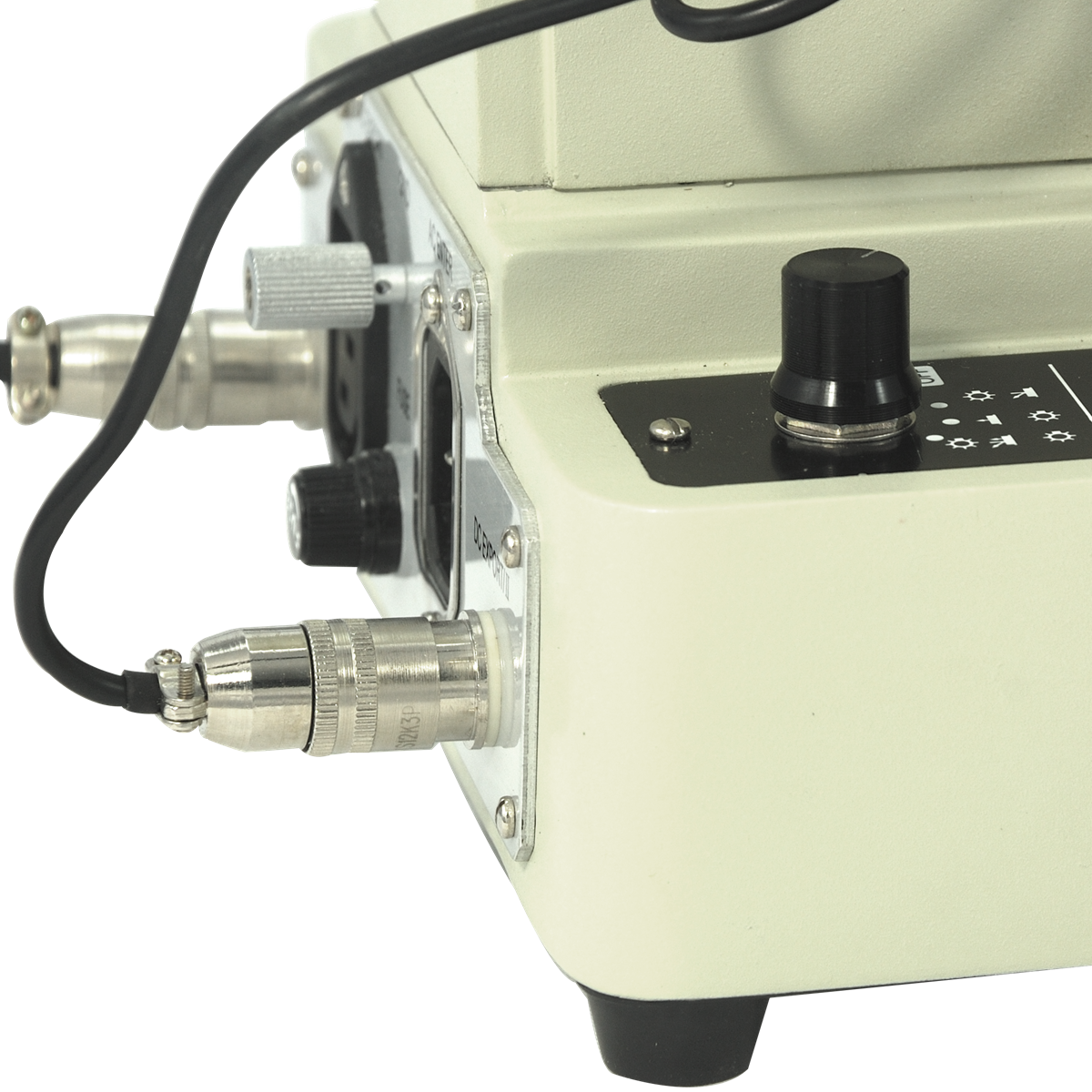

Power Supply
2x2" Tool Maker Measurement Microscope

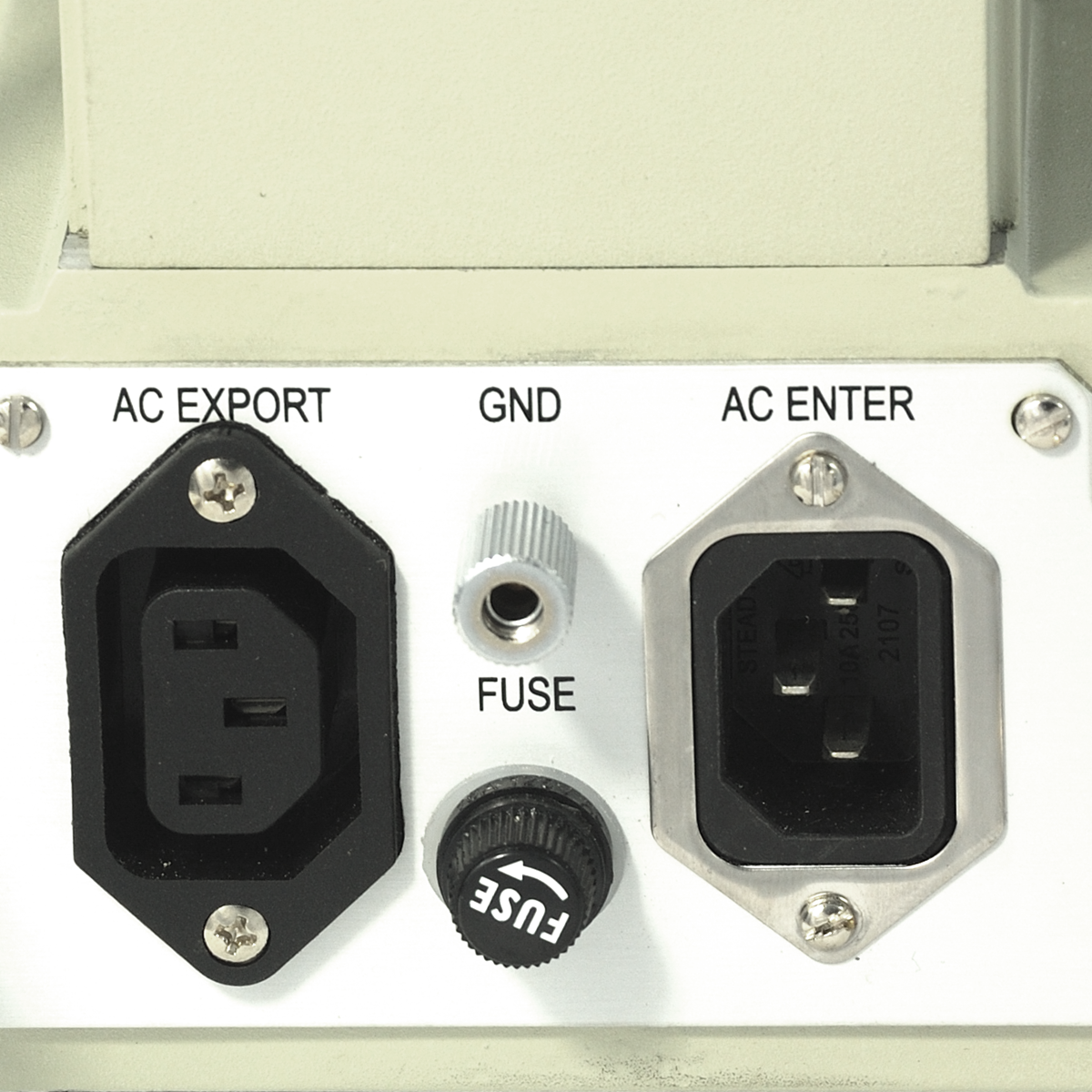

Input VoltageAC 100-240V 50/60Hz
Output VoltageDC 24V
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
Environment Requirement
2x2" Tool Maker Measurement Microscope
Operating Temperature-20~40°C(-4~104°F)
Operating Humidity80%
Other Parameters
2x2" Tool Maker Measurement Microscope
Surface TreatmentSpray Paint
MaterialMetal
ColorWheat
Net Weight13.57kg (29.92lbs)
Dimensions330x200x390 (12.992x7.874x15.354 in. )
Series
MS2401MS02040101
Instruction Manual
MS2401_Measurement_Microscope__Instruction_Manual-English.doc
Contains
Parts Including
PictureP/NProduct Name
MS020414010.3X Coupler for Tool Maker Measurement Microscope
DC4351111111.6″ LCD Display Digital Camera
MS240101012x2" Tool Maker Measurement Microscope
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)41x31.5x47.5cm (16.142x12.402x18.701″)
Packaging Dimensions(2)33x24.5x9cm (12.992x9.646x3.543″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight16.71kg (36.84lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)41x31.5x47.5cm (16.142x12.402x18.701″)
Transportation Carton Dimensions(2)33x24.5x9cm (12.992x9.646x3.543″)
Total Gross Weight of Transportation(kilogram)16.71
Total Gross Weight of Transportation(pound)36.84
Quantity of One Transportation Carton2pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
MS24011202   (15X  Dia. 13mm)
Magnification Field of View(mm)
MS24011301 2X 67mm 30X 6.5mm
MS24011302 5X 33mm 75X 2.6mm
MS24011303 10X 14mm 150X 1.3mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification）
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
MS02041401  (0.3X)
Magnification
MS24011301 2X 0.6X
MS24011302 5X 1.5X
MS24011303 10X 3X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
（mm） （inch）
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (11.6in)
Digital Zoom Function
1/2.86 in. 6.592mm 44.7
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
MS24011301 2X MS02041401 0.3X 1/2.86 in. 6.592mm 11.6in 0.6X 44.7 26.82X 10.99mm
MS24011302 5X MS02041401 0.3X 1/2.86 in. 6.592mm 11.6in 1.5X 44.7 67.05X 4.39mm
MS24011303 10X MS02041401 0.3X 1/2.86 in. 6.592mm 11.6in 3X 44.7 134.1X 2.2mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
