Product Description
Technical Specifications

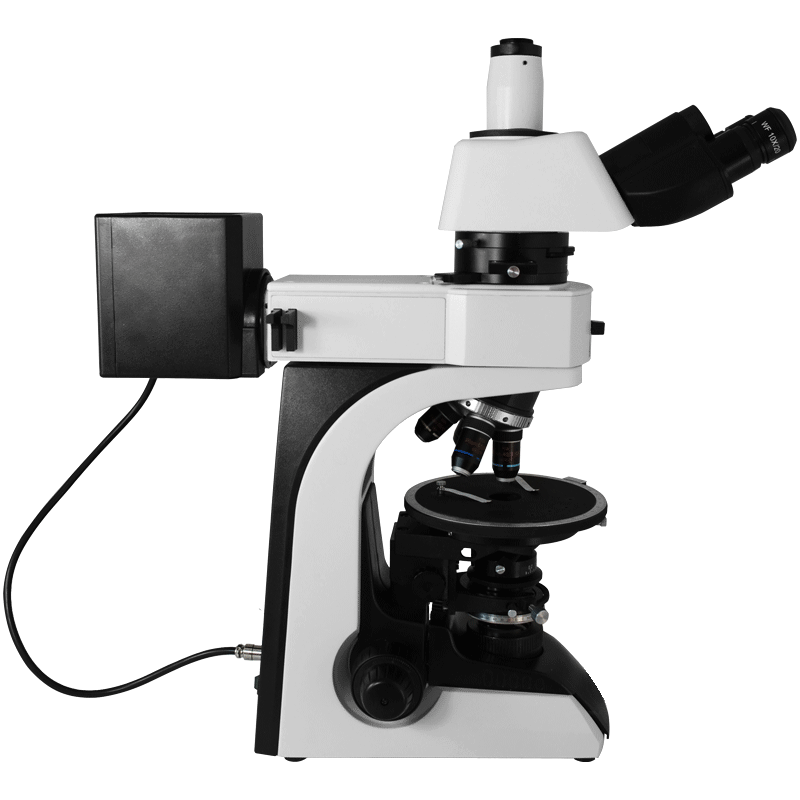

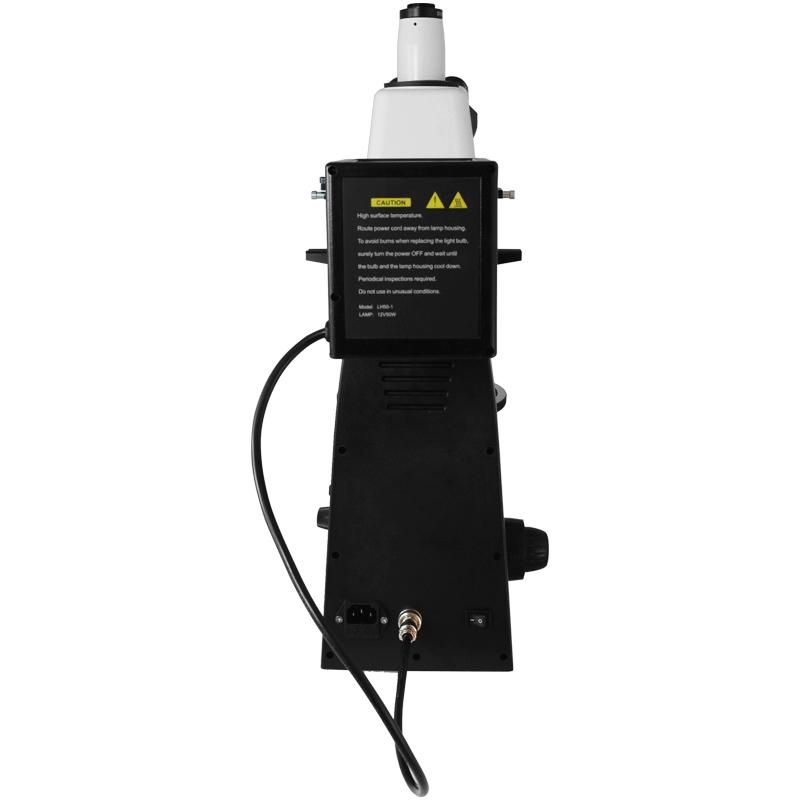

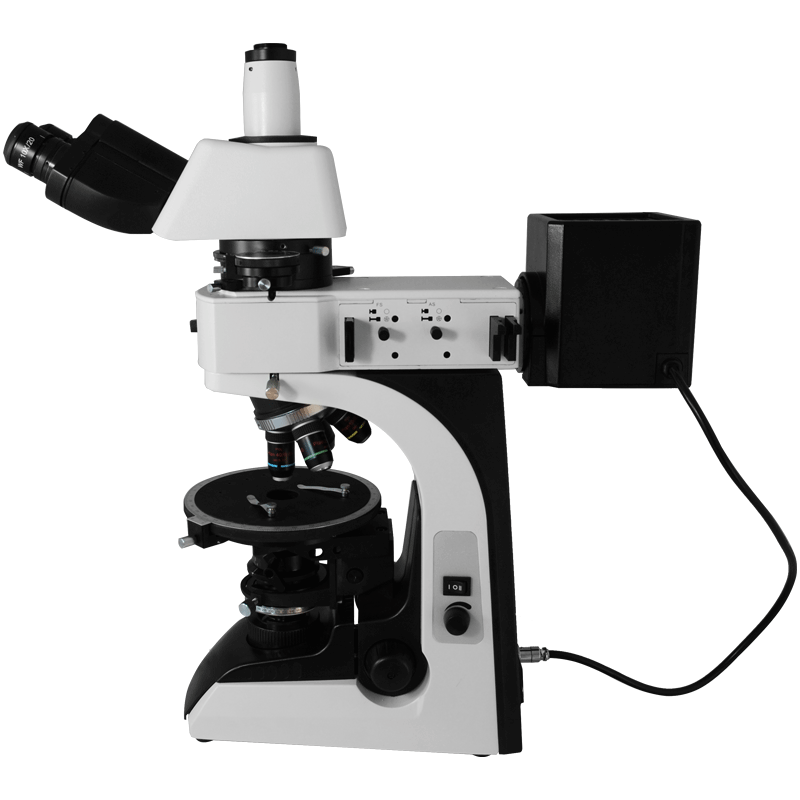

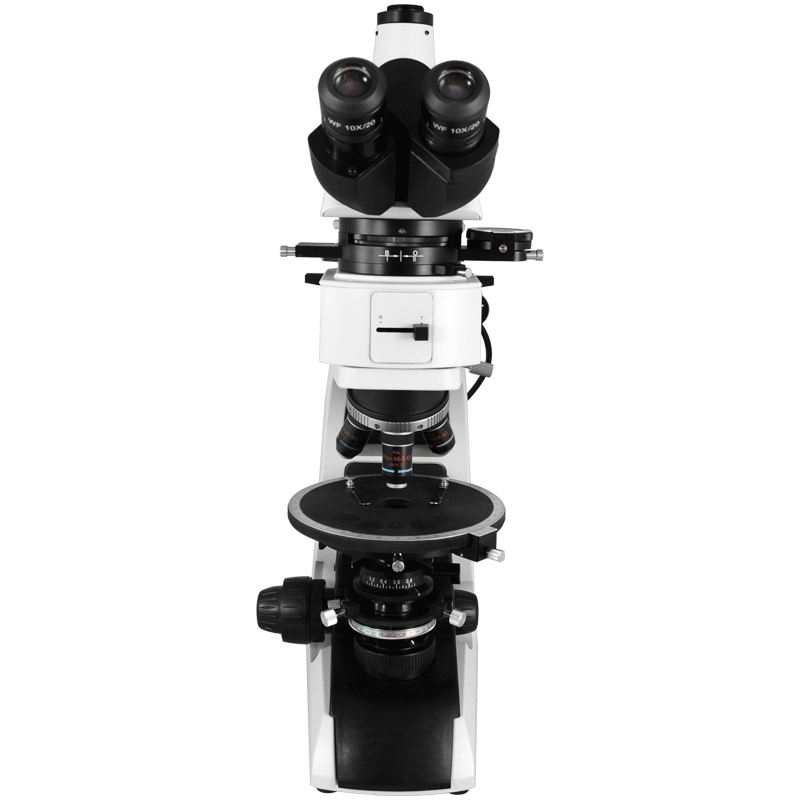

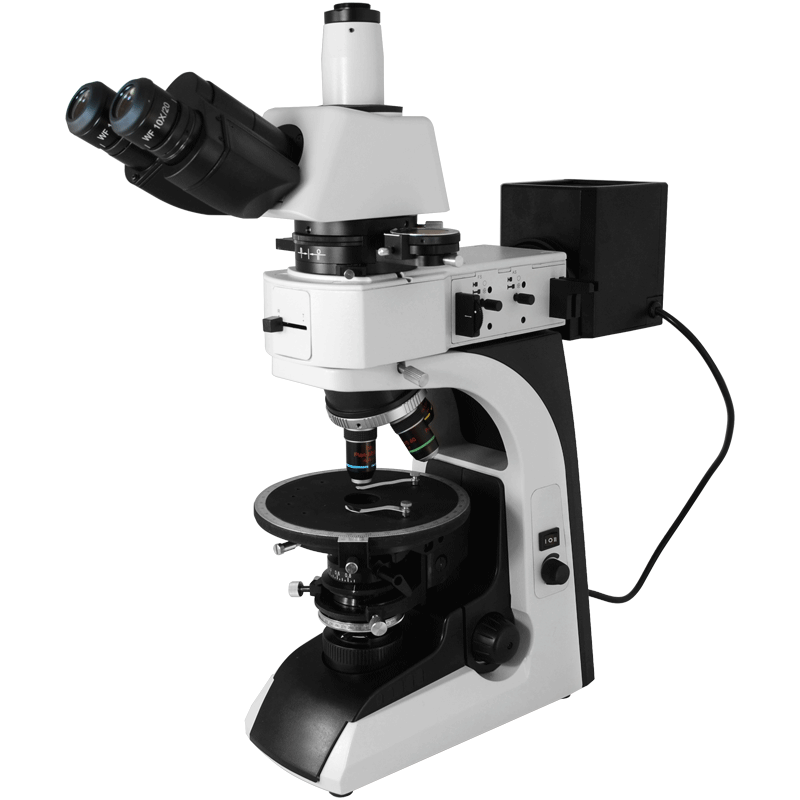

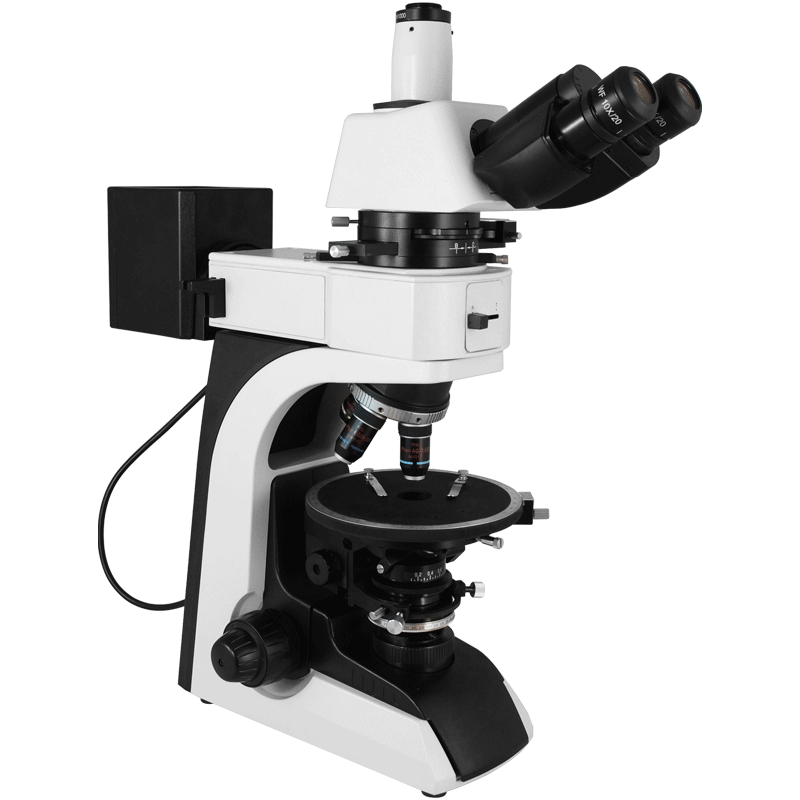

PL04050303 Trinocular Transmitted/Reflected Polarizing Microscope
Optical System Specifications
Optical SystemInfinite
Tube Lens Focal Length200mm
System Optical Magnification40-600X
Expandable System Optical Magnification (Optional Parts Required)40-1000X
Trinocular Optical Magnification1.6-24X
Total Magnification40-600X
Standard Eyepiece10X Adjustable Eyepiece; 10X Reticle Adjustable Eyepiece
Standard Objective4X 10X 20X 40X 60X Infinity Plan Achromatic Polarizing Objective
Standard Coupler0.4X
System Field of View Dia. 3.33-5mm
Expandable System Field of View Dia. 0.2-5mm
Compound Trinocular Head
Compound 20/80 True-Trinocular Head
Eye Tube Optical SystemFinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle30°
Erect/Inverted ImageInverted Image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment50-75mm
Eye Tube Inner Diameter Dia. 23.2mm
Eye Tube Fixing ModeEyetube with Slit
Eye Tube Size for Scope Body/Carrier Dia. 51mm
Image Port Switch Mode20/80 True-Trinocular
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight1.13kg (2.49lbs)
Applied FieldFor PL0405 Series Microscope
Eyepiece
10X Adjustable Eyepiece (Pair Dia. 23.2/FN20)
Eyepiece TypeAdjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 23.2mm
Eyepiece Field of View Dia. 20mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 20mm
Eyepiece Diopter Correction±5°
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.10kg (0.22lbs)
10X Reticle Adjustable Eyepiece ( Dia. 23.2/FN20)
Eyepiece TypeReticle Adjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 23.2mm
Eyepiece Field of View Dia. 20mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 20mm
Eyepiece Diopter Correction±5°
Reticle TypeCross Line
Reticle Dimensions Dia. 20x1.5mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.05kg (0.11lbs)
10X Reticle Adjustable Eyepiece ( Dia. 23.2/FN20)
Eyepiece TypeReticle Adjustable Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 23.2mm
Eyepiece Field of View Dia. 20mm
Eyepoint TypeHigh Eyepoint Eyepiece
Eyepiece Size for Reticle Dia. 20mm
Eyepiece Diopter Correction±5°
Reticle TypeX-Axis Crosshair Scale
Reticle Dimensions Dia. 20x1.5mm
Scale Range10mm/100 Div
Division Value0.1mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.05kg (0.11lbs)
Polarizing Objective
4X Infinity Plan Achromatic Polarizing Objective
Objective Optical SystemInfinite
Objective Optical Magnification4X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance13.21mm
Numerical Aperture (N.A.)N.A. 0.10
Objective Cover Glass Thickness/-
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 22mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.04kg (0.09lbs)
Applied FieldFor PL0405 Series Microscope
10X Infinity Plan Achromatic Polarizing Objective
Objective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance5.03mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Cover Glass Thickness/-
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 22mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.06kg (0.13lbs)
Applied FieldFor PL0405 Series Microscope
20X Infinity Plan Achromatic Polarizing Objective
Objective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective Working Distance2.71mm
Numerical Aperture (N.A.)N.A. 0.40
Objective Cover Glass Thickness0.17
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 22mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.07kg (0.15lbs)
Applied FieldFor PL0405 Series Microscope
40X Infinity Plan Achromatic Polarizing Objective
Objective Optical SystemInfinite
Objective Optical Magnification40X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance0.72mm
Numerical Aperture (N.A.)N.A. 0.65
Objective Cover Glass Thickness0.17
Objective Immersion MediaDry Objective
Spring Mounted ObjectiveSpring Mounted objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 22mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.08kg (0.18lbs)
Applied FieldFor PL0405 Series Microscope
60X Infinity Plan Achromatic Polarizing Objective
Objective Optical SystemInfinite
Objective Optical Magnification60X
Objective TypePlan Achromatic Objective
Objective Parfocal Distance45mm
Objective for Focal Length200mm
Objective Working Distance0.69mm
Numerical Aperture (N.A.)N.A. 0.80
Objective Cover Glass Thickness0.17
Objective Immersion MediaDry Objective
Spring Mounted ObjectiveSpring Mounted objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 22mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.08kg (0.18lbs)
Applied FieldFor PL0405 Series Microscope
Nosepiece
Inward/Outward NosepieceNosepiece Inward
Number of Holes on NosepieceQuadruple (4) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveRMS Standard (4/5 in. x1/36 in. )
Microscope Stand
Stand Height300mm
Base TypeIllumination Base
Base ShapeRectangle
Base Dimensions160x280x80mm
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance24mm
Fine Focus Travel DistanceSame as Focus Distance
Coarse Focus Distance per Rotation40mm (1.575 in. )
Fine Focus Distance per Rotation0.2mm
Fine Focus Minimum Scale2μm
Focusing Knob Tightness AdjustableTightness Adjustable

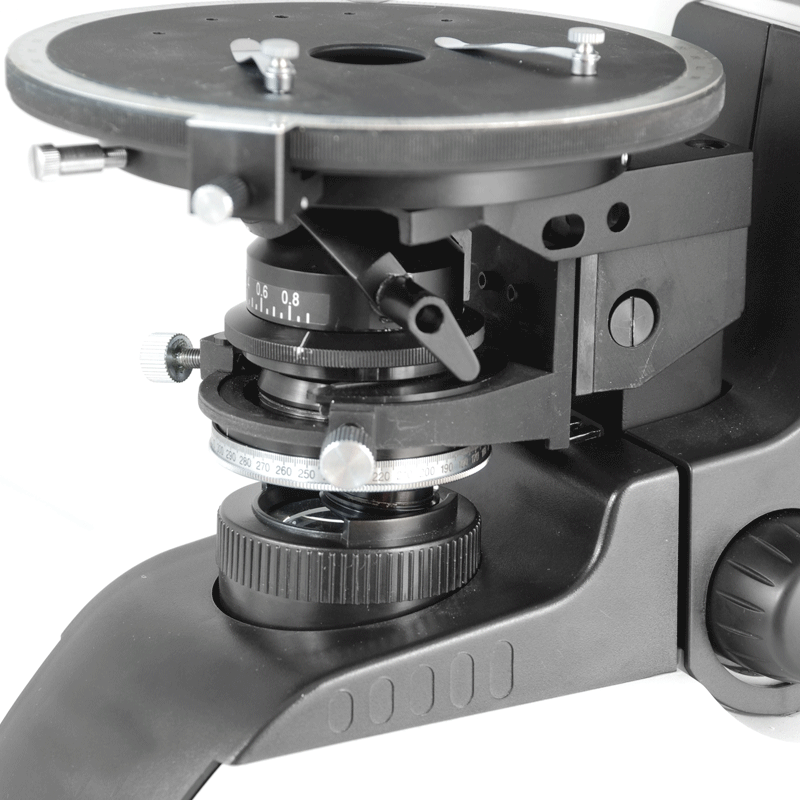

Microscope Stage
Rotary Stage Top Diameter Dia. 160mm
Rotary Stage Height10mm
Rotary Stage Click Stop360° Click Stop Function
Rotary Stage Angle Graduate360°Graduated in 1° increments
Rotary Minimum Angle0.1°
Rotary Stage LockLockable in Any Position
Opening Size of Stage Specimen HolderOpening 0-90mm
Microscope Illuminator
Illumination TypeHalogen Transmitted/Reflection Light
Transmission LightKohler Illumination
Transmission Light Source TypeHalogen Light
Aperture Diaphragm Mounting PositionVertical Illuminator
Aperture Diaphragm Outer Diameter Dia. 60mm
Field Diaphragm Mounting PositionVertical Illuminator
Field Diaphragm Outer Diameter Dia. 62mm
Number of Filter Slots1
Filter Switch TypeEmbedded Type

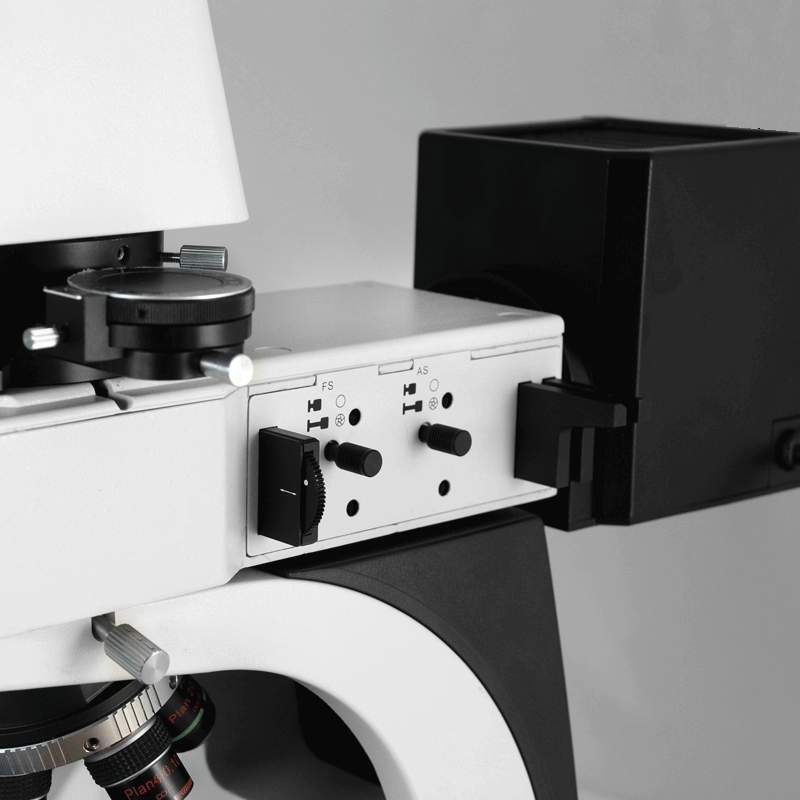

Vertical Illuminator
Illuminator Mount Type for BodyFastening Screw
Illuminator Mount Size for Body Dia. 46mm
Illuminator Mount Type for Eye TubeFastening Screw
Illuminator Mount Size for Eye Tube Dia. 55mm
Coaxial Reflection Light TypeBright Field
Coaxial Reflection Illuminator Light Source TypeHalogen Light
Coaxial Reflection Illuminator Input VoltageDC 6V
Coaxial Reflection Illuminator Output Power20W
Lamp House Light Center AdjustableLamp House Light Center Adjustable
Aperture Diaphragm Mounting PositionVertical Illuminator
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight1.94kg (4.28lbs)

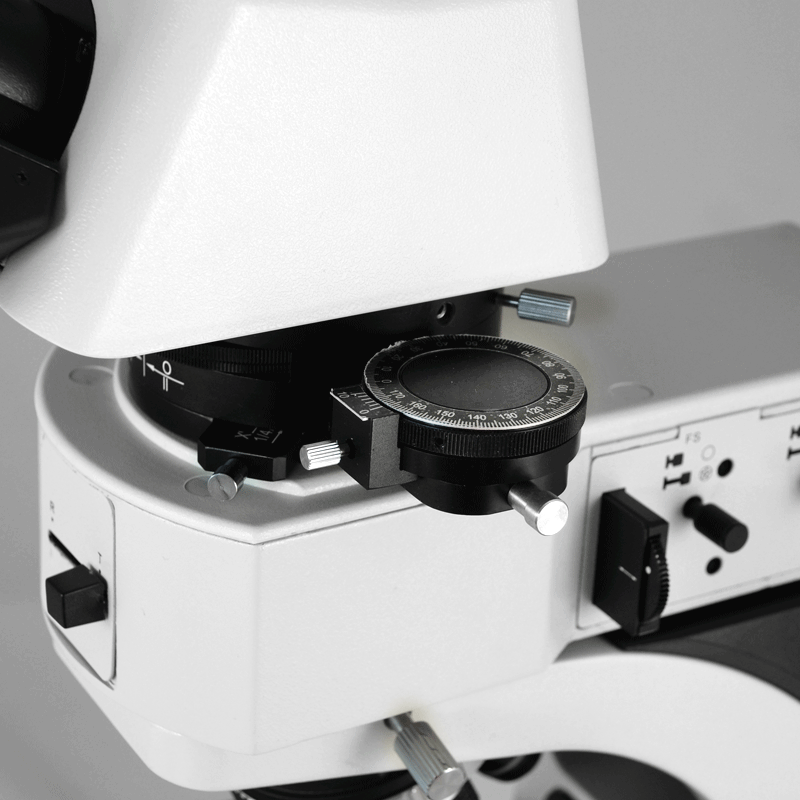

Polarizing Kit
Polarizer Rotation Range360°
Polarizer Mount Size30x6.5mm
Analyzer Rotation Range180°
Analyzer Locking DeviceYes
Analyzer Mount Size34x8mm
Net Weight0.19kg (0.42lbs)
Applied FieldFor PL0405 Series Microscope
Quartz Wedge
Quartz Wedge1/4 Wavelength Retardation Plate
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.02kg (0.04lbs)
Applied FieldFor PL0405 Series Microscope
Condenser
Condenser TypeAbbe Condenser
Dry/Oil TypeDry
Applicable Range of Objective4-100X
Condenser AdjustableAdjustable
Condenser Top LensSwing-out Top Lens
Condenser Max. Numerical ApertureN.A. 0.90
Condenser Mounting Flange SizeFastening Screw
Condenser Base Travel Distance on Z-Axis20mm
Number of Filter Slots1
Filter Switch TypeEmbedded Type
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.14kg (0.30lbs)
Applied FieldFor PL0405 Series Microscope
0.4X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 30mm
Coupler for Microscope TypeCompound Compatible
Coupler Magnification0.4X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.05kg (0.11lbs)
Applied FieldFor BM0406, PL0405 Series Microscope
Power Supply
Output Power70W
Input VoltageAC 100-240V 50/60Hz
Output VoltageDC 12V
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
Environment Requirement
Operating Temperature0~40°C(32~104°F)
Operating Humidity85%
Other Parameters
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight11.05kg (24.36lbs)
Dimensions160x280x480mm (6.299x11.024x18.898 in. )
Series
PL0405PL04050303
Contains
Parts Including
PictureP/NProduct Name
BM040641310.4X Coupler
MT04056101Vertical Illuminator
PL04051321Compound 20/80 True-Trinocular Head
PL0405222110X Adjustable Eyepiece (Pair Φ23.2/FN20)
PL0405224110X Reticle Adjustable Eyepiece (Φ23.2/FN20)
PL0405224210X Reticle Adjustable Eyepiece (Φ23.2/FN20)
PL040532314X Infinity Plan Achromatic Polarizing Objective
PL0405333110X Infinity Plan Achromatic Polarizing Objective
PL0405343120X Infinity Plan Achromatic Polarizing Objective
PL0405353140X Infinity Plan Achromatic Polarizing Objective
PL0405363160X Infinity Plan Achromatic Polarizing Objective
PL04055351Condenser
PL04056121Polarizing Kit
PL04056143Quartz Wedge
Desiccant Bag1 Bag
Allen KeyM1.5 1pc M2.5 1pc M3 1pc
Dust Cover1pc
Spare Bulb2pc
Product Instructions/Operation Manual1pc
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)52x42x43cm (20.472x16.535x16.929″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsStyrofoam
Gross Weight14.36kg (31.66lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)52x42x43cm (20.472x16.535x16.929″)
Total Gross Weight of Transportation(kilogram)14.36
Total Gross Weight of Transportation(pound)31.66
Quantity of One Transportation Carton1pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
PL04052221   (10X  Dia. 20mm) PL04052241   (10X  Dia. 20mm) PL04052242   (10X  Dia. 20mm)
Magnification Field of View(mm) Magnification Field of View(mm) Magnification Field of View(mm)
PL04053231 4X 13.21mm 40X 5mm 40X 5mm 40X 5mm
PL04053331 10X 5.03mm 100X 2mm 100X 2mm 100X 2mm
PL04053431 20X 2.71mm 200X 1mm 200X 1mm 200X 1mm
PL04053531 40X 0.72mm 400X 0.5mm 400X 0.5mm 400X 0.5mm
PL04053631 60X 0.69mm 600X 0.33mm 600X 0.33mm 600X 0.33mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
BM04064131  (0.4X)
Magnification
PL04053231 4X 1.6X
PL04053331 10X 4X
PL04053431 20X 8X
PL04053531 40X 16X
PL04053631 60X 24X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (24in)
Digital Zoom Function
1/3 in. 6mm 101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
PL04053231 4X BM04064131 0.4X 1/3 in. 6mm 24in 1.6X 101.6 162.56X 3.75mm
PL04053331 10X BM04064131 0.4X 1/3 in. 6mm 24in 4X 101.6 406.4X 1.5mm
PL04053431 20X BM04064131 0.4X 1/3 in. 6mm 24in 8X 101.6 812.8X 0.75mm
PL04053531 40X BM04064131 0.4X 1/3 in. 6mm 24in 16X 101.6 1625.6X 0.38mm
PL04053631 60X BM04064131 0.4X 1/3 in. 6mm 24in 24X 101.6 2438.4X 0.25mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
