Product Description
Technical Specifications

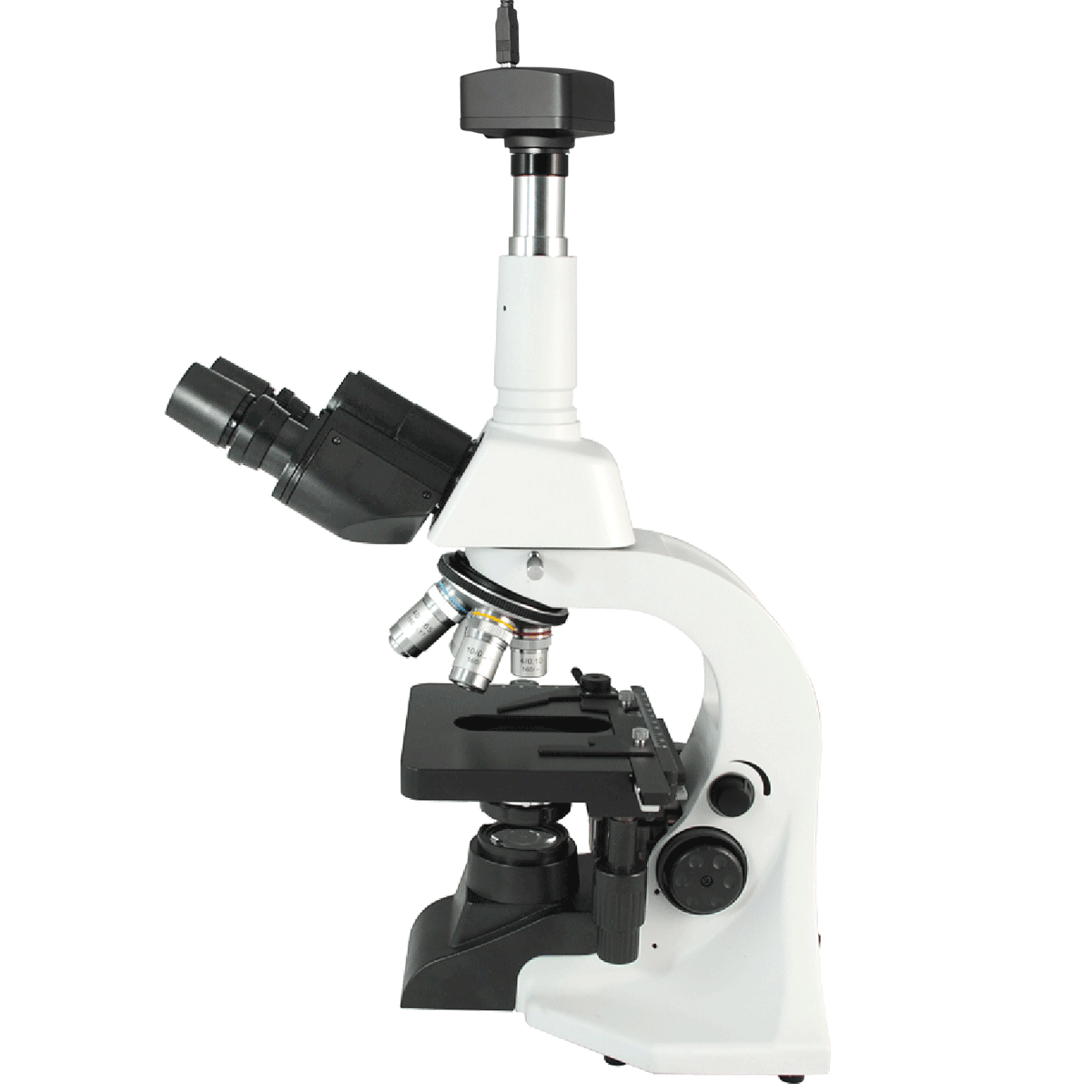

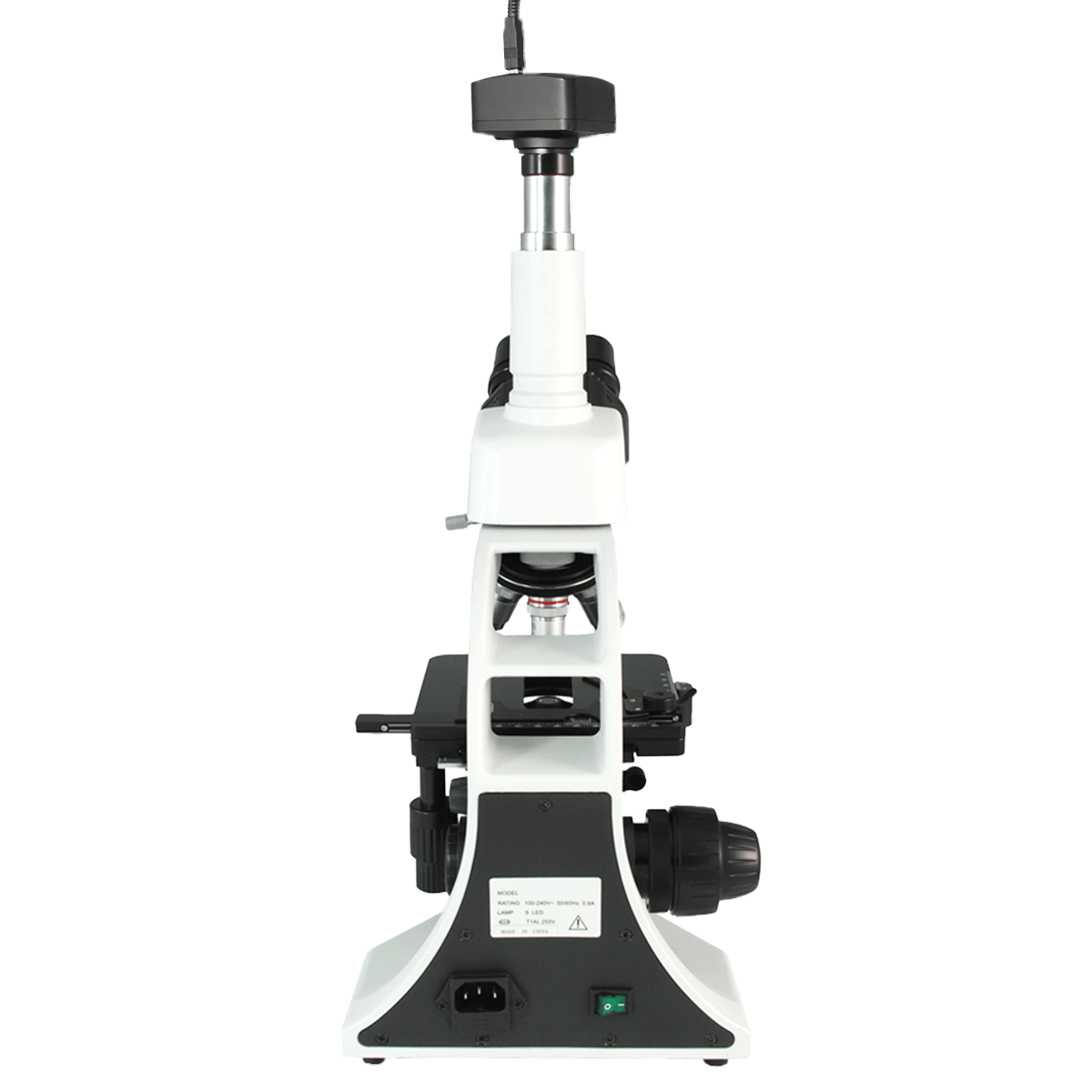

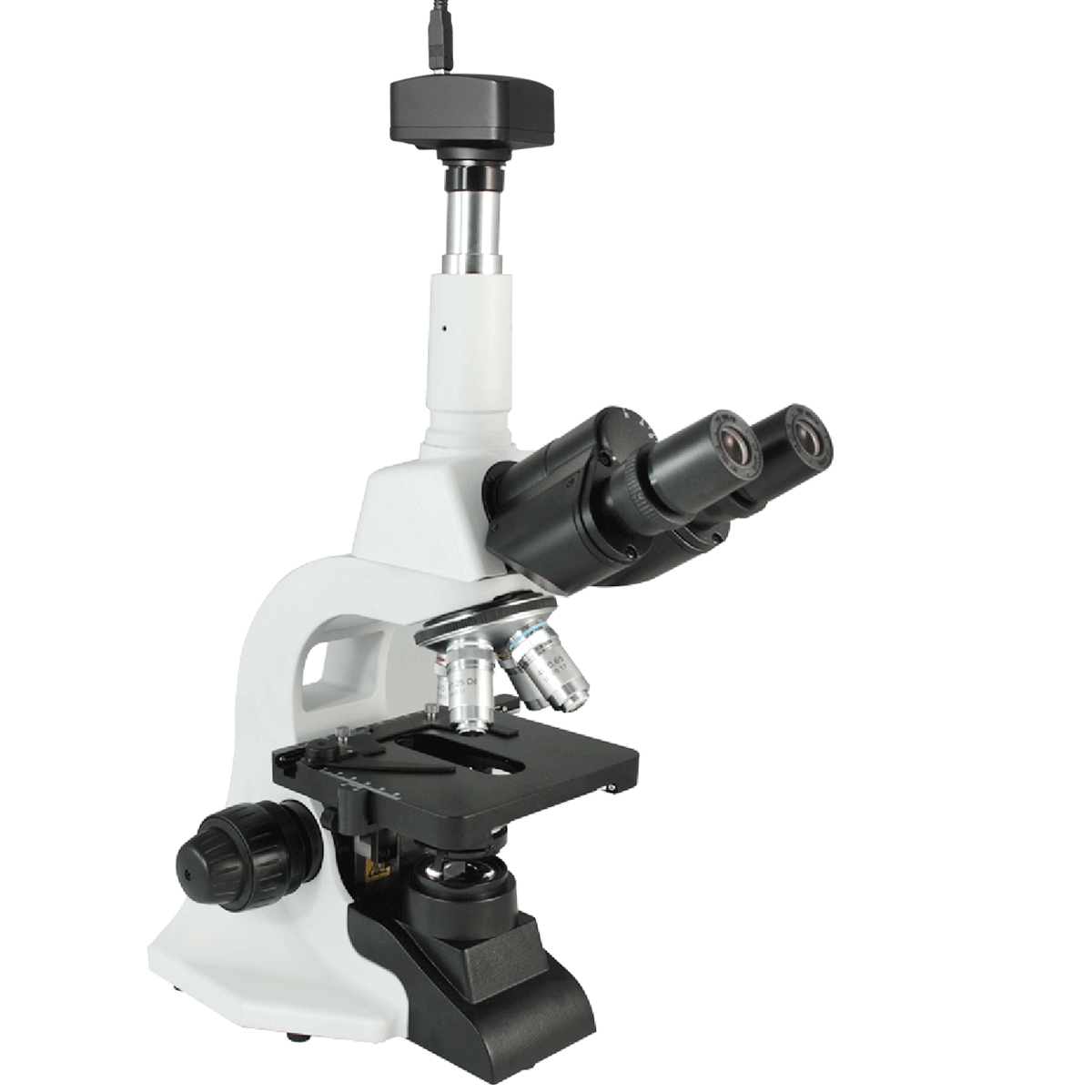

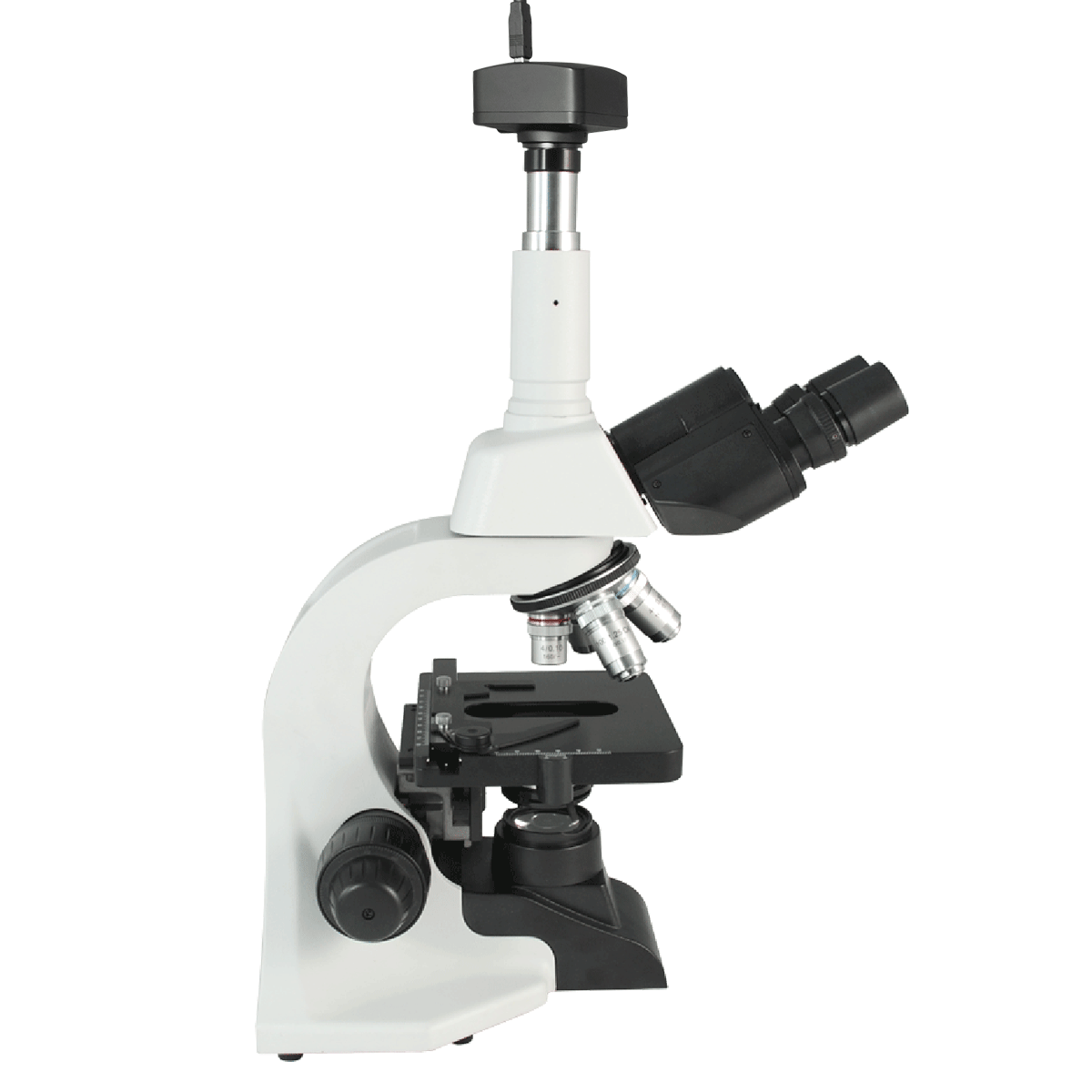

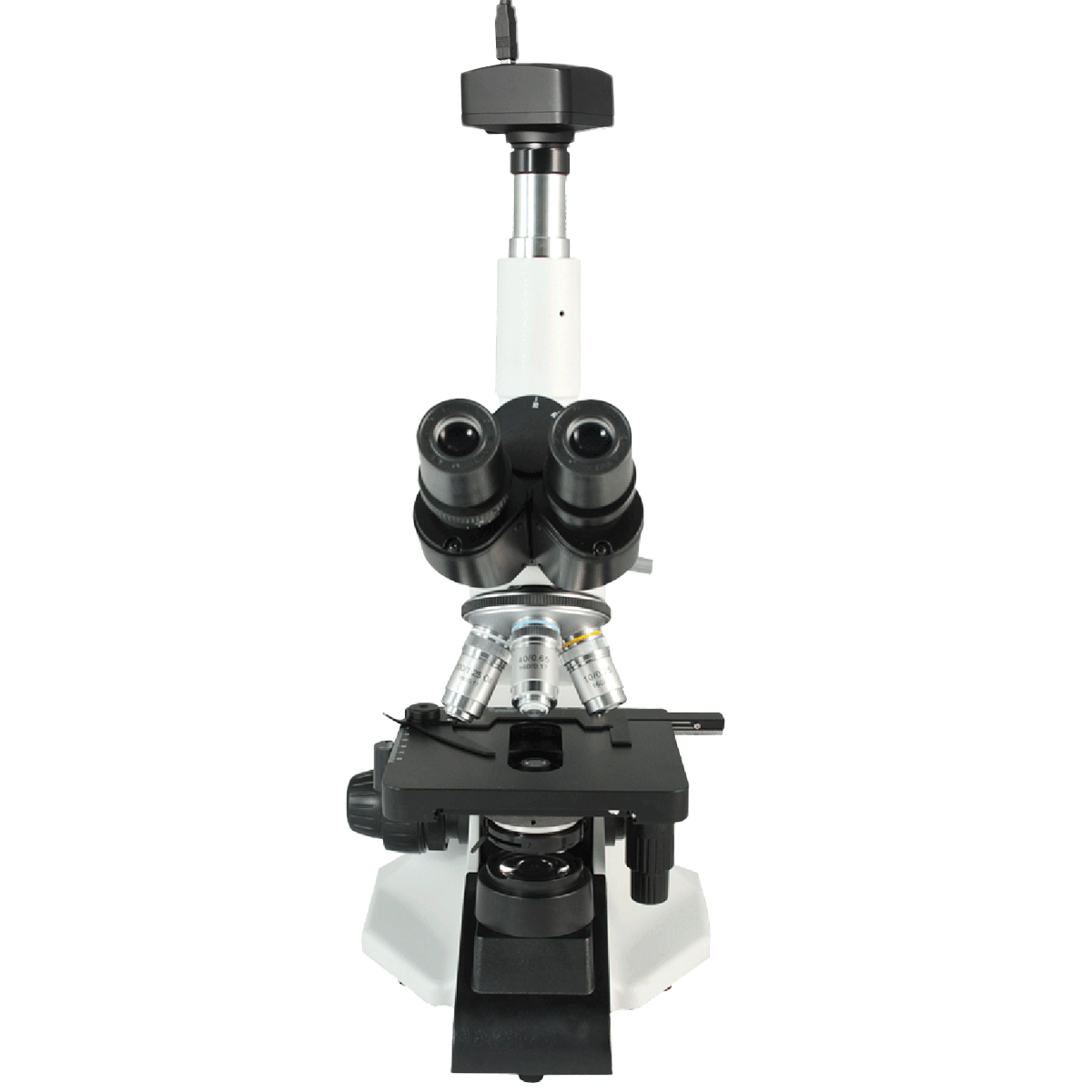

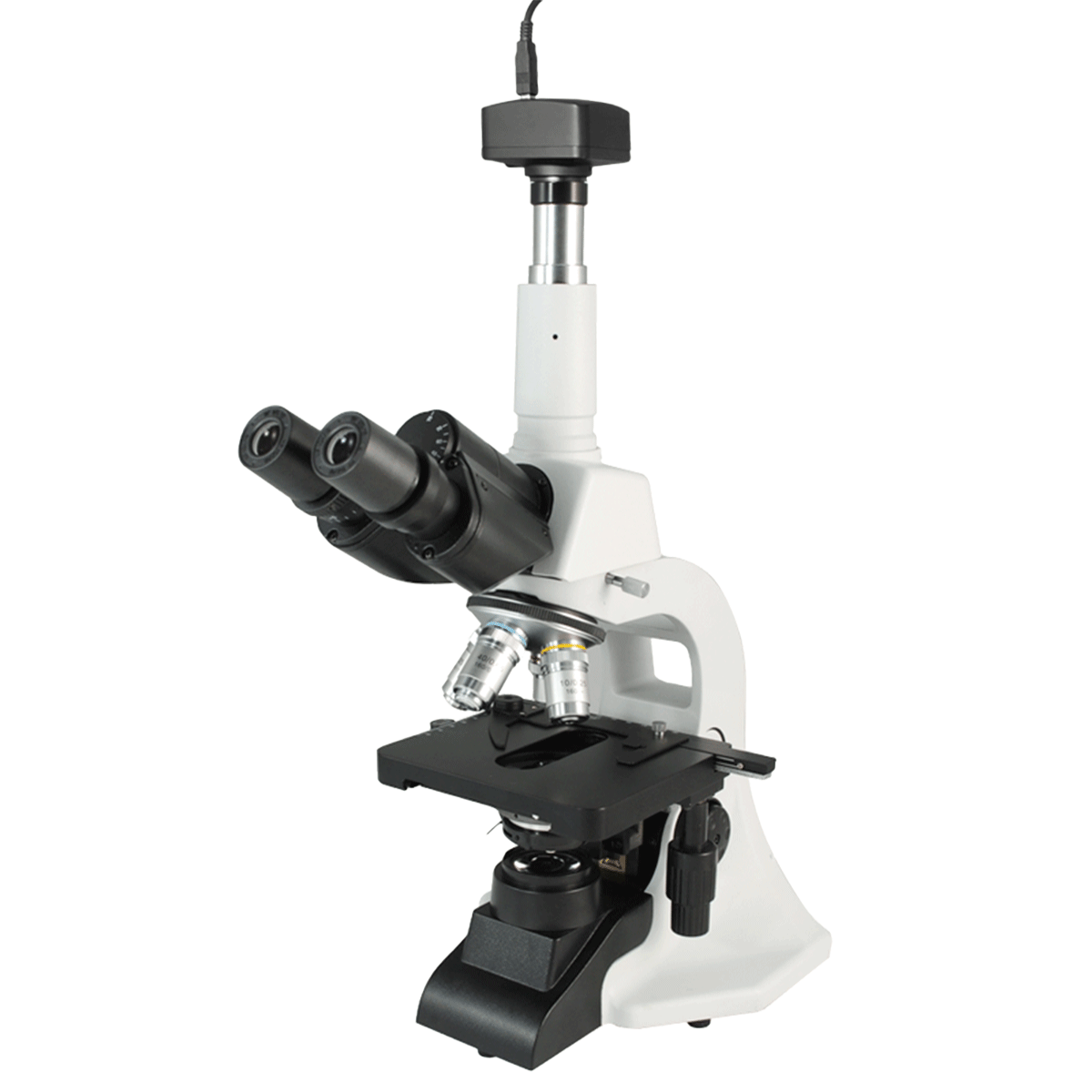

BM02030301 Trinocular Biological Microscope
Optical System Specifications
Trinocular Biological Microscope
Optical SystemFinite
Mechanical Tube Length160mm
System Optical Magnification40-1000X
Expandable System Optical Magnification (Optional Parts Required)40-1600X
Trinocular Optical Magnification2-50X
Total Magnification40-1000X
Standard Eyepiece10X Eyepiece
Standard Objective4X 10X 40X 100X Achromatic Objective
Standard Coupler0.5X
System Field of View Dia. 0.18-4.5mm
Expandable System Field of View Dia. 0.12-4.5mm
System Working Distance0.098-26.9mm
Expandable System Working Distance0.13-26.9mm
Compound Trinocular Head
Compound 20/80 True-Trinocular Head
Eye Tube Optical SystemFinite
Eye Tube TypeFor Compound Microscope
Eye Tube Adjustment ModeSiedentopf
Eye Tube Angle30°
Erect/Inverted ImageInverted Image
Eye Tube Rotatable360° Degree Rotatable
Interpupillary Adjustment48-75mm
Eye Tube Inner Diameter Dia. 23.2mm
Eye Tube Diopter AdjustableLeft ±5°, Right Not Adjustable
Eye Tube Size for Scope Body/Carrier Dia. 49mm
Image Port Switch Mode20/80 True-Trinocular
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight0.65kg (1.43lbs)
Applied FieldFor BM0401 Series Microscope
Eyepiece
10X Eyepiece (Pair Dia. 23.2/FN18)
Eyepiece TypeStandard Eyepiece
Eyepiece Optical Magnification10X
Plan EyepiecePlan Eyepiece
Eyepiece Size for Eye Tube Dia. 23.2mm
Eyepiece Field of View Dia. 18mm
Eyepiece Size for Reticle Dia. 20mm
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.12kg (0.26lbs)
Biological Objective
4X Achromatic Objective
Objective Optical SystemFinite
Objective Optical Magnification4X
Objective TypeAchromatic Objective
Objective Parfocal Distance45mm
Objective for Mechanical Tube Length160mm
Objective Working Distance18mm
Numerical Aperture (N.A.)N.A. 0.10
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 19mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Applied FieldFor BM0901, BM0201, BM1304, BM0504, BM0401, BM0203 Series Microscope, Motic SFC-4/SFC-3/E/SFC-100/SW35 Microscope
10X Achromatic Objective
Objective Optical SystemFinite
Objective Optical Magnification10X
Objective TypeAchromatic Objective
Objective Parfocal Distance45mm
Objective for Mechanical Tube Length160mm
Objective Working Distance7mm
Numerical Aperture (N.A.)N.A. 0.25
Objective Cover Glass Thickness0.17
Objective Immersion MediaDry Objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 21.5mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.07kg (0.15lbs)
Applied FieldFor BM0901, BM0201, BM1304, BM0504, BM0401, BM0203 Series Microscope, Motic SFC-4/SFC-3/E/SFC-100/SW35 Microscope
40X Achromatic Objective
Objective Optical SystemFinite
Objective Optical Magnification40X
Objective TypeAchromatic Objective
Objective Parfocal Distance45mm
Objective for Mechanical Tube Length160mm
Objective Working Distance0.53mm
Numerical Aperture (N.A.)N.A. 0.65
Objective Cover Glass Thickness0.17
Objective Immersion MediaDry Objective
Spring Mounted ObjectiveSpring Mounted objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 21.5mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.08kg (0.18lbs)
Applied FieldFor BM0901, BM0201, BM1304, BM0504, BM0401, BM0203 Series Microscope, Motic SFC-4/SFC-3/E/SFC-100/SW35 Microscope
100X Achromatic Objective
Objective Optical SystemFinite
Objective Optical Magnification100X
Objective TypeAchromatic Objective
Objective Parfocal Distance45mm
Objective for Mechanical Tube Length160mm
Objective Working Distance0.13mm
Numerical Aperture (N.A.)N.A. 1.25
Objective Cover Glass Thickness0.17
Objective Immersion MediaOil Immersion Objective
Spring Mounted ObjectiveSpring Mounted objective
Objective Screw ThreadRMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter Dia. 21.5mm
Surface TreatmentPolished Chrome
MaterialMetal
ColorSilver
Net Weight0.08kg (0.18lbs)
Applied FieldFor BM0901, BM0201, BM1304, BM0504, BM0401, BM0203 Series Microscope, Motic SFC-4/SFC-3/E/SFC-100/SW35 Microscope
Nosepiece
Trinocular Biological Microscope
Inward/Outward NosepieceNosepiece Outward
Number of Holes on NosepieceQuadruple (4) Holes
Nosepiece Switch ModeManual
Nosepiece Screw Thread for ObjectiveRMS Standard (4/5 in. x1/36 in. )
Microscope Stand
Trinocular Biological Microscope
Stand Height255mm
Base TypeIllumination Base
Base ShapeTriangle
Base Dimensions200x207x12mm
Microscope HandleYes
Focus ModeManual
Coarse/Fine Focus TypeCoaxial Coarse/Fine Focus
Focus Distance20mm
Fine Focus Travel DistanceSame as Focus Distance
Coarse Focus Distance per Rotation36mm
Fine Focus Distance per Rotation0.2mm
Fine Focus Minimum Scale2μm
Focusing Knob Tightness AdjustableTightness Adjustable
Microscope Stage
Trinocular Biological Microscope
XY Stage Travel Distance75x50mm
XY-Axis Drive ModeManual
Stage Platform Dimensions140x130mm
Stage Backlight Window Size26x80mm
Stage ScaleX: 100-190mm Y: 0-55mm
Opening Size of Stage Specimen HolderOpening 55-95mm
Microscope Illuminator
Trinocular Biological Microscope
Illumination TypeLED Coaxial Transmitted Light
Transmission LightKohler Illumination
Transmission Light Source TypeLED
Aperture Diaphragm Mounting PositionVertical Illuminator
Aperture Diaphragm Outer Diameter Dia. 49mm
Field Diaphragm Mounting PositionVertical Illuminator
Field Diaphragm Outer Diameter Dia. 59mm
Condenser
Condenser TypeAbbe Condenser
Dry/Oil TypeDry
Applicable Range of Objective4-100X
Condenser AdjustableAdjustable
Condenser Max. Numerical ApertureN.A. 1.25
Condenser Mounting Flange SizeFastening Screw
Condenser Base Travel Distance on Z-Axis10mm
Number of Filter Slots1
Filter Switch TypeEmbedded Type
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.06kg (0.13lbs)
Applied FieldBM0401, BM0203 Series Microscope
0.5X Coupler
Coupler Mount Type for TrinocularFastening Screw
Coupler Mount Size for Trinocular Dia. 23.2mm
Coupler for Microscope TypeCompound Compatible
Coupler Magnification0.5X
C/CS-Mount CouplerC-Mount
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.04kg (0.09lbs)
Applied FieldFor BM04010301 Trinocular Biological Microscope
5M USB 2.0 CMOS Color Digital Camera
Image SensorCMOS
Image Sensor Size1/2.5 in.
Image Sensor Diagonal size7.182mm (0.283 in. )
Pixel Size2.2x2.2μm
Camera Maximum Pixels5.0 Megapixels
Camera Resolution2592x1944
Camera Signal Output PortUSB 2.0
Camera Locking Screw Size1/4-20 in.
Camera Lens MountC-Mount
Transmission Frame Rate5fps @2592x1944, 18fps @1280x960, 60fps @640x480
White BalanceManual/Auto
Sensitivity1.0V/lux-sec@550nm
Gain ControlAdjustable
Exposure ControlManual/Auto
Digital Zoom Function4X
Capture FunctionYes
Image Capture Output FormatBMP/JPEG/PNG/TIFF/GIF/PCX/TGA/PSD/ICO/EMF/WMF/JBG/WBMP/JP2/J2K/TFT
Measurement FunctionYes
Video Output FormatWMV/H264/AVI
LanguageChinese (Simplified)/Chinese (Traditional)/English/French/German/Polish/Russian/Turkey
System RequirementWindows XP/Vista/7/8/10/11/OSX/Linux 2.6 and above
Driver InstallationAuto
APINative C/C++, C#, DirectShow, Twain Control API
Camera Operation Temperature0~50°C (32~122°F)
Camera Operation Humidity30-80%
Camera Housing MaterialMetal
Camera Housing Size58x58x37mm
Camera Housing ColorBlack
Surface TreatmentElectroplating Black
MaterialMetal
ColorBlack
Net Weight0.29kg (0.64lbs)
Coupler Adapter
Conversion Adapter Size Dia. 23.2/27mm
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight0.19kg (0.42lbs)
Applied ToFor BM04010301 Trinocular Biological Microscope
Power Supply
Trinocular Biological Microscope
Input VoltageAC 100-240V 50/60Hz
Power Cord Connector TypeUSA 3 Pins
Power Cable Length1.8m
Environment Requirement
Trinocular Biological Microscope
Operating Temperature0~40°C(32~104°F)
Operating Humidity85%
Other Parameters
Trinocular Biological Microscope
Surface TreatmentSpray Paint
MaterialMetal
ColorWhite
Net Weight4.95kg (10.91lbs)
Dimensions200x207x430mm (7.874x8.150x16.929 in. )
Series
Trinocular Biological Microscope
BM0401BM04010301
Contains
Parts Including
PictureP/NProduct Name
DC291112515M USB 2.0 CMOS Color Digital Camera
BM04010301Trinocular Biological Microscope
Packing
Packaging TypeCarton Packaging
Packaging MaterialCorrugated Carton
Packaging Dimensions(1)33x29x68.5cm (13x11.5x27″)
Inner Packing MaterialPlastic Bag
Ancillary Packaging MaterialsExpanded Polystyrene
Gross Weight7.25kg (15.98lbs)
Minimum Packaging Quantity1pc
Transportation CartonCarton Packaging
Transportation Carton MaterialCorrugated Carton
Transportation Carton Dimensions(1)33x29x68.5cm (13x11.5x27″)
Total Gross Weight of Transportation(kilogram)7.25
Total Gross Weight of Transportation(pound)15.98
Quantity of One Transportation Carton1pc
Microscope Optical Data Sheet
P/N Objective Objective Working Distance Eyepiece
BM04012211   (10X  Dia. 18mm) BM04012511   (16X  Dia. 12mm)
Magnification Field of View(mm) Magnification Field of View(mm)
BM04013211 4X 18mm 40X 4.5mm 64X 3mm
BM04013311 10X 7mm 100X 1.8mm 160X 1.2mm
BM04013511 40X 0.53mm 400X 0.45mm 640X 0.3mm
BM04013811 100X 0.13mm 1000X 0.18mm 1600X 0.12mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /(Objective Optical Magnification*Body Magnification)
3. The Darker background items are Standard items, the white background items are optional items.
Video Microscope Optical Data Sheet
P/N Objective Coupler
BM04014141  (0.5X)
Magnification
BM04013211 4X 2X
BM04013311 10X 5X
BM04013511 40X 20X
BM04013811 100X 50X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification
Camera Image Sensor Specifications
No. Camera Image Sensor Size Camera image Sensor Diagonal
(mm) (inch)
1 1/4 in. 4mm 0.157"
2 1/3 in. 6mm 0.236"
3 1/2.8 in. 6.592mm 0.260"
4 1/2.86 in. 6.592mm 0.260"
5 1/2.7 in. 6.718mm 0.264"
6 1/2.5 in. 7.182mm 0.283"
7 1/2.3 in. 7.7mm 0.303"
8 1/2.33 in. 7.7mm 0.303"
9 1/2 in. 8mm 0.315"
10 1/1.9 in. 8.933mm 0.352"
11 1/1.8 in. 8.933mm 0.352"
12 1/1.7 in. 9.5mm 0.374"
13 2/3 in. 11mm 0.433"
14 1/1.2 in. 12.778mm 0.503"
15 1 in. 16mm 0.629"
16 1/1.1 in. 17.475mm 0.688"
Digital Magnification Data Sheet
Image Sensor Size Image Sensor Diagonal size Monitor
Screen Size (10in) Screen Size (10in) Screen Size (10in) Screen Size (21.5in) Screen Size (21.5in) Screen Size (21.5in) Screen Size (21.5in) Screen Size (21.5in) Screen Size (21.5in)
Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function Digital Zoom Function
1/2.5 in. 7.182mm 35.4 35.4 35.4 76 76 76 76 76 76
1/2 in. 8mm 31.8 31.8 31.8 68.3 68.3 68.3 68.3 68.3 68.3
1/3 in. 6mm 42.3 42.3 42.3 91 91 91 91 91 91
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
Microscope Optical and Digital Magnifications Data Sheet
Objective Coupler Camera Monitor Video Microscope Optical Magnifications Digital Zoom Function Total Magnification Field of View (mm)
PN Magnification PN Magnification Image Sensor Size Image Sensor Diagonal size Screen Size
BM04013211 4X BM04014141 0.5X 1/2 in. 8mm 10in 2X 31.8 63.6X 4mm
BM04013211 4X BM04014141 0.5X 1/2.5 in. 7.182mm 10in 2X 35.4 70.8X 3.59mm
BM04013211 4X BM04014141 0.5X 1/3 in. 6mm 10in 2X 42.3 84.6X 3mm
BM04013211 4X BM04014141 0.5X 1/2 in. 8mm 21.5in 2X 68.3 136.6X 4mm
BM04013211 4X BM04014141 0.5X 1/2.5 in. 7.182mm 21.5in 2X 76 152X 3.59mm
BM04013211 4X BM04014141 0.5X 1/3 in. 6mm 21.5in 2X 91 182X 3mm
BM04013311 10X BM04014141 0.5X 1/2 in. 8mm 10in 5X 31.8 159X 1.6mm
BM04013311 10X BM04014141 0.5X 1/2.5 in. 7.182mm 10in 5X 35.4 177X 1.44mm
BM04013311 10X BM04014141 0.5X 1/3 in. 6mm 10in 5X 42.3 211.5X 1.2mm
BM04013311 10X BM04014141 0.5X 1/2 in. 8mm 21.5in 5X 68.3 341.5X 1.6mm
BM04013311 10X BM04014141 0.5X 1/2.5 in. 7.182mm 21.5in 5X 76 380X 1.44mm
BM04013311 10X BM04014141 0.5X 1/3 in. 6mm 21.5in 5X 91 455X 1.2mm
BM04013511 40X BM04014141 0.5X 1/2 in. 8mm 10in 20X 31.8 636X 0.4mm
BM04013511 40X BM04014141 0.5X 1/2.5 in. 7.182mm 10in 20X 35.4 708X 0.36mm
BM04013511 40X BM04014141 0.5X 1/3 in. 6mm 10in 20X 42.3 846X 0.3mm
BM04013511 40X BM04014141 0.5X 1/2 in. 8mm 21.5in 20X 68.3 1366X 0.4mm
BM04013511 40X BM04014141 0.5X 1/2.5 in. 7.182mm 21.5in 20X 76 1520X 0.36mm
BM04013511 40X BM04014141 0.5X 1/3 in. 6mm 21.5in 20X 91 1820X 0.3mm
BM04013811 100X BM04014141 0.5X 1/2 in. 8mm 10in 50X 31.8 1590X 0.16mm
BM04013811 100X BM04014141 0.5X 1/2.5 in. 7.182mm 10in 50X 35.4 1770X 0.14mm
BM04013811 100X BM04014141 0.5X 1/3 in. 6mm 10in 50X 42.3 2115X 0.12mm
BM04013811 100X BM04014141 0.5X 1/2 in. 8mm 21.5in 50X 68.3 3415X 0.16mm
BM04013811 100X BM04014141 0.5X 1/2.5 in. 7.182mm 21.5in 50X 76 3800X 0.14mm
BM04013811 100X BM04014141 0.5X 1/3 in. 6mm 21.5in 50X 91 4550X 0.12mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

Recently viewed products
