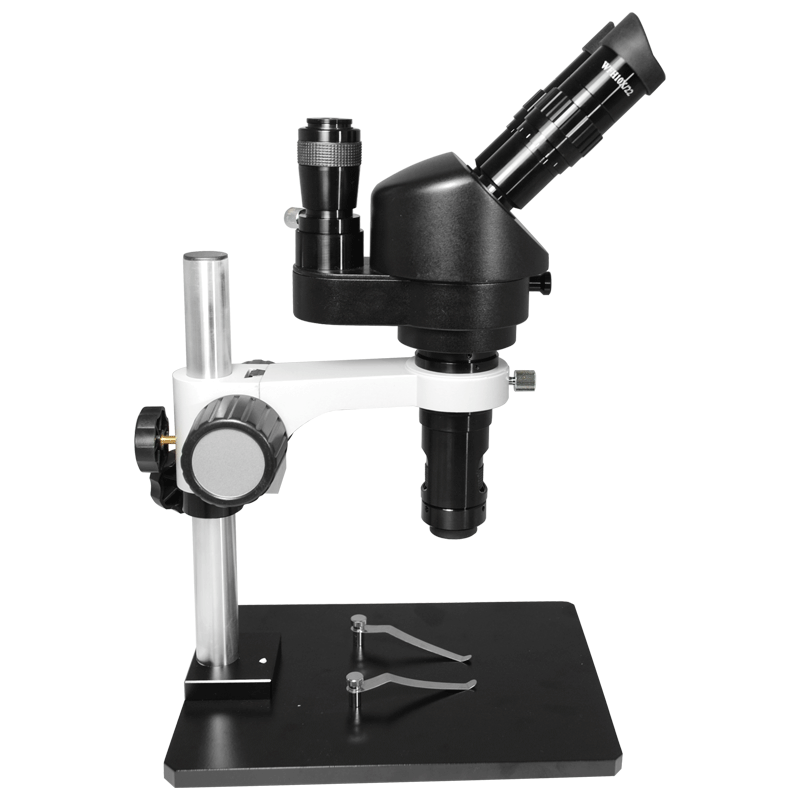

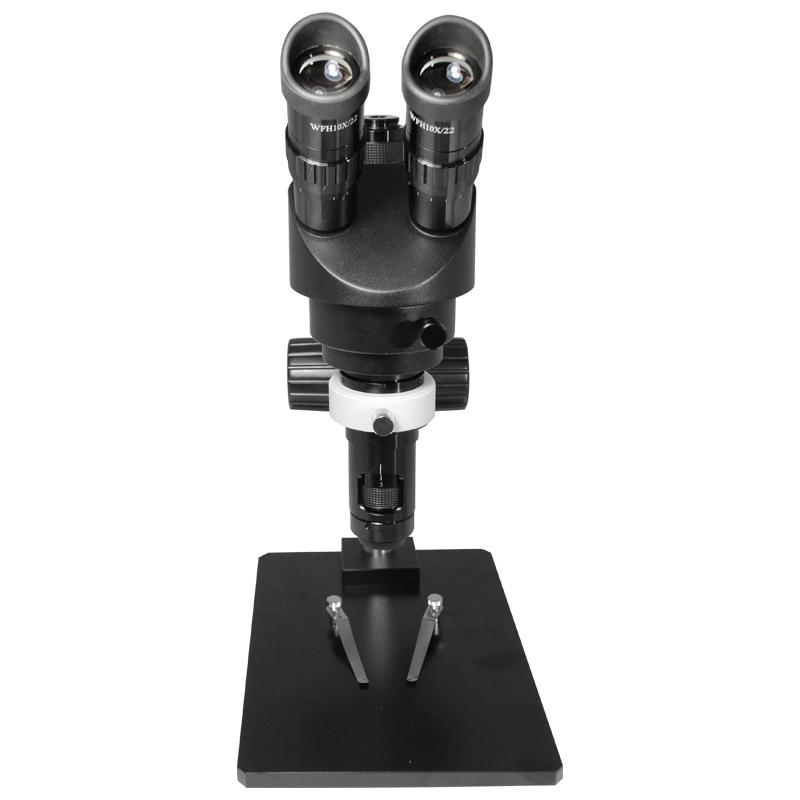

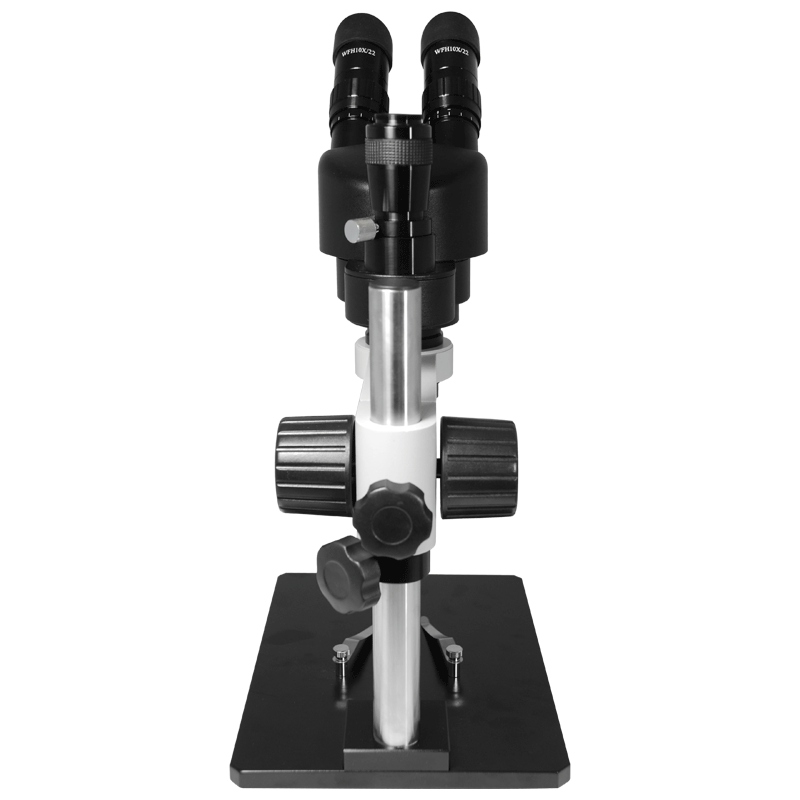

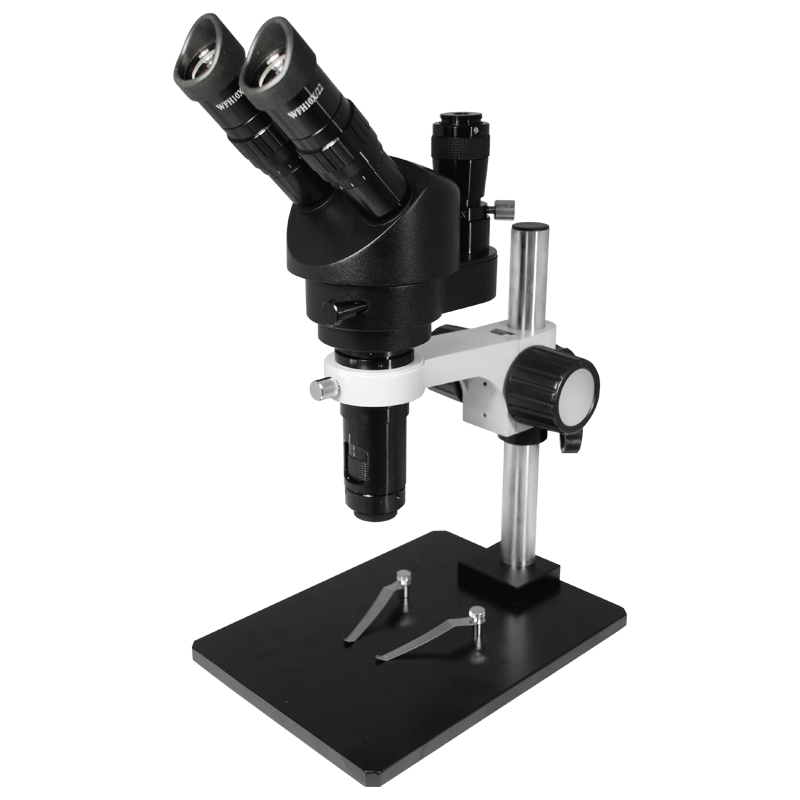

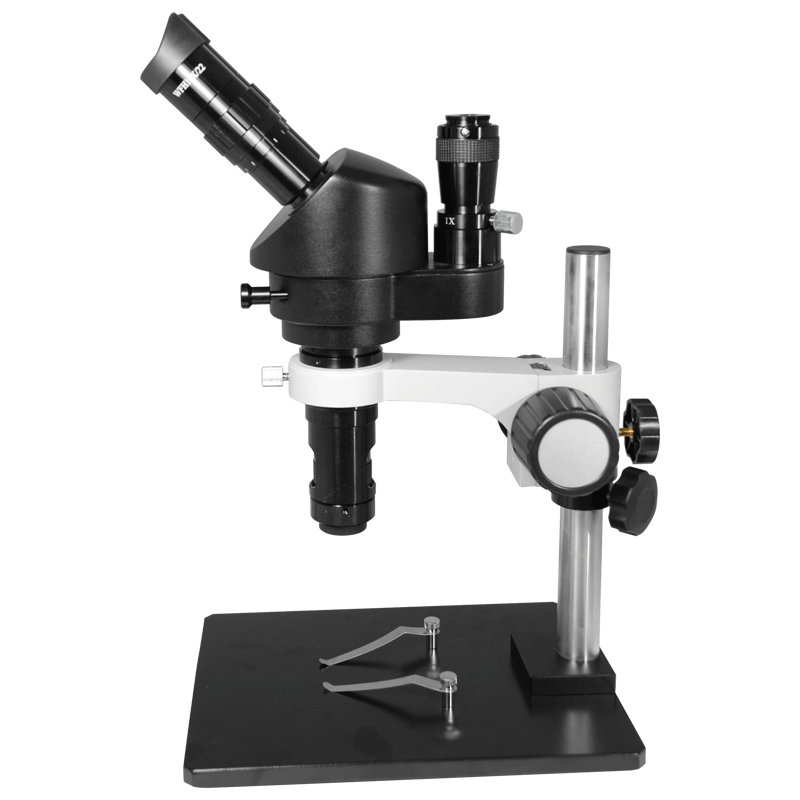

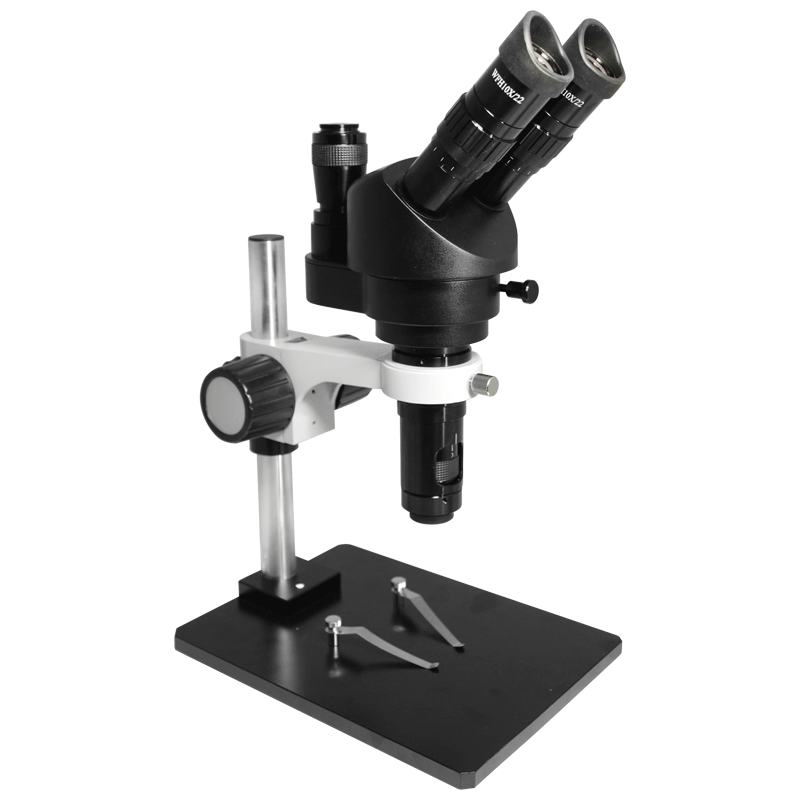

15X-100X Industrial Inspection Video Zoom Microscope, Trinocular, Post Stand, SKU MZ08500131, three quarter front view

15X-100X Industrial Inspection Video Zoom Microscope, Trinocular, Post Stand

Name: 15X-100X Industrial Inspection Video Zoom Microscope, Trinocular, Post Stand
Brand: BoliOptics
SKU: MZ08500131
Price: 2853.98 USD
Availability: InStock

$2,853.98

Shipping calculated at checkout.

SKU: MZ08500131

Condition: New
Warranty: 5/1 Years
Certification:

Technical Overview
Infinite. Total Magnification: 15-100X. 10X Eyepiece. 1X Achromatic Objective. Standard Coupler: 1X. Zoom Ratio: 1:6.7. Body Mounting Size for Stand: Dia. 45mm. Eye Tube Angle: 45°. Eyepiece Field of View: Dia. 22mm. Post Stand.

Low Stock (1)

Product variants

15X-100X Industrial Inspection Video Zoom Microscope, Trinocular, Post Stand

$2,853.98

Order before 12pm PT for same day shipping

5/1 Years Warranty Policy

Return Policy

*Same day shipping is only for items that are in stock

BoliOptics offers World Wide Shipping (We are Based in California, USA)

Shipping Methods
We ship packages using UPS and FedEx. Your order will be shipped per your specified shipping method at check out.

Expedited Shipping
For all expedited shipping services, such as Overnight, Next Day, etc - While we will do our part to ensure the packages are received by the shipping carriers to meet the shipping cut off times, please note that once the package leaves our warehouse, we are no longer responsible for the package. The shipping carrier will be responsible for delivering your package.

Shipping Costs
Your order will be shipped per your selected shipping method, and the shipping fee will be added to your order/invoice. Shipping costs are provided by the shipping carriers and calculated based on shipping location, product dimensions and weight.

Using Your Own Shipping Account
Please input your shipping account number at checkout, if you wish for us to charge the shipping fee to your shipping account. Otherwise, we will ship the product using our shipping account and charge the shipping fee to your invoice.

You may require us to insure packages when shipping under your shipping account. Please note this on your Purchase Order. If packages are shipped using your Shipping Account, and you choose to not insure the packages, or there are no insurance instructions stated on the PO, it is not the responsibility of BoliOptics to pay for any packages that are stolen, or lost/delivered wrong/damaged in transit by the Shipping Carrier.

International Shipping
We offer world wide international shipping. Please specify your desired shipping service at checkout.

SHIPPING & DELIVERY FAQs

When will my order ship?
If the product you purchased is in stock, orders placed online before 12PM (Noon) PST will be shipped on the same business day. Orders placed after 12PM (Noon) will be shipped the following business day.

To ensure your order is shipped as soon as possible and successfully, please check that your shipping address is correct.

Orders placed on the weekend (Saturday and Sunday) and Federal Holidays will be processed on the following business day.

When will Pre-Orders ship?
To get an expected shipping date for pre-orders, please send an email to sales@bolioptics.com

How can I track my order?
We will e-mail you an Order Confirmation once the order has been processed, along with your tracking number.
You can also log into 'My Account' to check the status of orders placed online.

How can I cancel my order before it ships?
If you need to cancel your order, please send an email to sales@bolioptics.com as soon as possible with the Subject Line: CANCEL ORDER # (Your Order #).

Once your order has shipped, meaning you will have received an email with a Status Update that your order has Shipped along with your tracking number, we are unable to cancel your order. You may start a Return once you receive the package.

BoliOptics is not responsible for any damages or delays that may occur while packages are in transit with the shipping carriers. We are not responsible for packages that are lost or delivered to the wrong address by the shipping carrier. We are not responsible for stolen packages.

You are responsible for filing any claims with Shipping Carriers if the order was shipped using your account.

Industry Leading Warranties

BoliOptics microscopes and accessories are manufactured under the strict guidelines established by ISO 9001, ISO13485, ISO14001, or CE (marked per product).

Warranty is only offered for products purchased directly from BoliOptics.

BoliOptics products are warranted against manufacturer’s defects in material and workmanship from the original date of purchase, for the following years:

Lifetime Warranty
Designated products marked lifetime warranty.

5 Year Warranty
Microscopes (except video and digital microscopes) come with a five (5) year factory warranty against manufacturing defects.

5/1 Year Warranty
Products with 5/1 Year Warranty means that the hardware of the microscope is under 5 year warranty, and the electrical and lighting components are under 1 year warranty.

1 Year Warranty
Includes video microscopes, digital microscopes, electrical and electronic products such as light sources, cameras, software, monitors, and electronic components.
Microscope accessories (such as microscope cameras and illuminators) come with a one (1) year warranty, except when specified in the description.

Warranty does not apply for consumable accessories and parts such as bulbs, batteries, fuses, cords, optical components or any add-on accessories such as mechanical specimen holders that are not built into the microscope stage as an integral part of the original manufacture, etc.

Warranty does not cover ordinary wear and tear or damage caused by improper use or accidents (drops).
Warranty does not cover products that have become inoperable due to lack of maintenance.
Warranty is void when products are disassembled, structural parts were opened up, removed, unscrewed, tampered with, or broken during use or in the user's possession.
Warranty is void when product QR Codes or Barcode Stickers containing the Product's Serial Number are removed from the product.

Customers are responsible for round-way shipping for warranty services.

*Please note that we do not perform repairs. If you would like a repair, we can recommend you to third party microscope service and repair companies.*

Warranty Instructions

Please see the Reasons for Warranty:

A. If the reason is due to ordinary wear and tear, damage caused by improper use or accidents (drops), damage due to lack of maintenance, or that the product was disassembled, structural parts were opened up, removed, unscrewed, tampered with, or that the product was broken during use or in the user's possession, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

B. If the time frame is outside of the warranty period, the product is no longer under warranty.
Email us at sales@bolioptics.com to see whether you can purchase parts. If parts are not available, we recommend you to purchase a new unit.

C. If the reason is due to manufacturing defects, and the product is within the warranty period,
Email us at sales@bolioptics.com with the following details:
- Your name
- The SKU # of the product
- Photos of the product from the front, sides, and back
- Photo of the serial number on the product, if present

BoliOptics offers a thirty (30) day return window beginning on the date of your purchase.

To receive a 100% refund, items must be returned in New and Original Condition, with all parts, accessories, and original product packaging included.

Products missing the original packaging or instruction manuals are subject to a 20% restocking fee.
Products missing parts or accessories are subject to a higher restocking fee.
Products damaged during use (scratched, chipped, parts broken), disassembled from the original manufacturing or tampered with, are not accepted for returns or refunds. Our return policy does not cover ordinary wear and tear or damage caused by improper use or accidents.
Microscope slides, coverslips, and eye guards are non-returnable.
Items marked "Final Sale" are not eligible for return or refund due to change of mind. We are committed to ensuring the quality of all our products. If you receive a final sale item that has an issue, please contact us as soon as possible, and we will resolve any issue on a case by case basis.

When packaging the return, protect the item and original packaging.

We recommend using the original packaging materials to ensure the product is safe during return shipping.
If you do not have the original packaging materials, and there is extra room in the box, fill the extra space with padding (paper or shipping peanuts) so the product won't move around during transportation.

Customers are responsible for the return shipping label cost, if the product was not defective.

It can take up to 7 business days for an item to reach us once you ship it. Once we receive the item, it takes 5-7 business days to process the return and refund.

If you have any questions, please an email us at sales@bolioptics.com

To Start a Return

1. Sign in to your account or Create An Account.

2. Once you are signed in to your account, click the "Start a Return" link below to submit your return request.

3. Once your return request is approved, we will email you with your Return Merchandise Authorization Number (RMA#) and return instructions.

Product Description

Technical Specifications

MZ08500131 Trinocular Video Microscope

Optical System Specifications

Optical System	Infinite
System Optical Magnification	15-100X
Trinocular Optical Magnification	1.5-10X
Total Magnification	15-100X
Standard Eyepiece	10X Eyepiece
Standard Objective	1X Achromatic Objective
Standard Coupler	1X
System Field of View	Dia. 2.2-14.6mm
System Working Distance	82mm

Video Monocular Zoom Body

Trinocular Zoom Body
Body Optical System	Infinite
Body Magnification	15-100X
Zoom Range	1.5-10X
Zoom Ratio	1:6.7
Zoom Operating Mode	With the Zoom Ring
Body Mounting Size for Stand	Dia. 45mm
Body Mount Type for Coupler	Fastening Screw
Body Mount Size for Coupler	Dia. 23mm
Eye Tube Adjustment Mode	Compensating
Eye Tube Angle	45°
Erect/Inverted Image	Erect image
Interpupillary Adjustment	55-68mm
Eye Tube Inner Diameter	Dia. 30mm
Eye Tube Diopter Adjustable	±5°
Image Port Switch Mode	0/100 Switch Trinocular
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	1.52kg (3.35lbs)

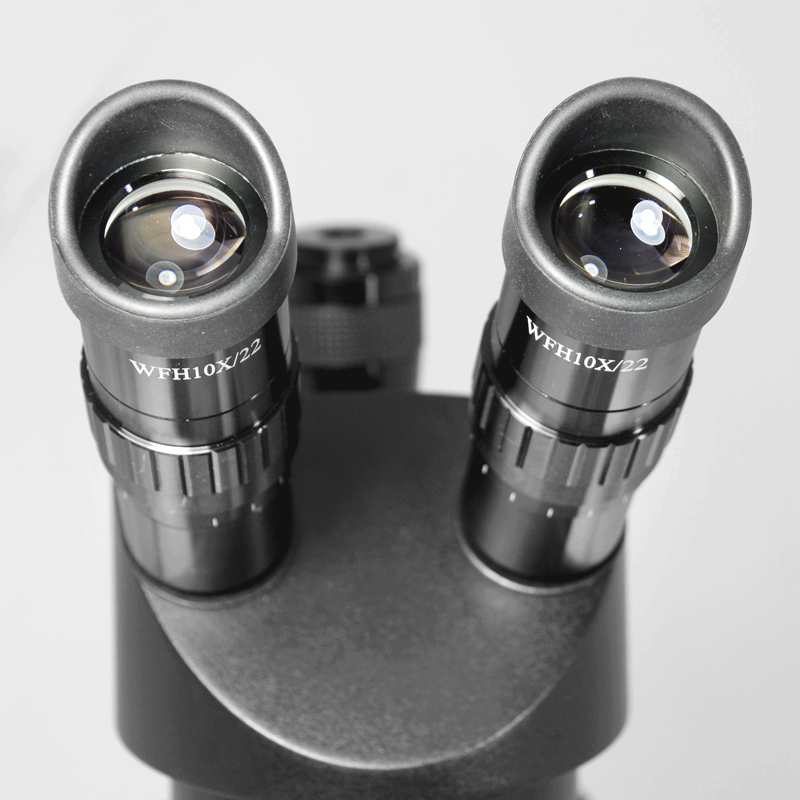

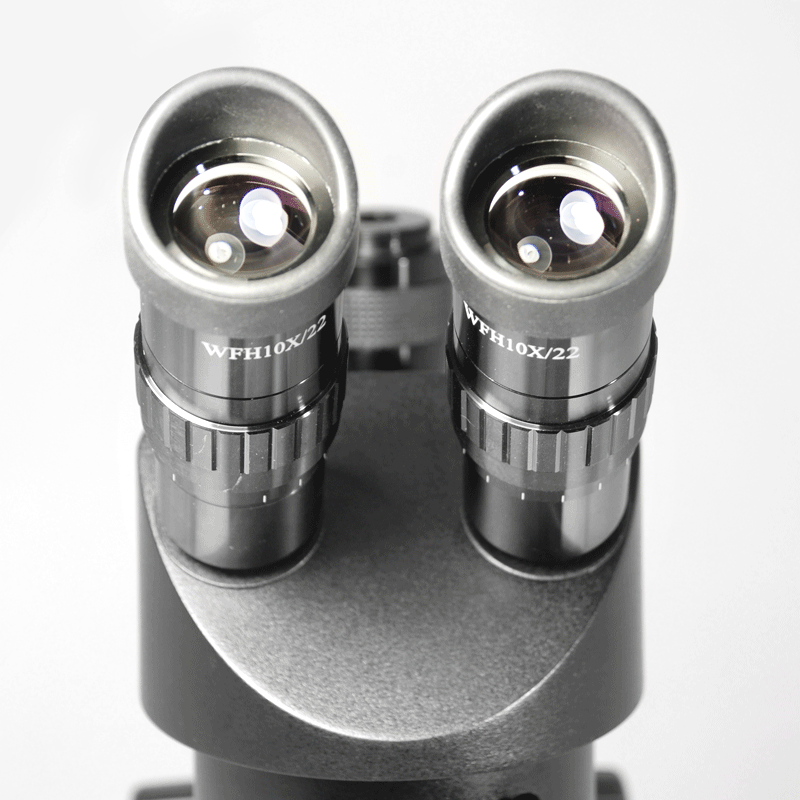

Eyepiece

10X High Eyepoint Eyepiece (Pair)
Eyepiece Type	Standard Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eye Tube	Dia. 30mm
Eyepiece Field of View	Dia. 22mm
Eyepoint Type	High Eyepoint Eyepiece
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.12kg (0.26lbs)

Monocular Video Microscope Objective

1X Objective
Objective Optical System	Infinite
Objective Optical Magnification	1X
Objective Type	Achromatic Objective
Objective Working Distance	82mm
Objective Screw Thread	RMS Standard (4/5 in. x1/36 in. )
Objective Outer Diameter	Dia. 25mm
Barlow Lens	Yes
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	0.04kg (0.09lbs)
Applied Field	For MZ0801 Series Microscope

Post Stand

45mm Post Stand
Stand Type	Post Stand
Holder Adapter Type	Dia. 45mm Scope Holder
Vertical Post Height	255mm
Vertical Post Diameter	Dia. 25mm
Base Type	Plate Base
Base Shape	Rectangle
Base Dimensions	180x240x9mm
Focus Mode	Manual
Focus Distance	48mm
Coarse Focus Distance per Rotation	20mm
Center Distance from Hole to Scope Holder	140mm
Surface Treatment	Spray Paint
Material	Metal
Color	Black
Net Weight	4.55kg (10.03lbs)
Dimensions	180x240x264mm (7.087x9.449x10.394 in. )

Coupler/C-mount Adapter

1X Coupler
Coupler Mount Type for Body	Fastening Screw
Coupler Mount Size for Body	Dia. 23.2mm
Adjustable Coupler	Adjustable
Coupler Magnification	1X
C/CS-Mount Coupler	C-Mount
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Applied Field	For MZ08021101 Video Zoom Body
1X Coupler
Coupler Mount Type for Trinocular	Fastening Screw
Coupler Mount Size for Trinocular	Dia. 23.2mm
Adjustable Coupler	Adjustable
Coupler for Microscope Type	Stereo Compatible
Coupler Magnification	1X
C/CS-Mount Coupler	C-Mount
Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Applied Field	For SZ08011131, SZ08011132 Trinocular Zoom Body

Other Parameters

Surface Treatment	Electroplating Black
Material	Metal
Color	Black
Net Weight	6.35kg (14.00lbs)
Dimensions	180x240x264mm (7.087x9.449x10.394 in. )

Series

MZ0850

MZ08500131

Instruction Manual
MZ0850 Video Zoom Microscope Instruction Manual-English.pdf

Contains

Parts Including

Picture	P/N	Product Name
	PZ08013201	10X High Eyepoint Eyepiece (Pair)
	MZ08501131	Trinocular Zoom Body
	MZ08014411	1X Objective
	ST08011401	45mm Post Stand
	MZ08026151	1X Coupler

Desiccant Bag

1 Bag

Packing
Packaging Type	Carton Packaging
Packaging Material	Corrugated Carton
Packaging Dimensions(1)	36x33x37.5cm (14.173x12.992x14.764″)
Inner Packing Material	Plastic Bag
Ancillary Packaging Materials	Expanded Polystyrene
Gross Weight	7.33kg (16.16lbs)
Minimum Packaging Quantity	1pc
Transportation Carton	Carton Packaging
Transportation Carton Material	Corrugated Carton
Transportation Carton Dimensions(1)	36x33x37.5cm (14.173x12.992x14.764″)
Total Gross Weight of Transportation(kilogram)	7.33
Total Gross Weight of Transportation(pound)	16.16
Quantity of One Transportation Carton	1pc

Microscope Optical Data Sheet
P/N	Objective	Objective Working Distance	Eyepiece
			PZ08013201 (10X Dia. 22mm)		SZ08013411 (15X Dia. 17mm)		SZ08013611 (20X Dia. 14mm)
			Magnification	Field of View(mm)	Magnification	Field of View(mm)	Magnification	Field of View(mm)
MZ08014111	0.3X	293mm	4.5-30X	7.33-48.89mm	6.75-45X	5.67-37.78mm	9-60X	4.67-31.11mm
MZ08014211	0.5X	175mm	7.5-50X	4.4-29.33mm	11.25-75X	3.4-22.67mm	15-100X	2.8-18.67mm
MZ08014311	0.75X	117mm	11.25-75X	2.93-19.56mm	16.88-112.5X	2.27-15.11mm	22.5-150X	1.87-12.44mm
MZ08014411	1X	82mm	15-100X	2.2-14.67mm	22.5-150X	1.7-11.33mm	30-200X	1.4-9.33mm
MZ08014511	1.5X	54mm	22.5-150X	1.47-9.78mm	33.75-225X	1.13-7.56mm	45-300X	0.93-6.22mm
MZ08014611	2X	35mm	30-200X	1.1-7.33mm	45-300X	0.85-5.67mm	60-400X	0.7-4.67mm
MZ08014731	4.5X	16mm	67.5-450X	0.49-3.26mm	101.25-675X	0.38-2.52mm	135-900X	0.31-2.07mm
1. Magnification=Objective Optical Magnification * Body Magnification * Eyepiece Optical Magnification
2. Field of View=Eyepiece Field of View /（Objective Optical Magnification*Body Magnification）
3. The Darker background items are Standard items, the white background items are optional items.

Video Microscope Optical Data Sheet
P/N	Objective	Coupler
		MZ08026151 (1X)	SZ08016151 (1X)
		Magnification	Magnification
MZ08014111	0.3X	0.45-3X	0.45-3X
MZ08014211	0.5X	0.75-5X	0.75-5X
MZ08014311	0.75X	1.12-7.5X	1.12-7.5X
MZ08014411	1X	1.5-10X	1.5-10X
MZ08014511	1.5X	2.25-15X	2.25-15X
MZ08014611	2X	3-20X	3-20X
MZ08014731	4.5X	6.75-45X	6.75-45X
1. Magnification=Objective Optical Magnification * Body Magnification * Coupler Magnification

Camera Image Sensor Specifications
No.	Camera Image Sensor Size	Camera image Sensor Diagonal
No.	Camera Image Sensor Size	（mm）	（inch）
1	1/4 in.	4mm	0.157"
2	1/3 in.	6mm	0.236"
3	1/2.8 in.	6.592mm	0.260"
4	1/2.86 in.	6.592mm	0.260"
5	1/2.7 in.	6.718mm	0.264"
6	1/2.5 in.	7.182mm	0.283"
7	1/2.3 in.	7.7mm	0.303"
8	1/2.33 in.	7.7mm	0.303"
9	1/2 in.	8mm	0.315"
10	1/1.9 in.	8.933mm	0.352"
11	1/1.8 in.	8.933mm	0.352"
12	1/1.7 in.	9.5mm	0.374"
13	2/3 in.	11mm	0.433"
14	1/1.2 in.	12.778mm	0.503"
15	1 in.	16mm	0.629"
16	1/1.1 in.	17.475mm	0.688"

Digital Magnification Data Sheet
Image Sensor Size	Image Sensor Diagonal size	Monitor
		Screen Size (24in)
		Digital Zoom Function
1/3 in.	6mm	101.6
1. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size

Microscope Optical and Digital Magnifications Data Sheet
Objective		Coupler		Camera		Monitor	Video Microscope Optical Magnifications	Digital Zoom Function	Total Magnification	Field of View (mm)
PN	Magnification	PN	Magnification	Image Sensor Size	Image Sensor Diagonal size	Screen Size	Video Microscope Optical Magnifications	Digital Zoom Function	Total Magnification	Field of View (mm)
MZ08014111	0.3X	MZ08026151	1X	1/3 in.	6mm	24in	0.45-3X	101.6	45.72-304.8X	2-13.33mm
MZ08014111	0.3X	SZ08016151	1X	1/3 in.	6mm	24in	0.45-3X	101.6	45.72-304.8X	2-13.33mm
MZ08014211	0.5X	MZ08026151	1X	1/3 in.	6mm	24in	0.75-5X	101.6	76.2-508X	1.2-8mm
MZ08014211	0.5X	SZ08016151	1X	1/3 in.	6mm	24in	0.75-5X	101.6	76.2-508X	1.2-8mm
MZ08014311	0.75X	MZ08026151	1X	1/3 in.	6mm	24in	1.12-7.5X	101.6	113.79-762X	0.8-5.36mm
MZ08014311	0.75X	SZ08016151	1X	1/3 in.	6mm	24in	1.12-7.5X	101.6	113.79-762X	0.8-5.36mm
MZ08014411	1X	MZ08026151	1X	1/3 in.	6mm	24in	1.5-10X	101.6	152.4-1016X	0.6-4mm
MZ08014411	1X	SZ08016151	1X	1/3 in.	6mm	24in	1.5-10X	101.6	152.4-1016X	0.6-4mm
MZ08014511	1.5X	MZ08026151	1X	1/3 in.	6mm	24in	2.25-15X	101.6	228.6-1524X	0.4-2.67mm
MZ08014511	1.5X	SZ08016151	1X	1/3 in.	6mm	24in	2.25-15X	101.6	228.6-1524X	0.4-2.67mm
MZ08014611	2X	MZ08026151	1X	1/3 in.	6mm	24in	3-20X	101.6	304.8-2032X	0.3-2mm
MZ08014611	2X	SZ08016151	1X	1/3 in.	6mm	24in	3-20X	101.6	304.8-2032X	0.3-2mm
MZ08014731	4.5X	MZ08026151	1X	1/3 in.	6mm	24in	6.75-45X	101.6	685.8-4572X	0.13-0.89mm
MZ08014731	4.5X	SZ08016151	1X	1/3 in.	6mm	24in	6.75-45X	101.6	685.8-4572X	0.13-0.89mm
1. Video Microscope Optical Magnifications=Objective Optical Magnification * Body Magnification * Coupler Magnification
2. Digital Zoom Function= (Screen Size * 25.4) / Image Sensor Diagonal size
3. Total Magnification= Video Microscope Optical Magnifications * (Screen Size * 25.4) / Image Sensor Diagonal size
4. Field of View (mm)= Image Sensor Diagonal size / Video Microscope Optical Magnifications

15X-100X Industrial Inspection Video Zoom Microscope, Trinocular, Post Stand

Recently viewed products
